Heater Assembly: Installation

To install, reverse removal procedure. Ensure control cables are correctly routed. See Fig 1 . Refill radiator, and reconnect negative battery cable.

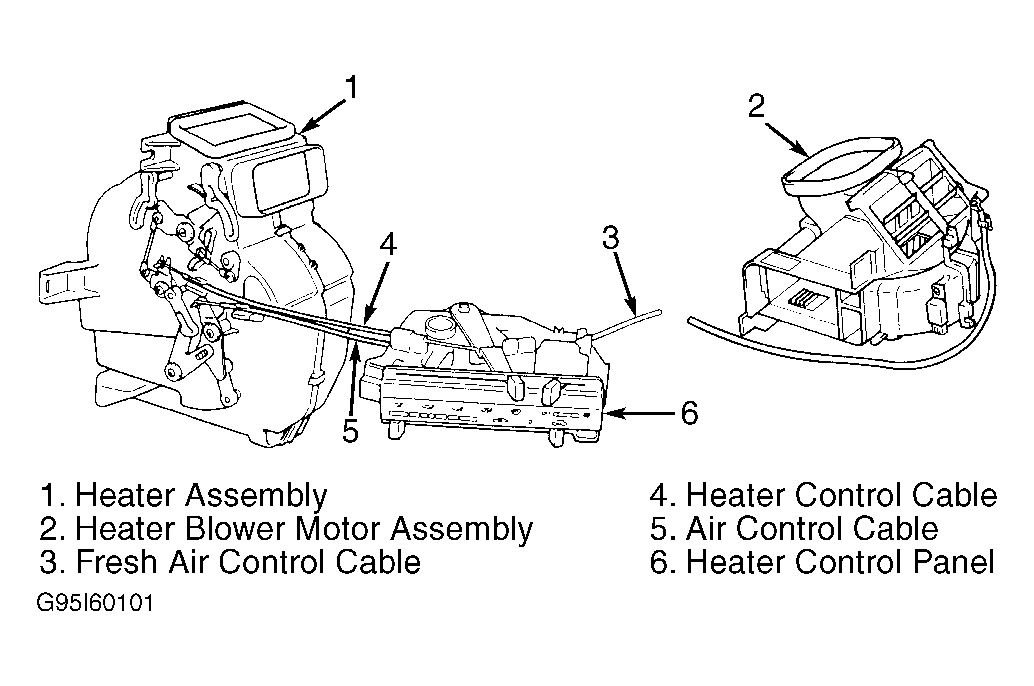

Fig 1: Checking Control Cable Routing

Courtesy of SUZUKI OF AMERICA CORP.
