Modification Of Abs Control Module (TS 5-01 06076(R))

Publication date: 1996-06-07
Reference number: TS 5-01 06076(R)
Supersedes refnos: TS 5-01 02096, TS 5-01 041296(R), TS 5-01 06076

MODIFICATION OF ABS CONTROL MODULE

TECHNICAL SERVICE BULLETIN

Reference Number(s): , , , TS 5-01 06076(R), Date of Issue: June 7, 1996
Superceded Bulletin(s): TS 5-01 02096, Date of Issue: February, 1996, TS 5-01 041296(R), Date of Issue: April, 1996, TS 5-01 06076, Date of Issue: June, 1996

MODIFICATION OF ANTILOCK BRAKE SYSTEM (ABS) CONTROL MODULE

Model(s): 1995-96 Suzuki Esteem

Section Title: Steering, Brakes, and Suspension

Division: Automotive

Category: Technical

Bulletin No.: TS 5-01 06076(R)

Date: June 7, 1996

NOTE: This bulletin supersedes Technical Bulletin number TS5-01 06076, TS 5-01 041296(R), and TS 5-01 02096

APPLICABLE VEHICLES

Suzuki Esteem, November 1995 production and later.

Efffective VIN Number: JS2GB31S_T5103918-

BULLETIN ILLUSTRATION LIST

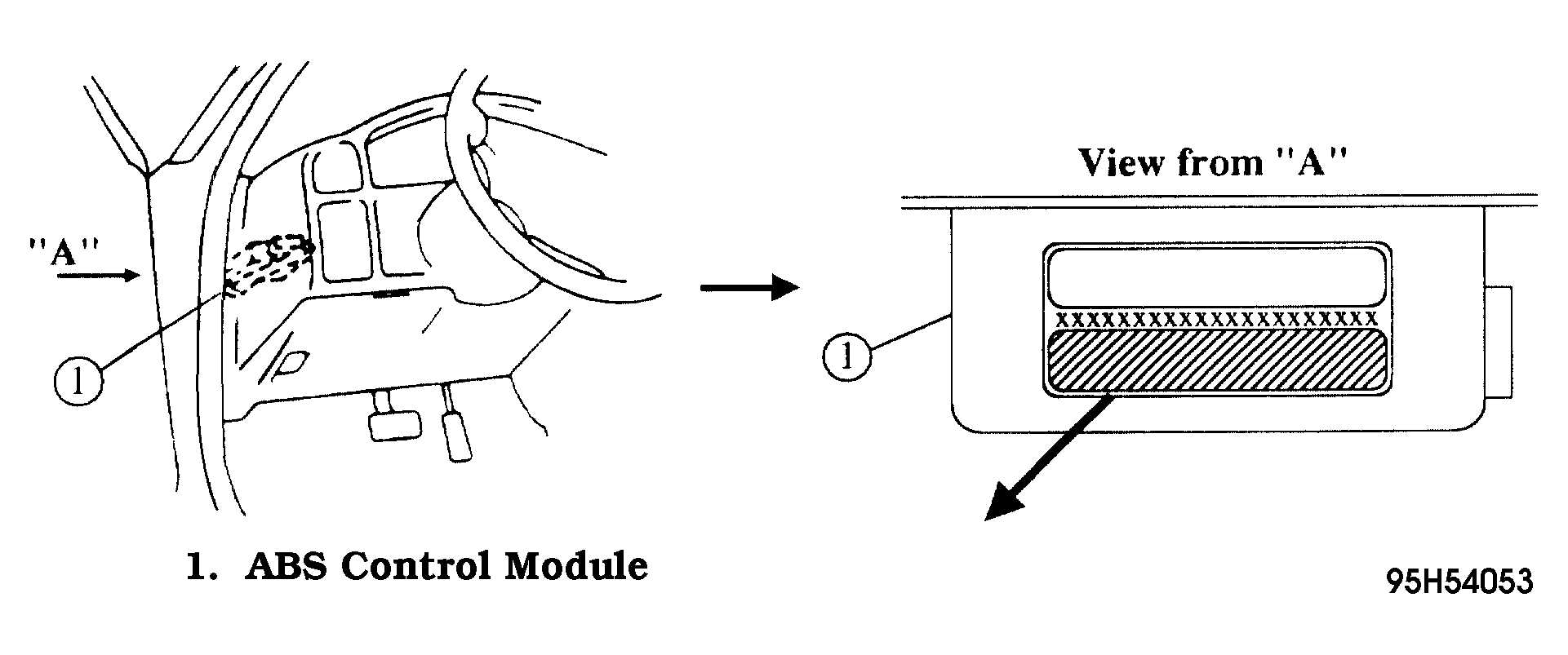

Fig 1: ABS Control Module Identification

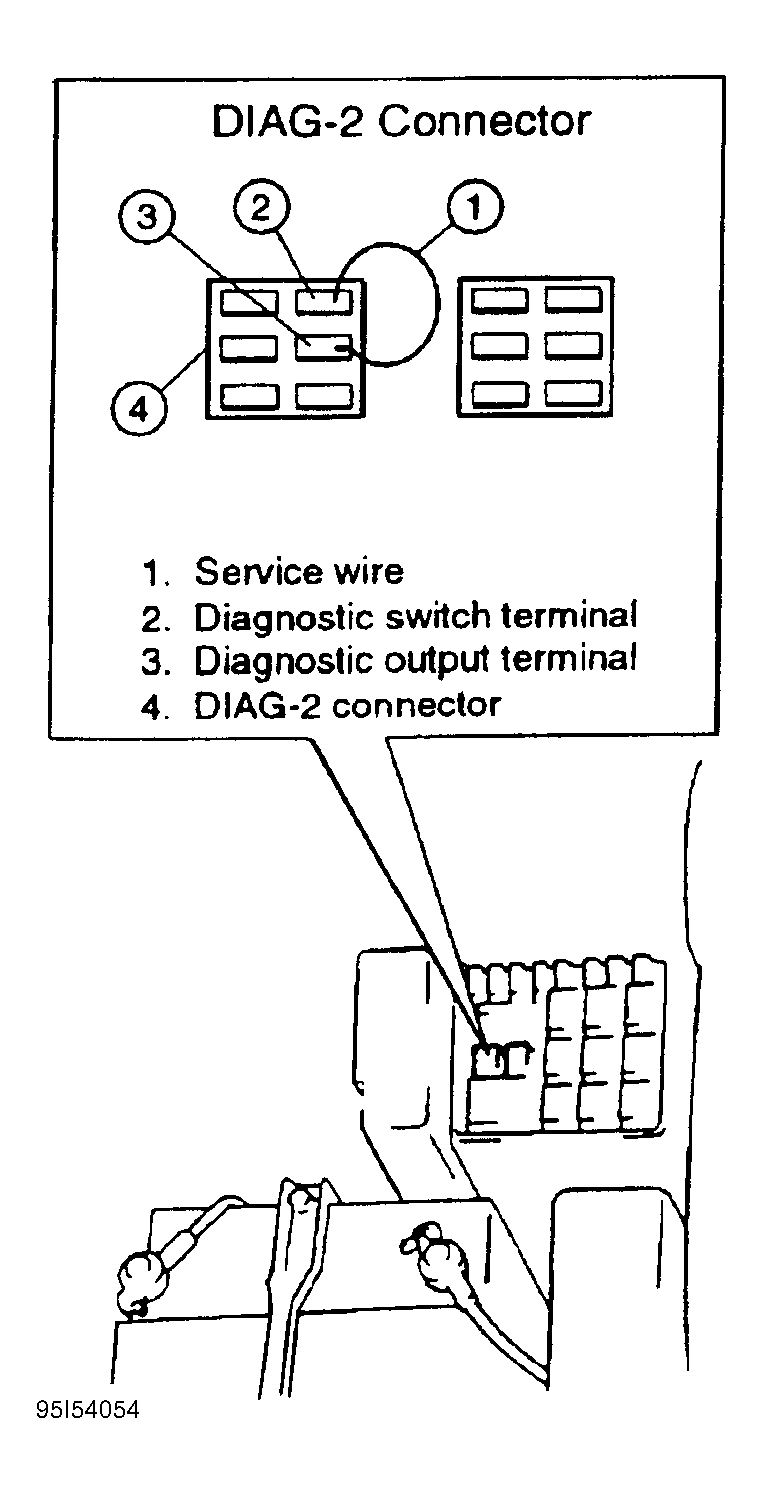

Fig 2: DIAG-2 Connector Identification

CONDITION

Modification of ABS controller.

CAUSE

Factory modification to standardize control modules.

CORRECTION

When replacing the ABS controller, please use the information as listed in this bulletin.

This bulletin is to inform you of the modification of the ABS control module which has been carried out since November 1995 production. This modification was made to standardize ABS control modules. The late type controller will require a new procedure to clear the Diagnostic Trouble Codes (DTC). Please see SERVICE PROCEDURES for an explanation of this procedure.

SERVICE INFORMATION

EARLY AND LATE TYPE IDENTIFICATION

The ABS control module can be identified by the part number located on the side of the controller, as shown. See Fig 1 .

For part number, refer to PARTS SUPPLY DATA TABLE.

PARTS INFORMATION

PARTS SUPPLY DATA

Part Name	Part No.	No.	Supply Of Spare Parts	Interchange
ABS Control Module - Early	33940-60G00	1	Late only after early stock is depleted	Early to Late No
ABS Control Module - Late	33940-60G01	1	Late only after early stock is depleted	Late to Early Yes

SERVICE PROCEDURE

DIAGNOSTIC TROUBLE CODE (DTC) CLEARANCE

WARNING: To avoid the possibility of an accident when performing a road test, please observe the following precautions: - Perform the road test in a safe area where traffic is sparse. - Always test the vehicle on a level road. - Always use two people. One to drive the vehicle and one to operate the Tech-1.

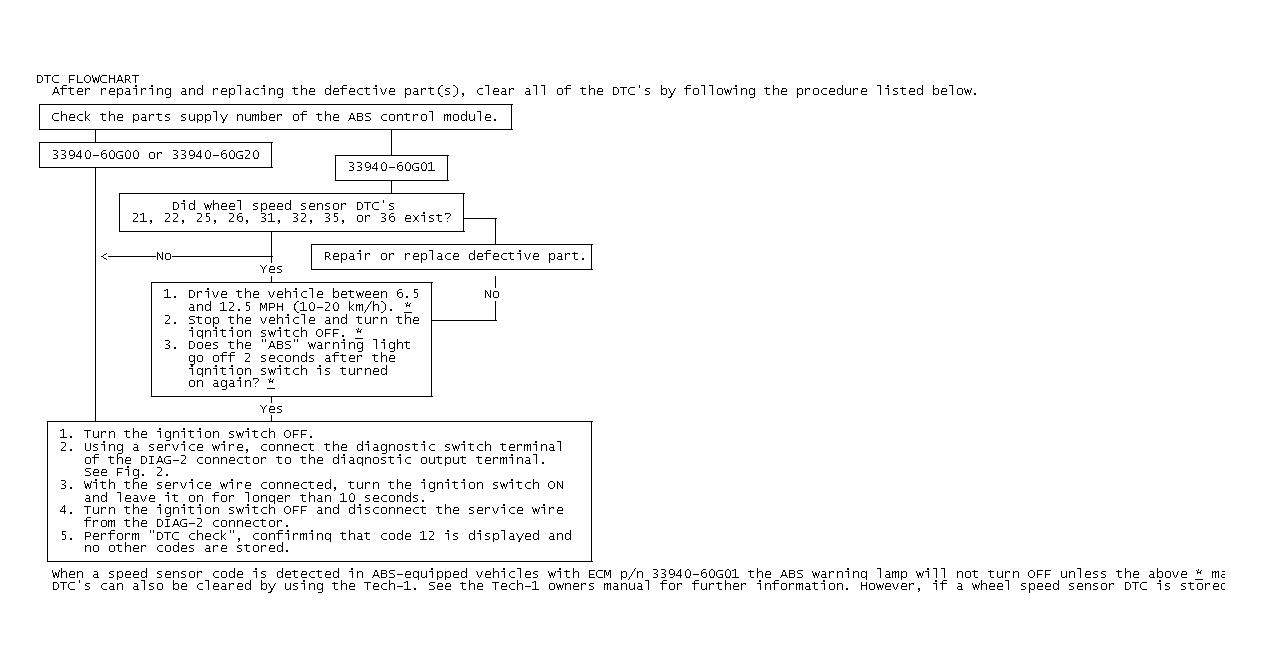

Fig 3: DTC FLOWCHART
