Input Shaft Assembly: Disassembly

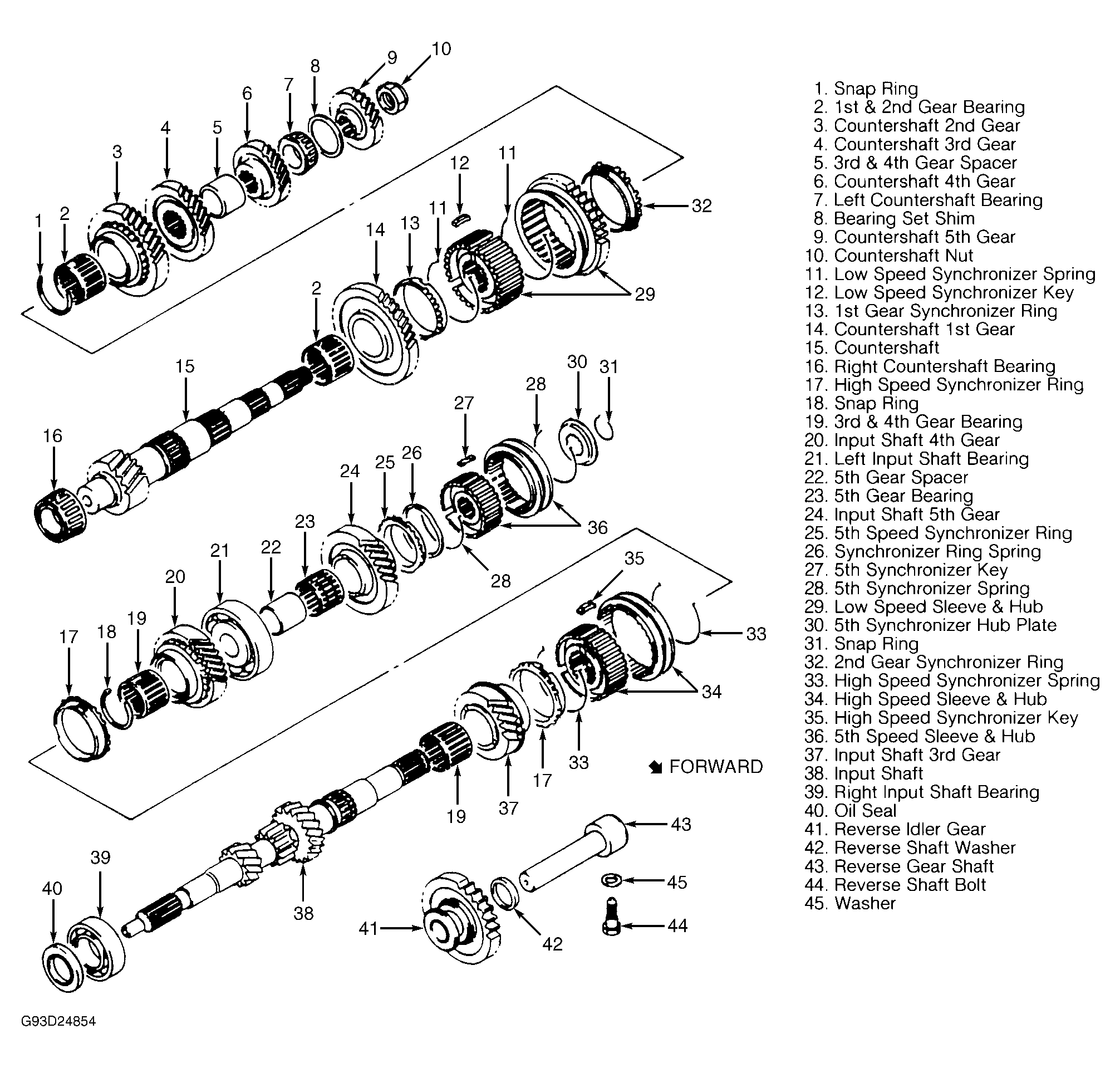

  1. Using a split plate and press, remove RH bearing. See Figure. Press off 5th gear spacer, LH bearing and 4th gear as an assembly. Remove 3rd and 4th gear needle bearing, high speed synchronizer ring and snap ring.
  2. Using a split plate (flat side up) and press, remove high speed synchronizer sleeve, hub assembly and 3rd gear. Remove 3rd and 4th gear needle bearing, synchronizer sleeve and hub assembly.
