A/C CORRECTED TORQUE SPECIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 7-08 01045, Date of Issue:

1995 SUZUKI SWIFT A/C CORRECTED TORQUE SPECIFICATION

Model(s): 1995 Suzuki Swift

Bulletin No.: TS 7-08 01045

Division: Automotive

Category: Technical

Section Title: Miscellaneous

CONDITION

The 1995 Suzuki Swift A/C Installation Manual (P/N 99963-01501-121) indicates an incorrect torque when connecting the discharge hose to the condenser.

AFFECTED A/C KIT: P/N 95000-50G10.

CAUSE

N/A

CORRECTION

Make correction in your Suzuki Swift A/C Installation Manual on page 17.

PAGE 17

(1) Discharge Hose

(a) Connect the discharge hose to the condenser using a (M6) nut.

Tightening Torque:

Incorrect Torque: 9.8 Nm (100 kgf.cm, 7.2 ft.lbf.)

Correct Torque: 5.4 Nm (55 kgf.cm, 4.0 ft.lbf.)

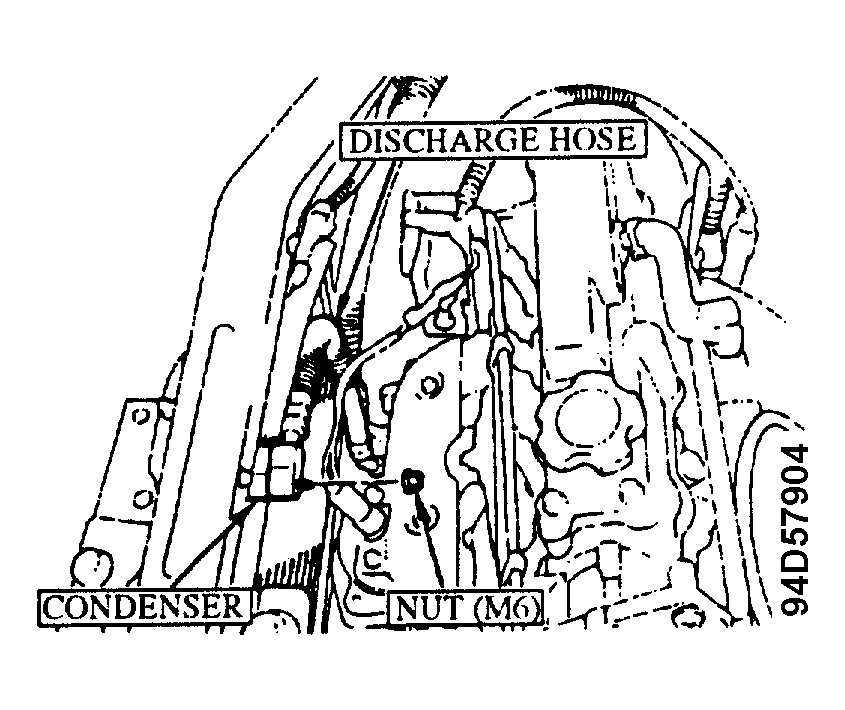

Fig 1: Connecting Discharge Hose To Condenser
