Diagnostic Trouble Code Chart Amendment (TS 5-03 04175)
WARNING: This page is about the Swift Automatic, which is a different variant/trim than selected.
Publication date: 1970-01-01Reference number: TS 5-03 04175
DIAGNOSTIC TROUBLE CODE CHART AMENDMENT
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 5-03 04175, Date of Issue:
AMENDMENT OF 1995 SWIFT SUPPLEMENTARY SERVICE MANUAL
Model(s): 1995 Suzuki Swift Equipped With ABS
Bulletin No.: TS 5-03 04175
Division: Automotive
Category: Technical
Section Title: Steering, Brakes, And Suspension.
CONDITION
Incorrect information in service manual.
CAUSE
Misprinted information.
CORRECTION
Make changes in service manual as described in this bulletin.

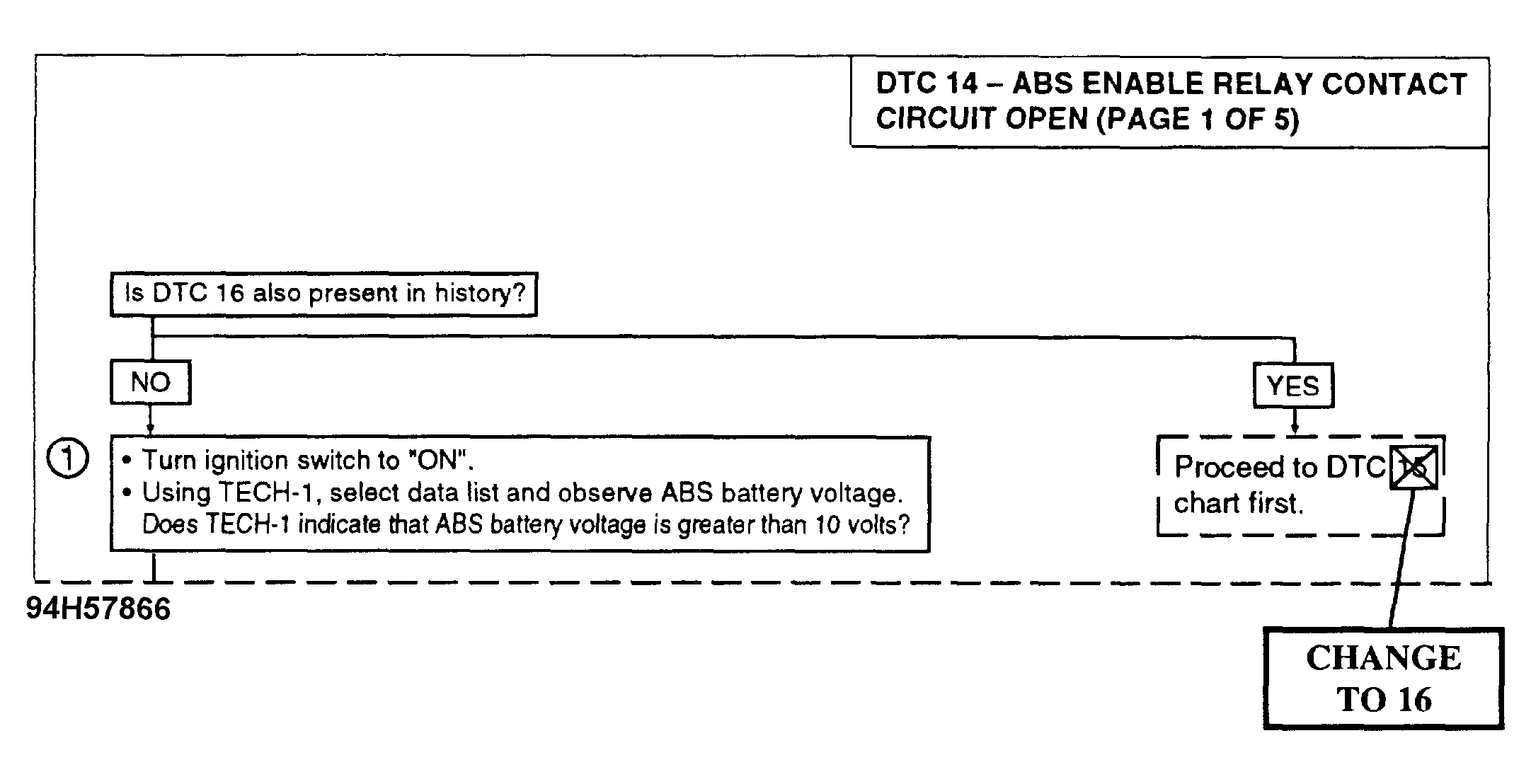

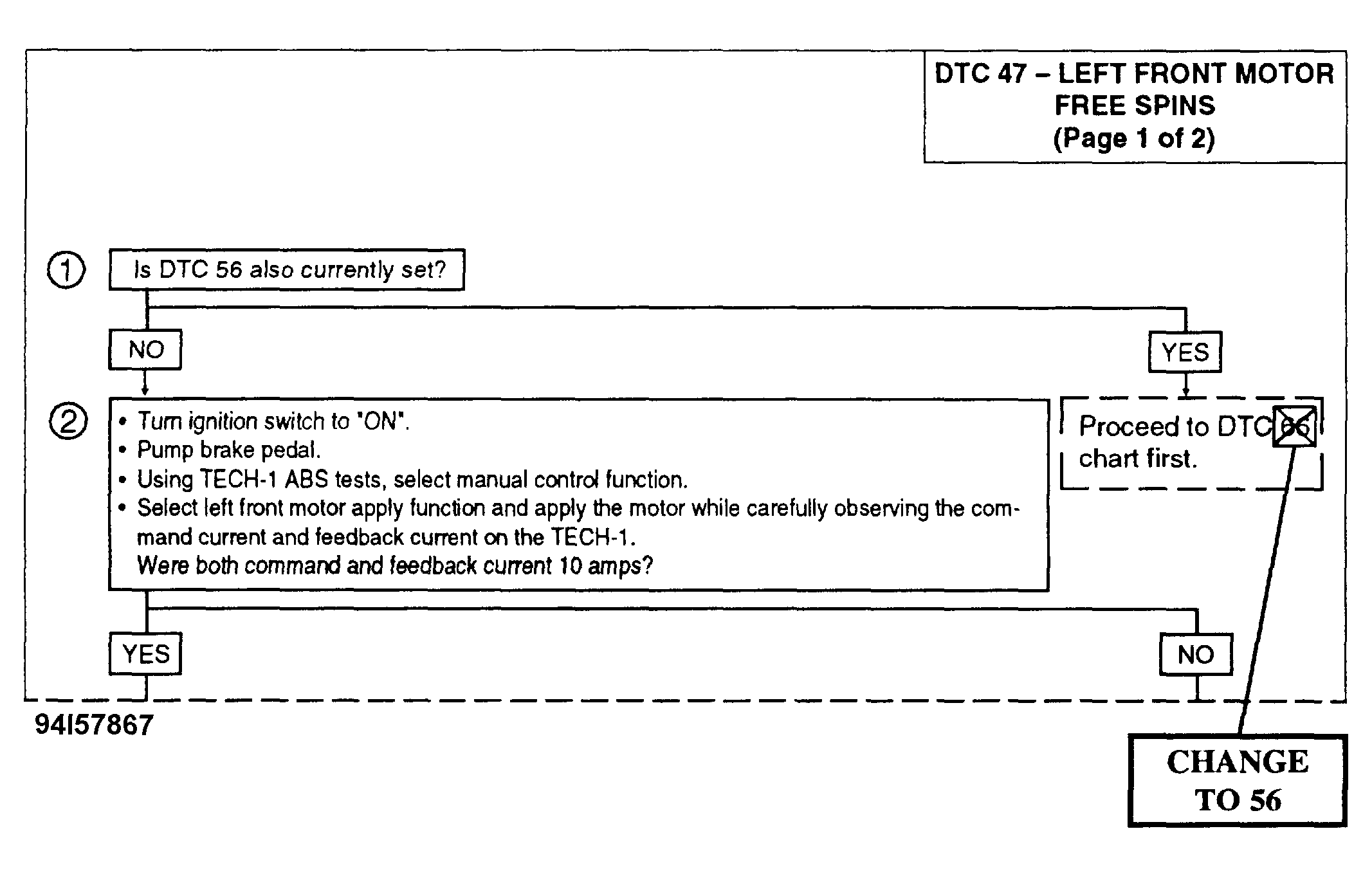

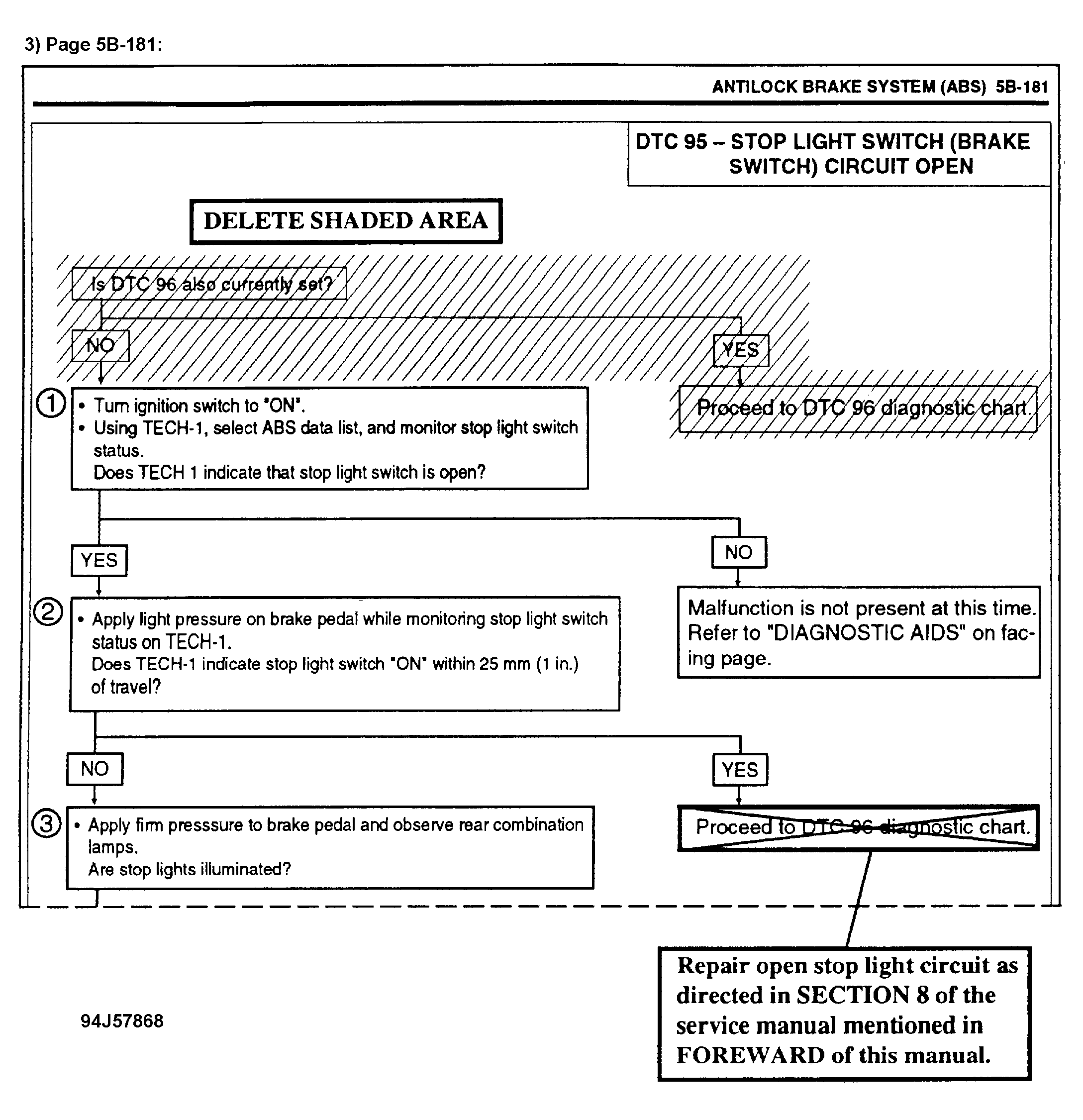

This bulletin is to inform you of the amendment of the diagnostic trouble code chart in the 1995 Swift Supplementary Service Manual (p/n 99501-51G00-33E). Please make the necessary changes as shown in Fig 1 , Fig 2 and Fig 3 in this bulletin.
