DTC 17 - Passenger-Side Initiator Circuit Open

WARNING: This page is about a different car, the 1996 Suzuki Swift, 1996 Pontiac Firefly, and 1996 Geo Metro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.

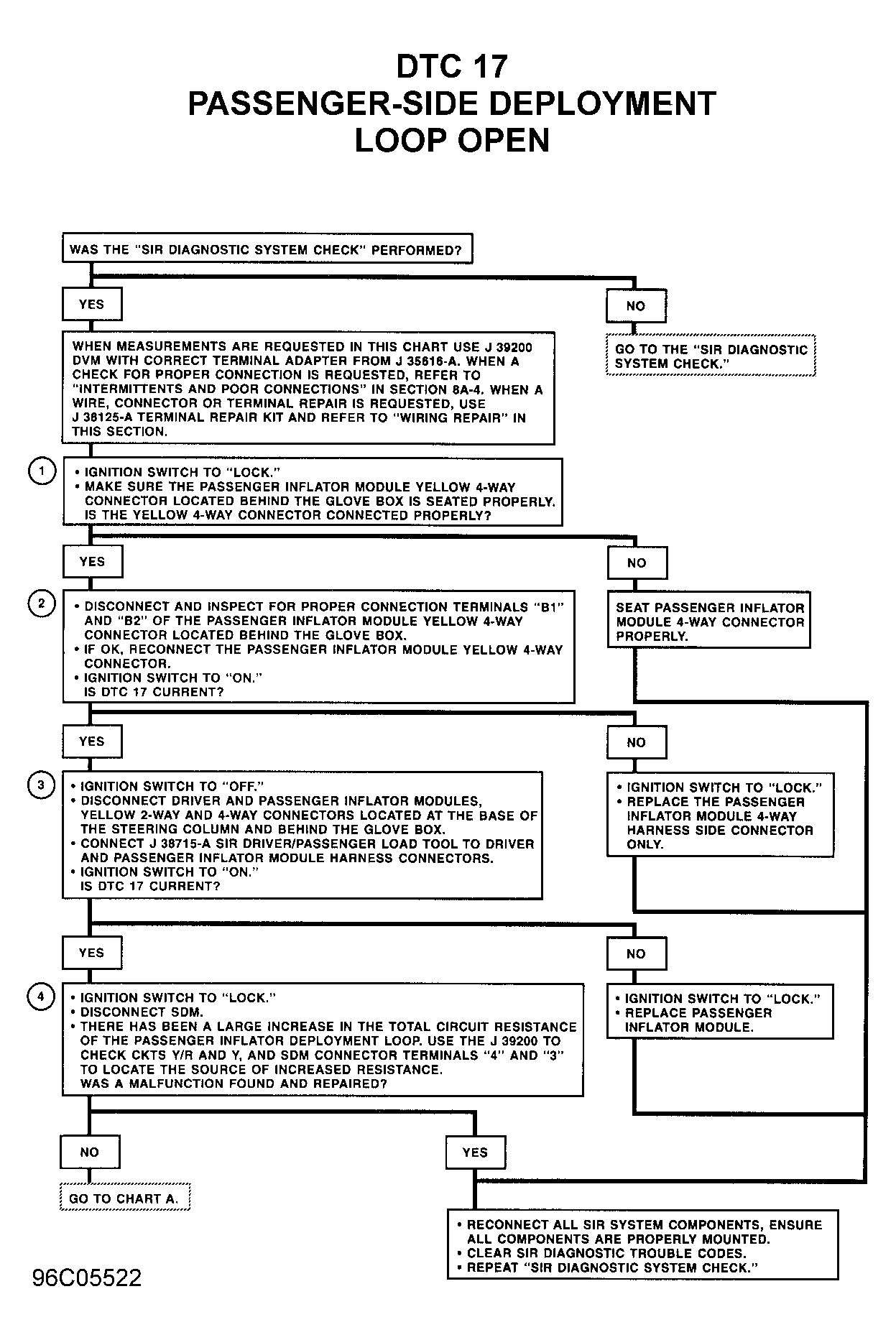

Fig 1: DTC 17 - Passenger-Side Deployment Loop Open
G96C05522Courtesy of GENERAL MOTORS CORP.
