Centering Sir Coil Assembly
WARNING: This page is about a different car, the 1996 Suzuki Swift, 1996 Pontiac Firefly, and 1996 Geo Metro. However, it is still accessible from the selected car via links, so may be relevant.
- SIR coil must be centered before installation any time there is a question as to whether coil or steering shaft has been disturbed since removal. Make sure that vehicle front wheels are facing straight ahead.

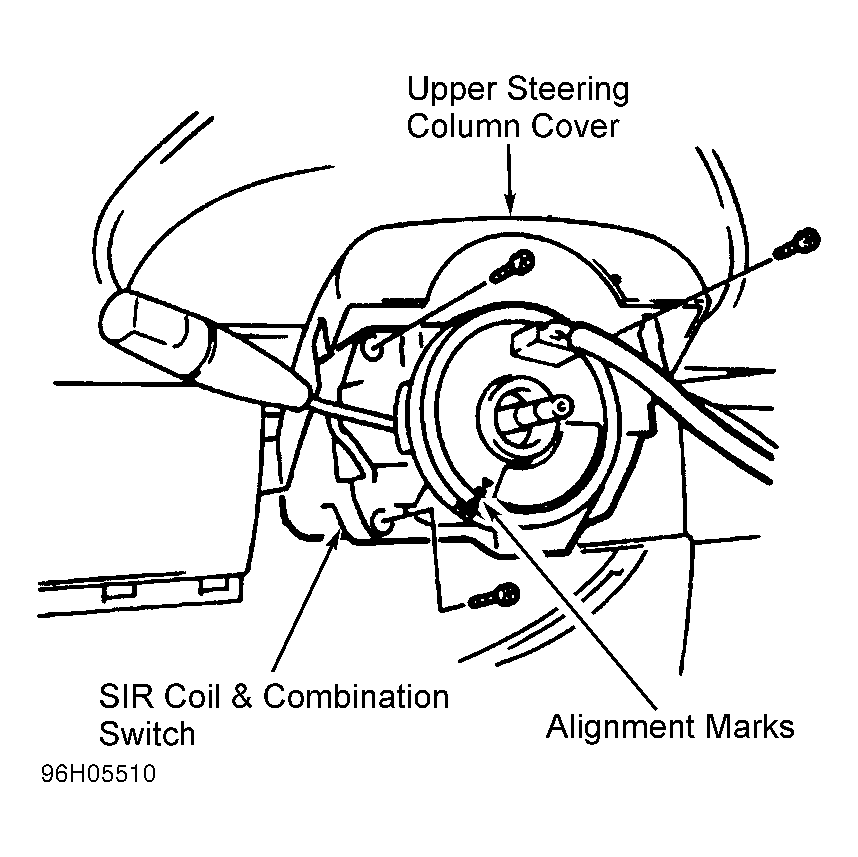

- Turn hub of SIR coil counterclockwise until it reaches its stop. Turn hub of SIR coil clockwise, 3 complete turns and align Red alignment marks. See Fig 1. Coil is now centered and may be installed in vehicle. See SIR COIL under REMOVAL & INSTALLATION.
