Chart A-2 - Mil "Check Engine" CKT Check Mil "Check Engine" Inoperative, Engine Starts

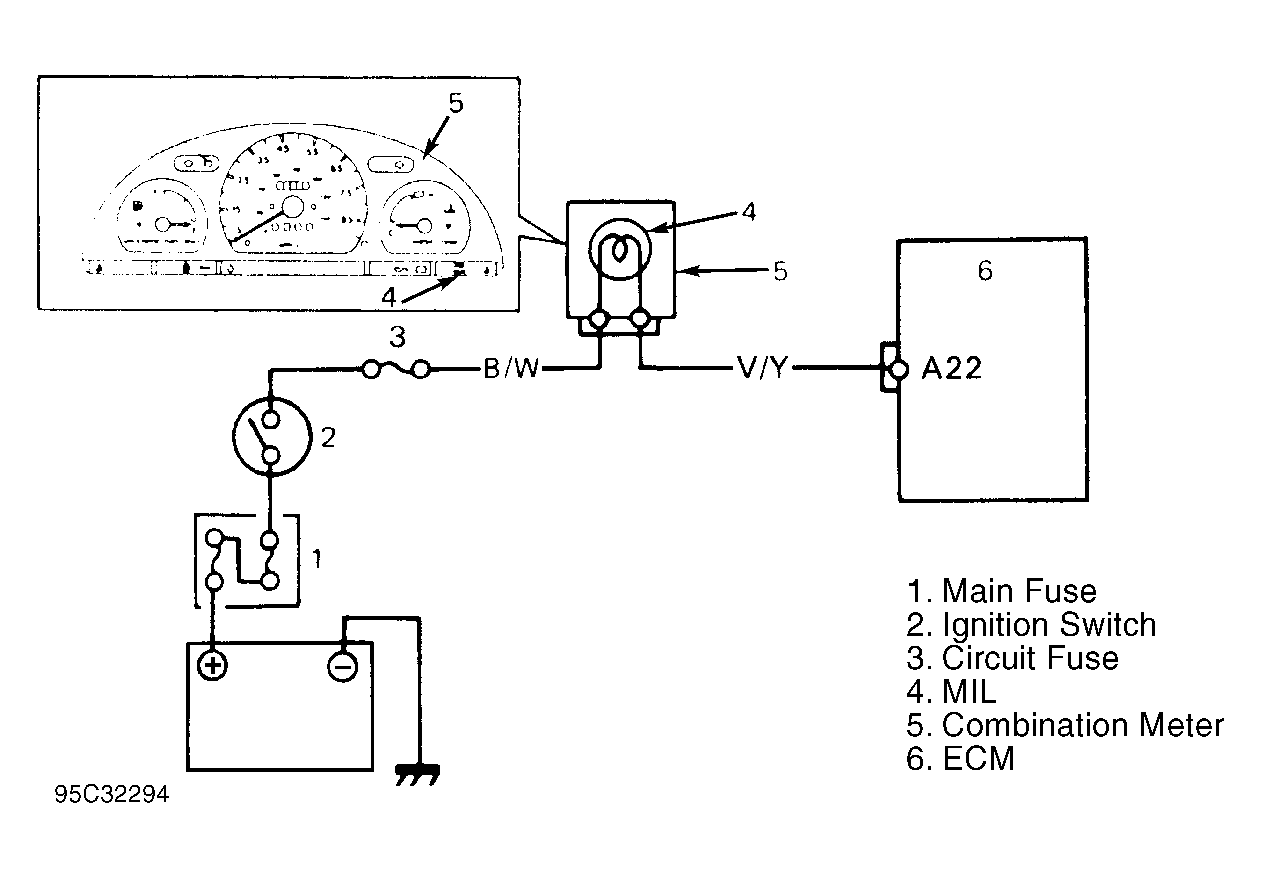

Fig 1: Chart A-2 - Circuit Diagram

Courtesy of SUZUKI OF AMERICA

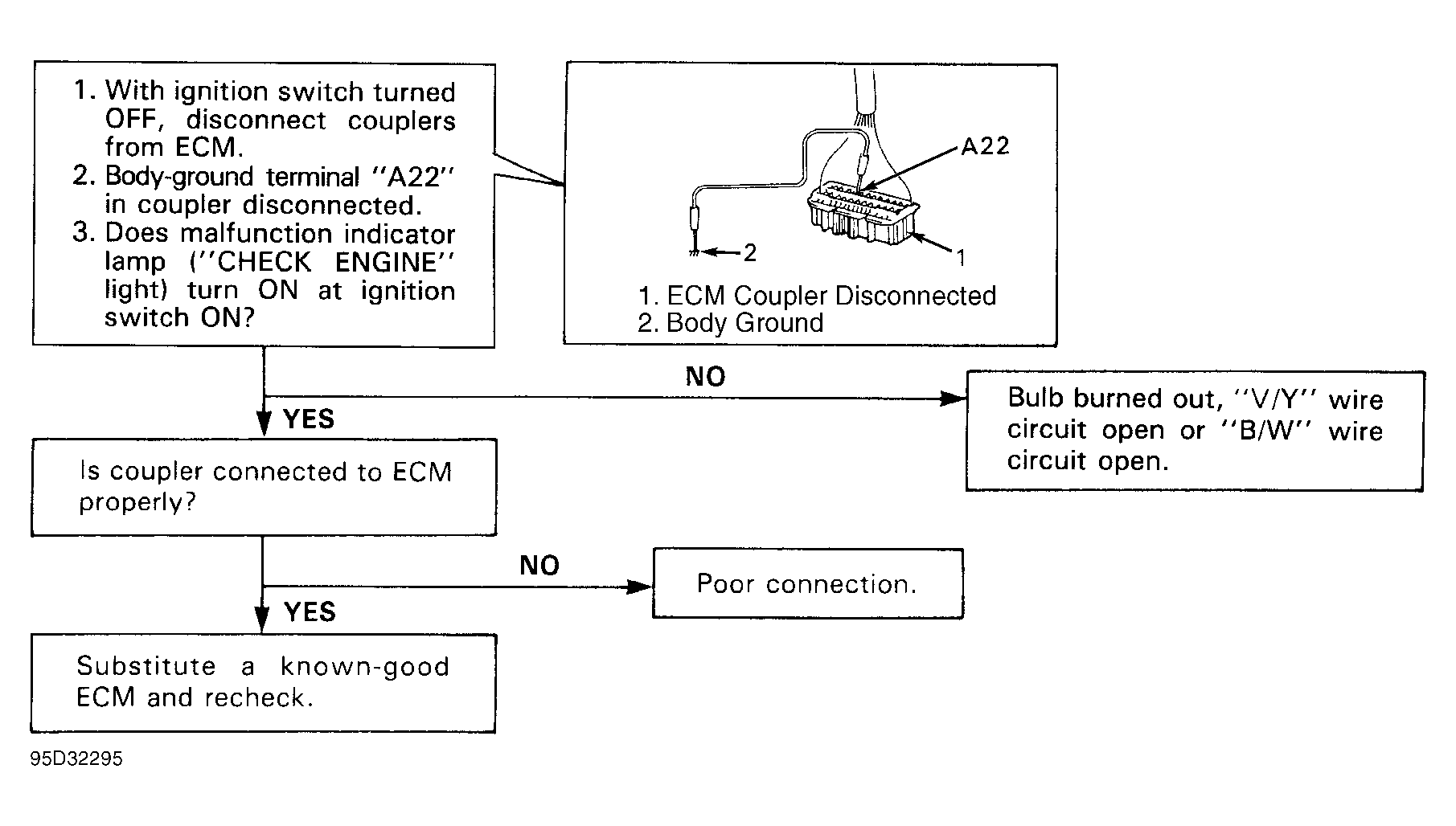

Fig 2: Chart A-2 - Flow Chart

Courtesy of SUZUKI OF AMERICA
