Axle Shafts: Installation

Clean and lubricate axle shaft oil seals. To install right-side axle shaft, push into differential until circlip locks into groove and axle shaft is held in position. To complete installation, reverse removal procedures.

Fig 1: Exploded View Of FWD Axle Components

Courtesy of SUZUKI OF AMERICA CORP.

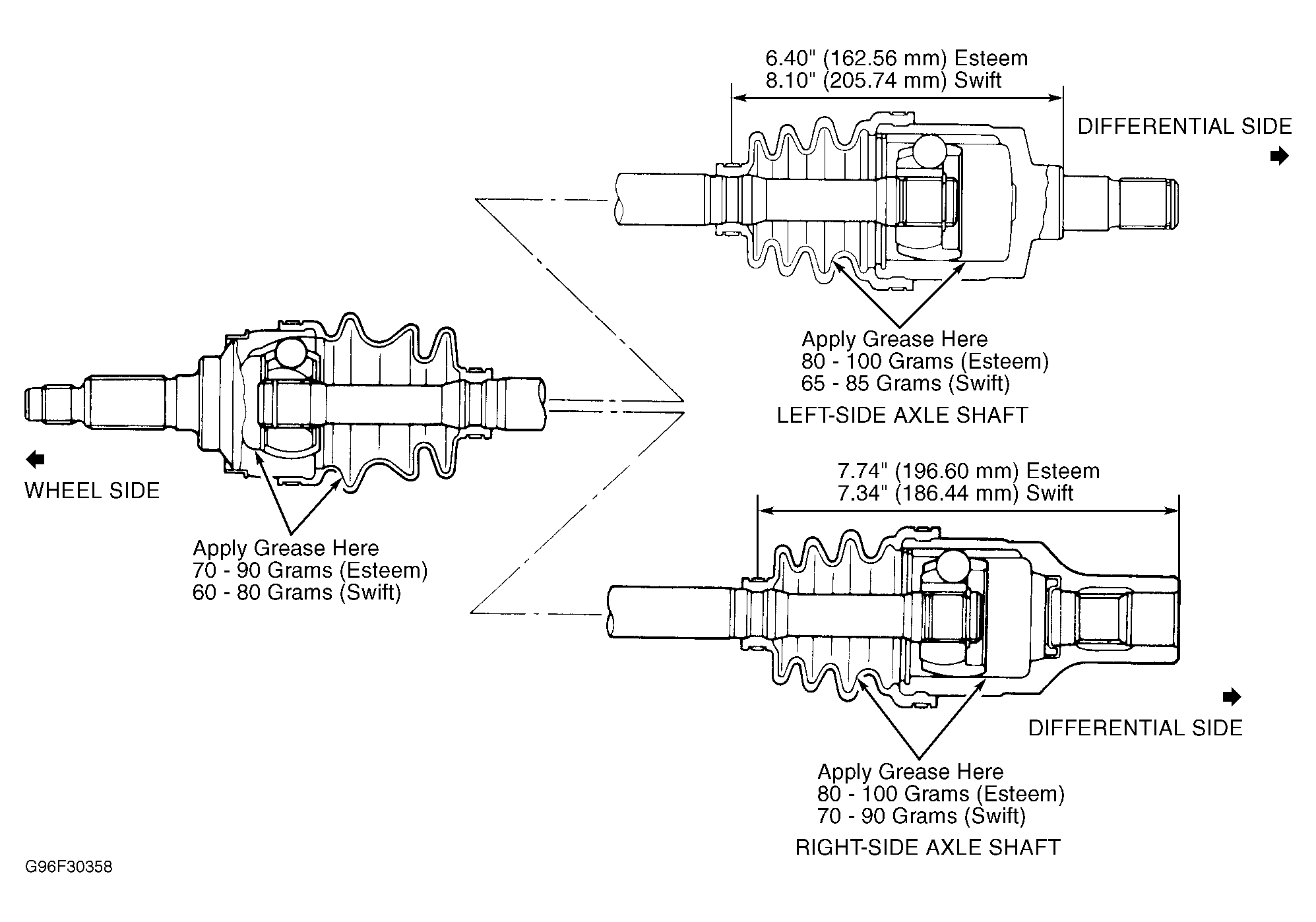

Fig 2: Reassembling FWD Axle (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Reassembling FWD Axle (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

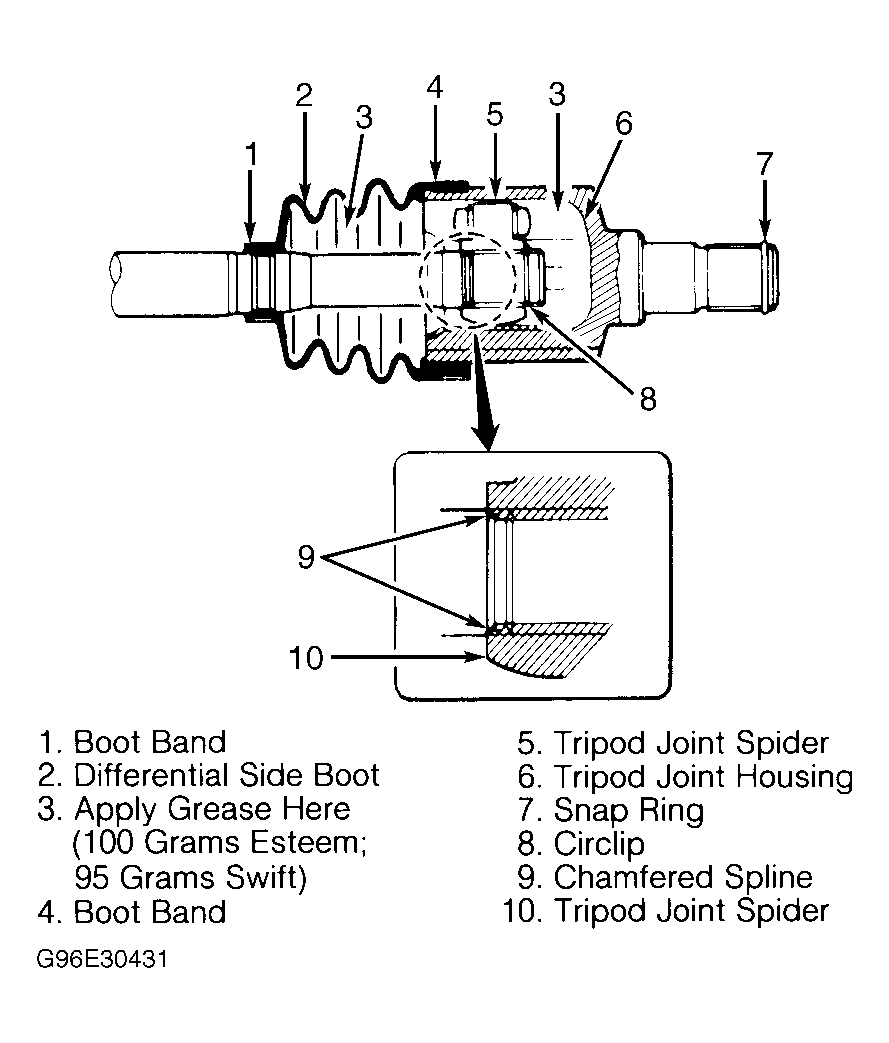

Fig 4: Overhauling CV Joints

Courtesy of SUZUKI OF AMERICA CORP.
