Scan Tool Testing and Procedures

ECM Terminal Identification:

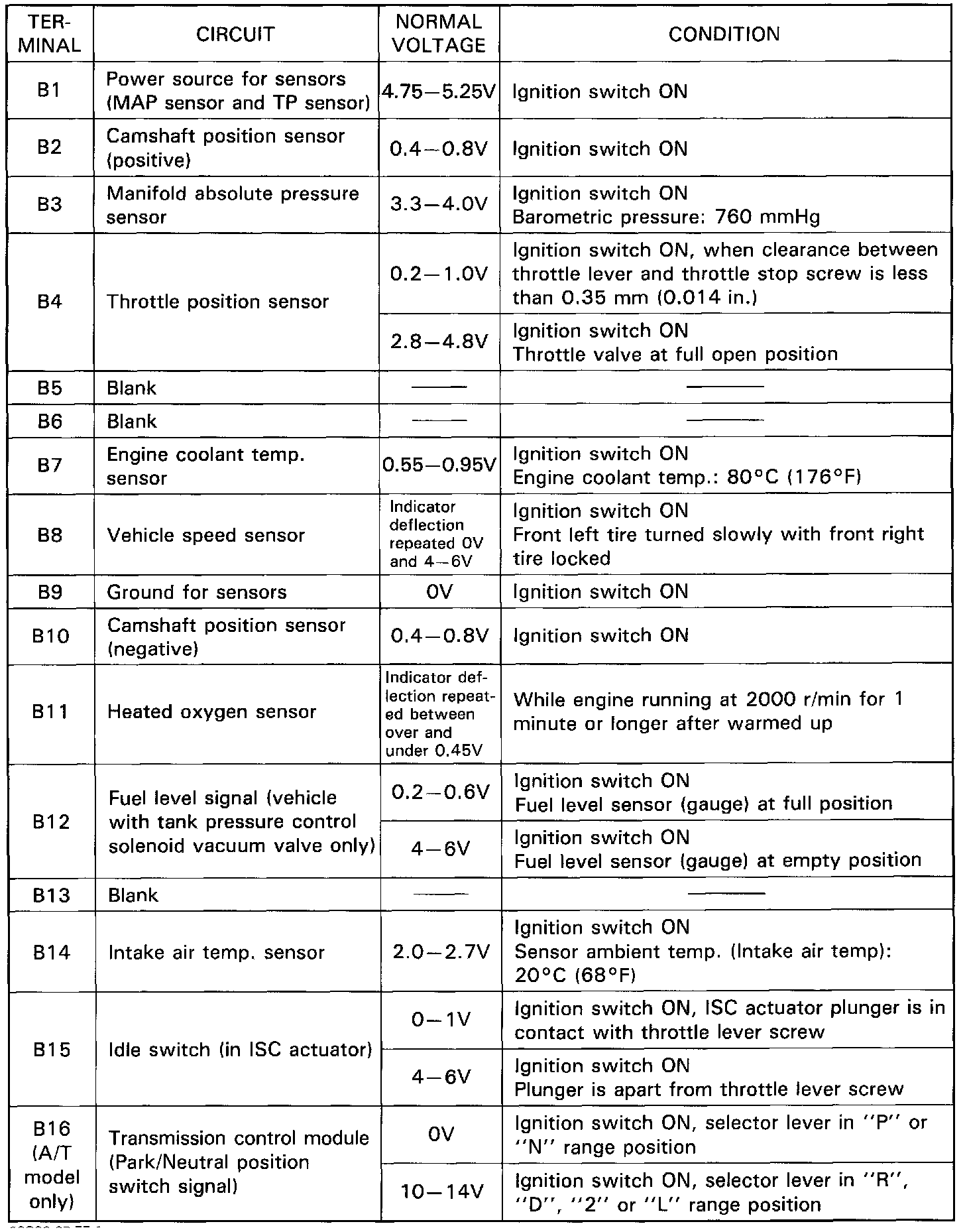

ECM Voltage (Part 1 Of 3):

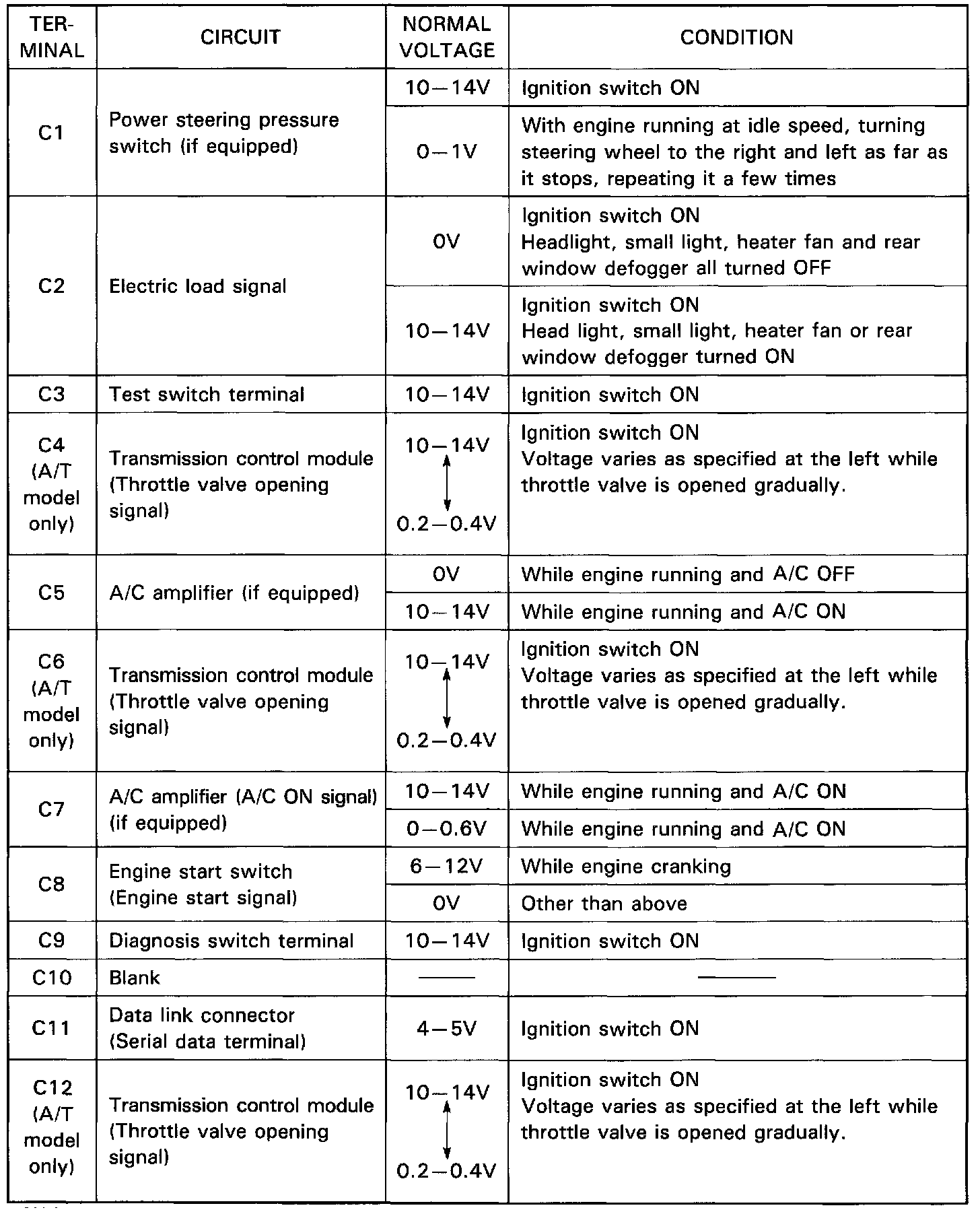

ECM Voltage (Part 2 Of 3):

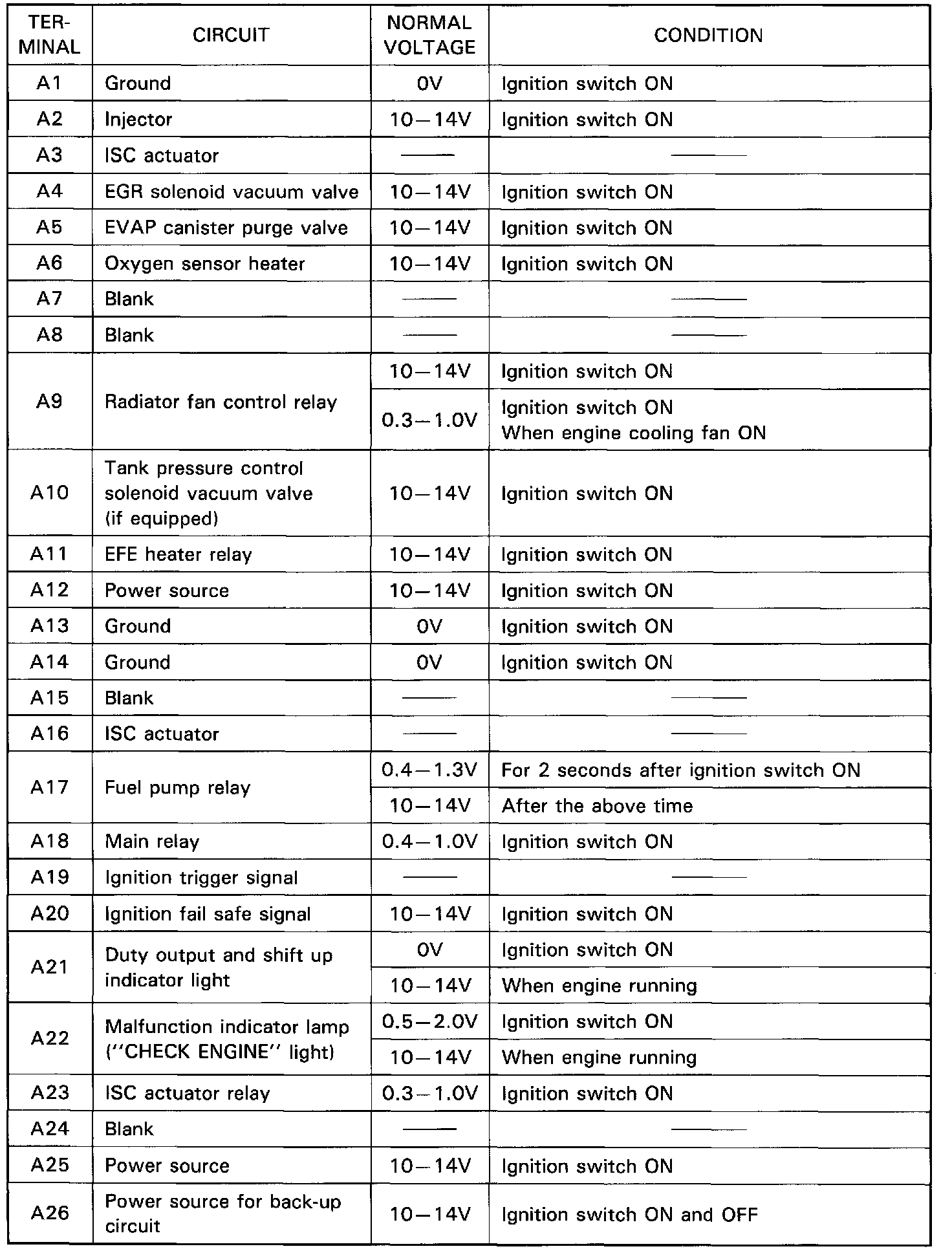

ECM Voltage (Part 3 Of 3):
