Removal & Installation
WARNING: This page is about a different car, the 1998 Suzuki Sidekick, 1997 Suzuki Sidekick, and 1996 Suzuki Sidekick. However, it is still accessible from the selected car via links, so may be relevant.

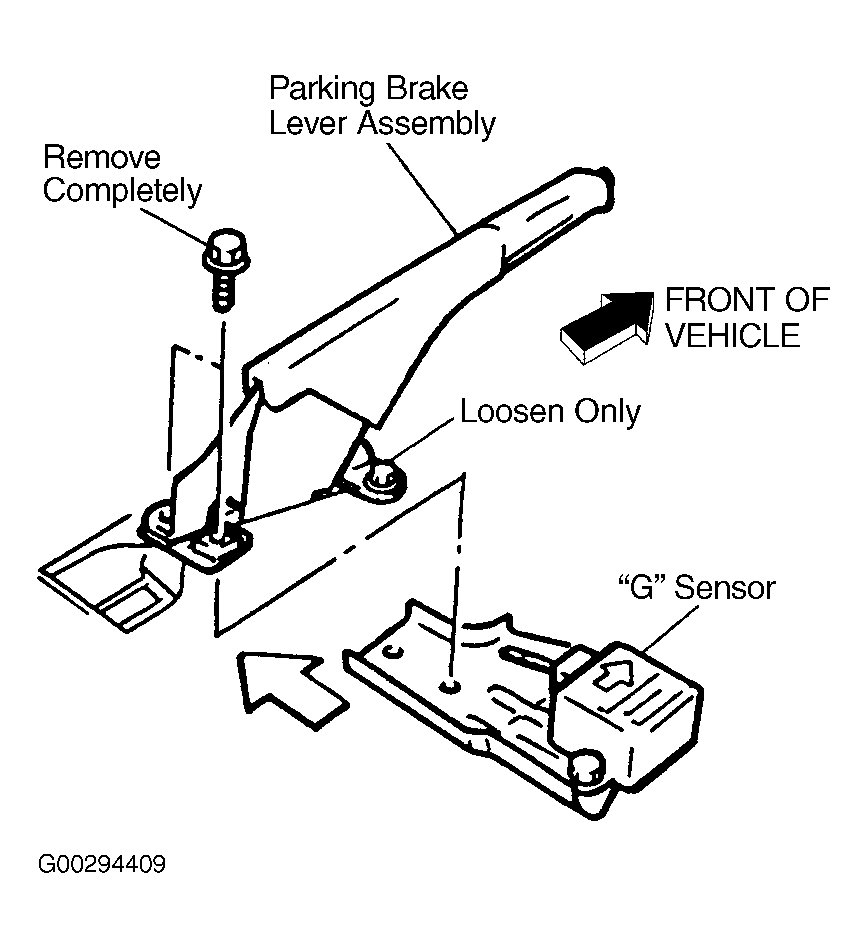

Turn ignition off and disconnect negative battery cable. Remove rear center console box. Disconnect "G" sensor harness connector. Remove rear parking brake lever retaining bolt and loosen front parking brake lever retaining bolt. Slide "G" sensor and bracket away from parking brake lever assembly. DO NOT drop or shock sensor. To install, reverse removal procedure. Install "G" sensor with arrow pointing toward front of vehicle and tighten parking brake lever retaining bolts. See Fig 1 . See TORQUE SPECIFICATIONS .
