Interlock Cable
- Remove console covers. Cable is adjusted at bracket, located
near gearshift. Place ignition in ACC position. Ensure cable is
attached to key interlock lever.

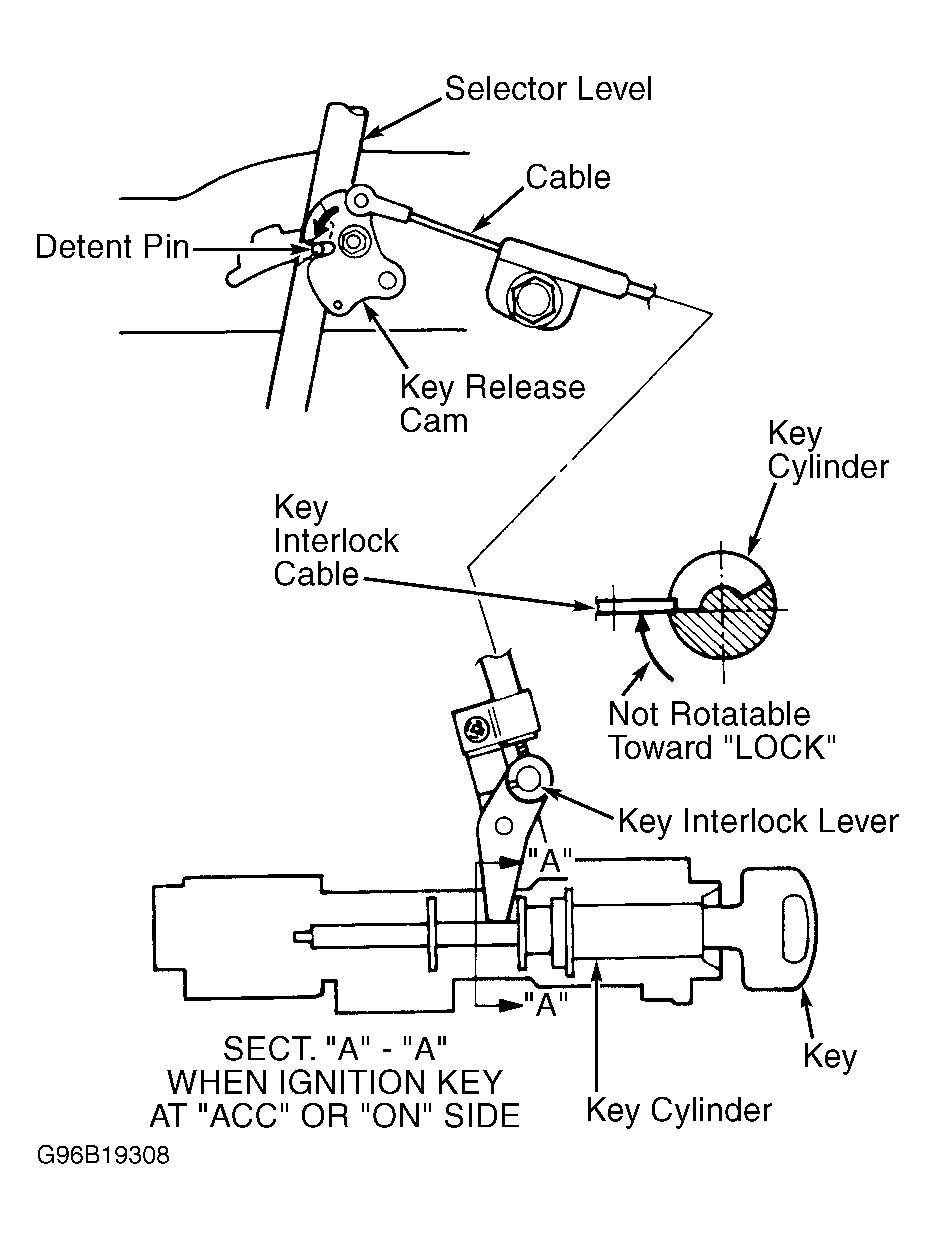

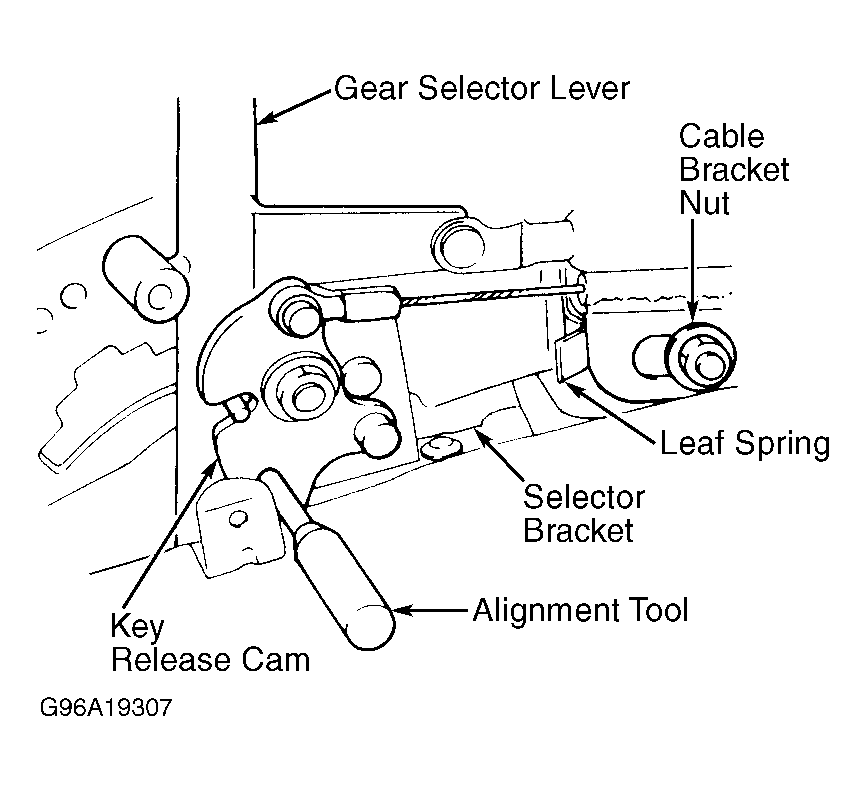

- Loosen cable bracket nut. See Fig 1 and
Fig 2. Position release
cam and insert Special Alignment Tool (09925-78210) into holes in gear
selector key release cam and selector lever.
- Ensure cable is connected to key release cam and tighten cable
bracket nut to 114 INCH lbs. (13 N.m). Remove special tool. Ensure key
release cam moves smoothly when gear selector button is pushed.
- With selector lever in Park, turn ignition key to ACC position.
Ensure when knob is released, ignition key can be turned from ACC to
LOCK position. Replace components removed for service.
