Door Locks - Power: Operation: Locking

When key is used to lock door or door lock switch is set to LOCK position, current flows in direction indicated by the fine solid line with arrow. See Fig 1 or Fig 2 .
When door lock controller switch "A" (located inside the controller) is in ON or LOCK position, current flows in direction indicated by heavy solid line with arrow. SeeFig 1 or Fig 2 . This causes door lock motors to operate in the locking direction. Current to motors is controlled by timer "c" located inside the controller.

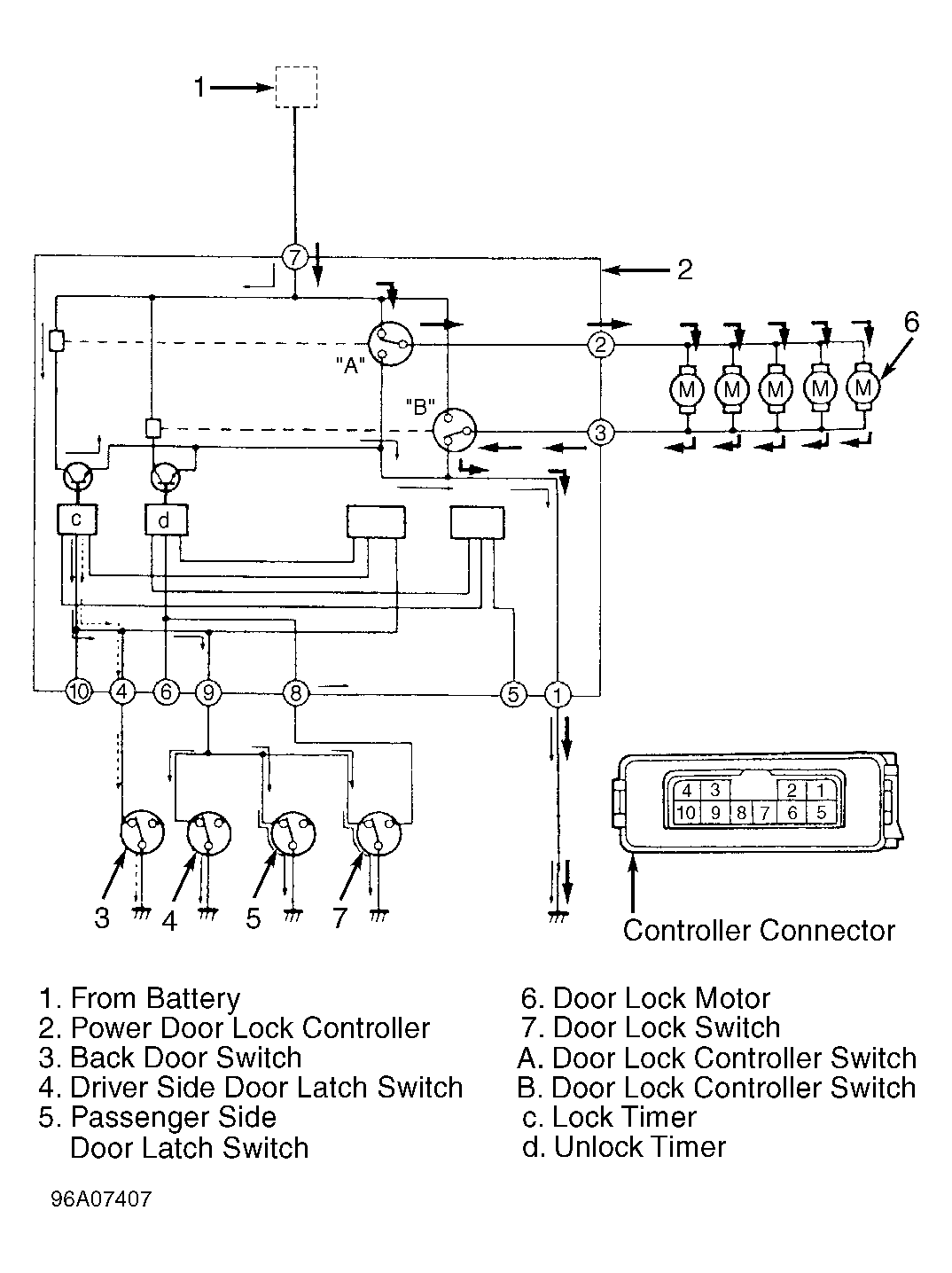

Fig 1: Locking Operation Schematic (1995)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Locking Operation Schematic (1996)

Courtesy of SUZUKI OF AMERICA CORP.
