Disabling System

  1. Before proceeding, see SERVICE PRECAUTIONS . Retrieve fault codes before disconnecting battery. Ensure ignition is off. Disconnect and shield negative battery cable. Wait at least 5 minutes for energy capacitor in SRS control unit to discharge.

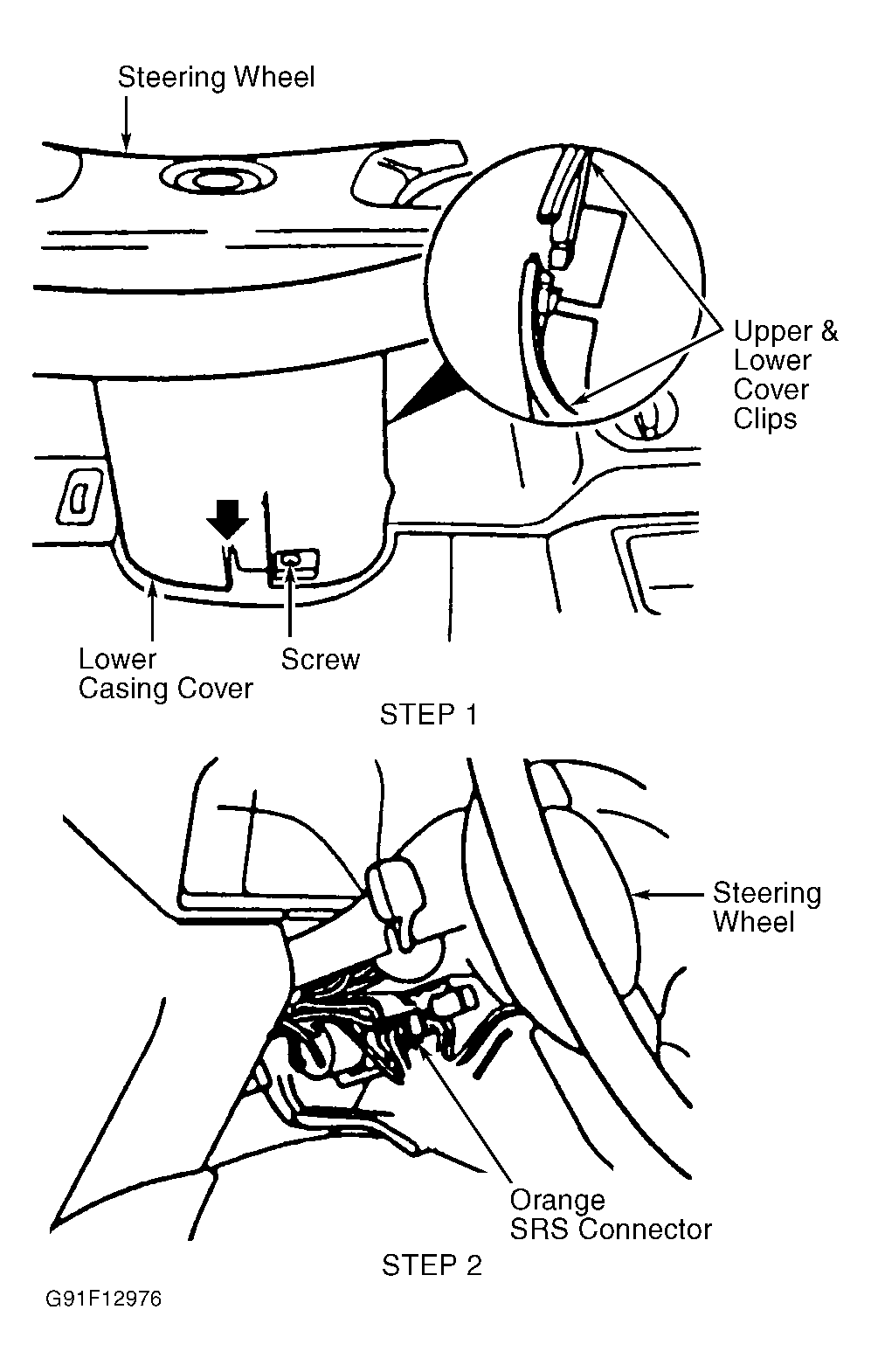

  2. Remove steering column lower casing cover. See Figure. Remove Orange SRS connector from its holder on steering column. Disconnect Orange SRS connector. To disable passenger-side air bag, remove glove box and disconnect both Orange SRS connectors from passenger-side air bag module. On all vehicles, system is now disabled.
