Component Tests and General Diagnostics

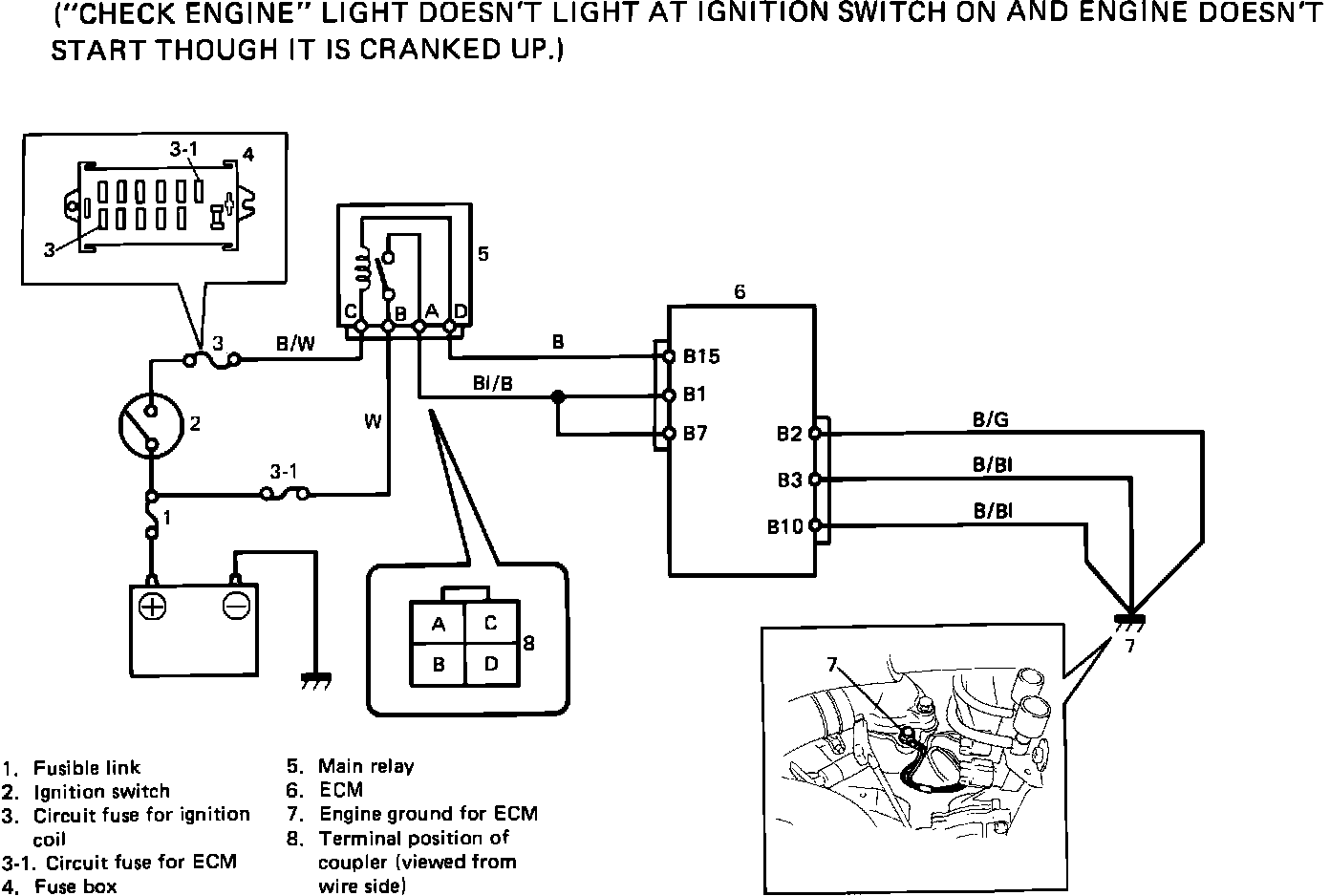

ECM Power And Ground Supply Circuit:

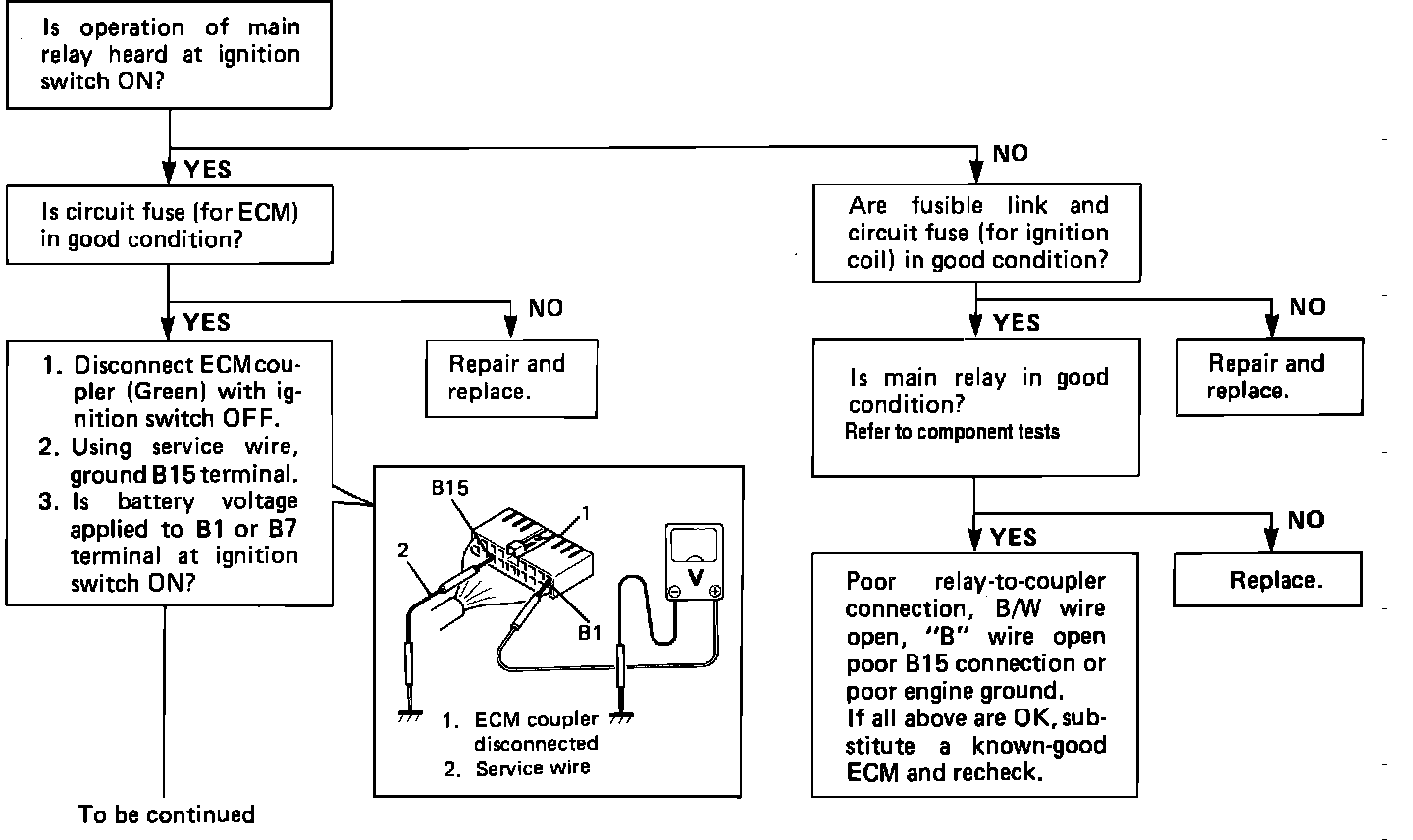

Chart A-1:
Chart A-1:
Check engine light doesn't light with key on and engine does not start.
