Engine Control Module






Checking Voltage:

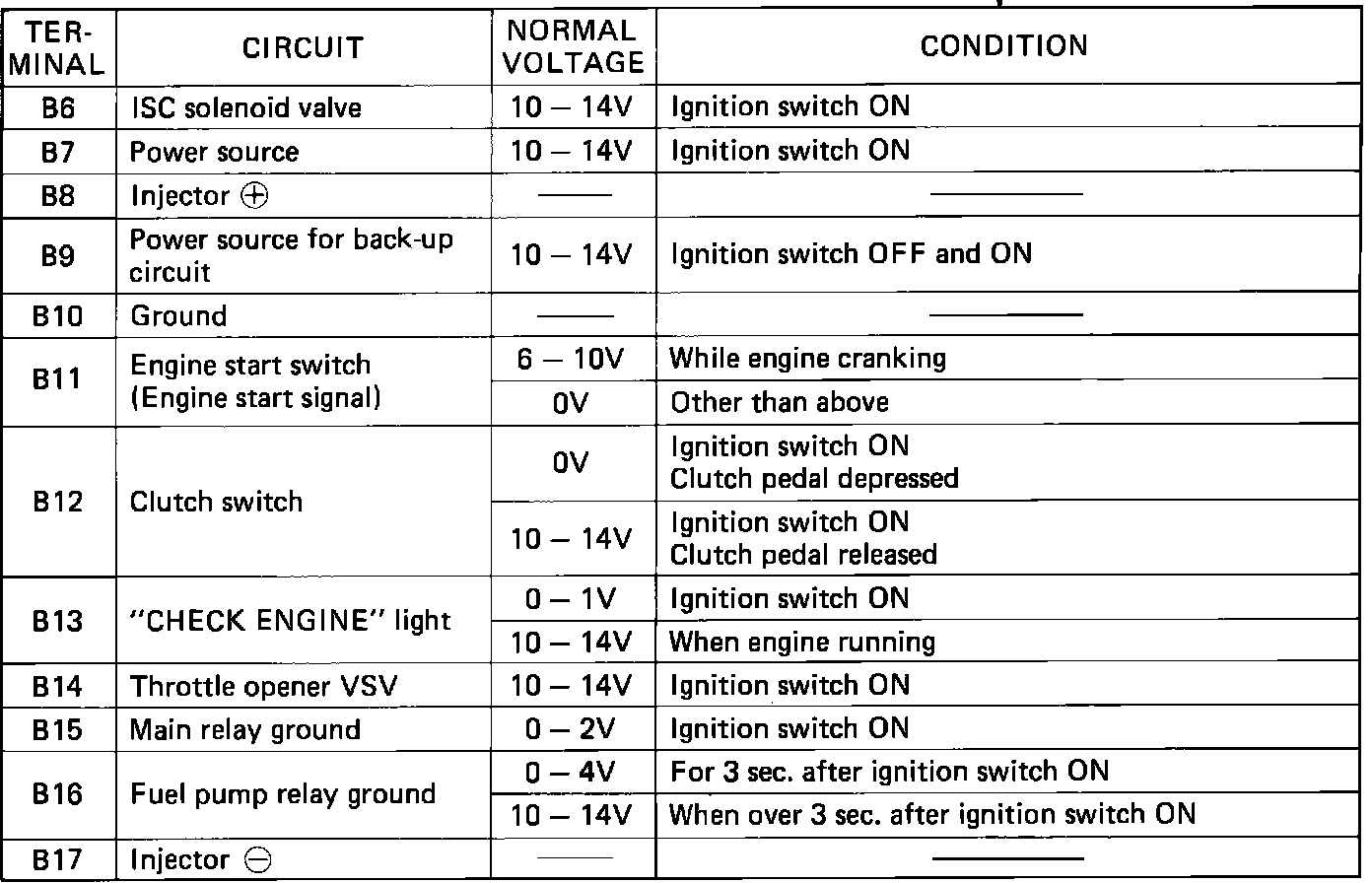

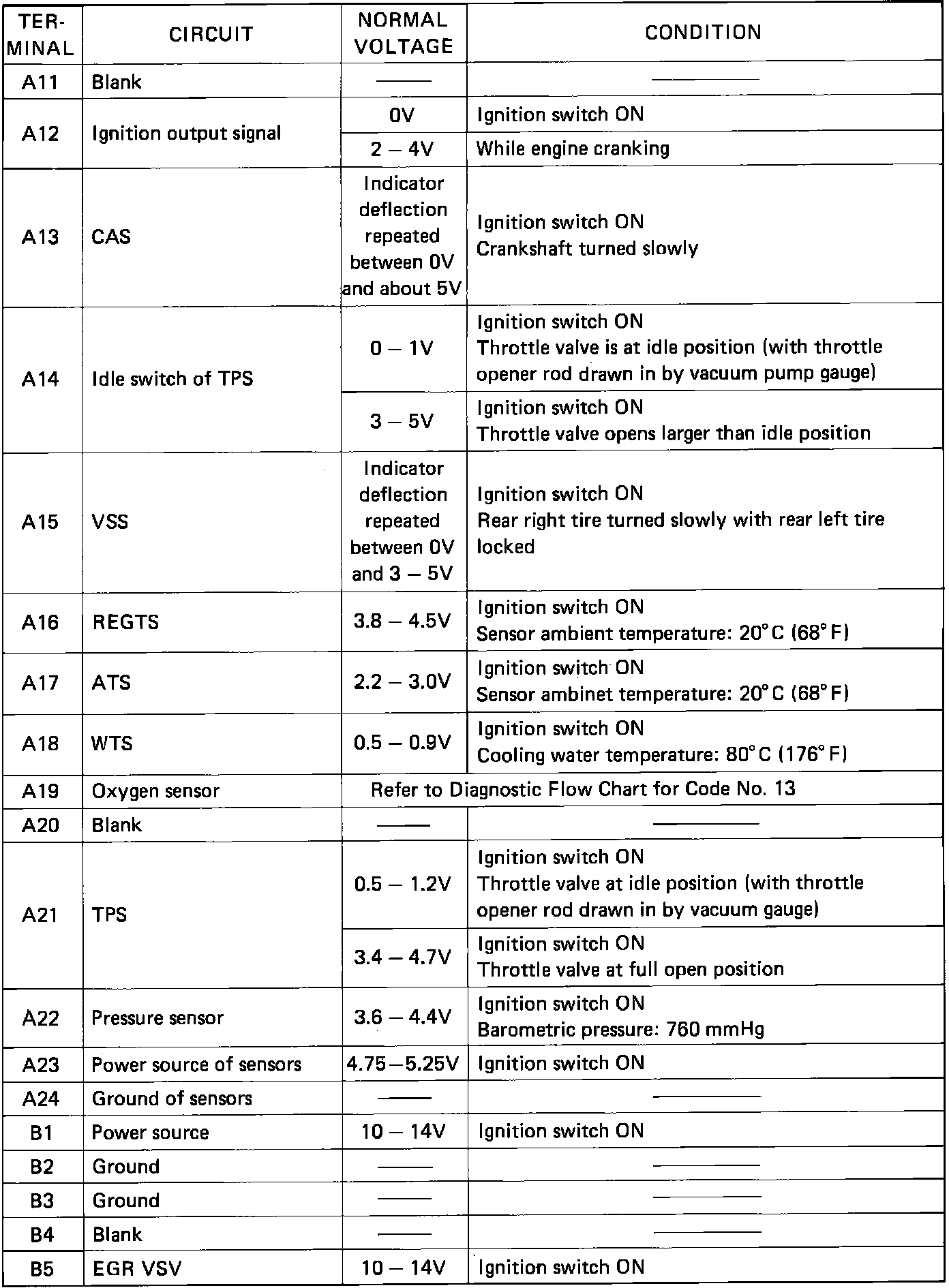

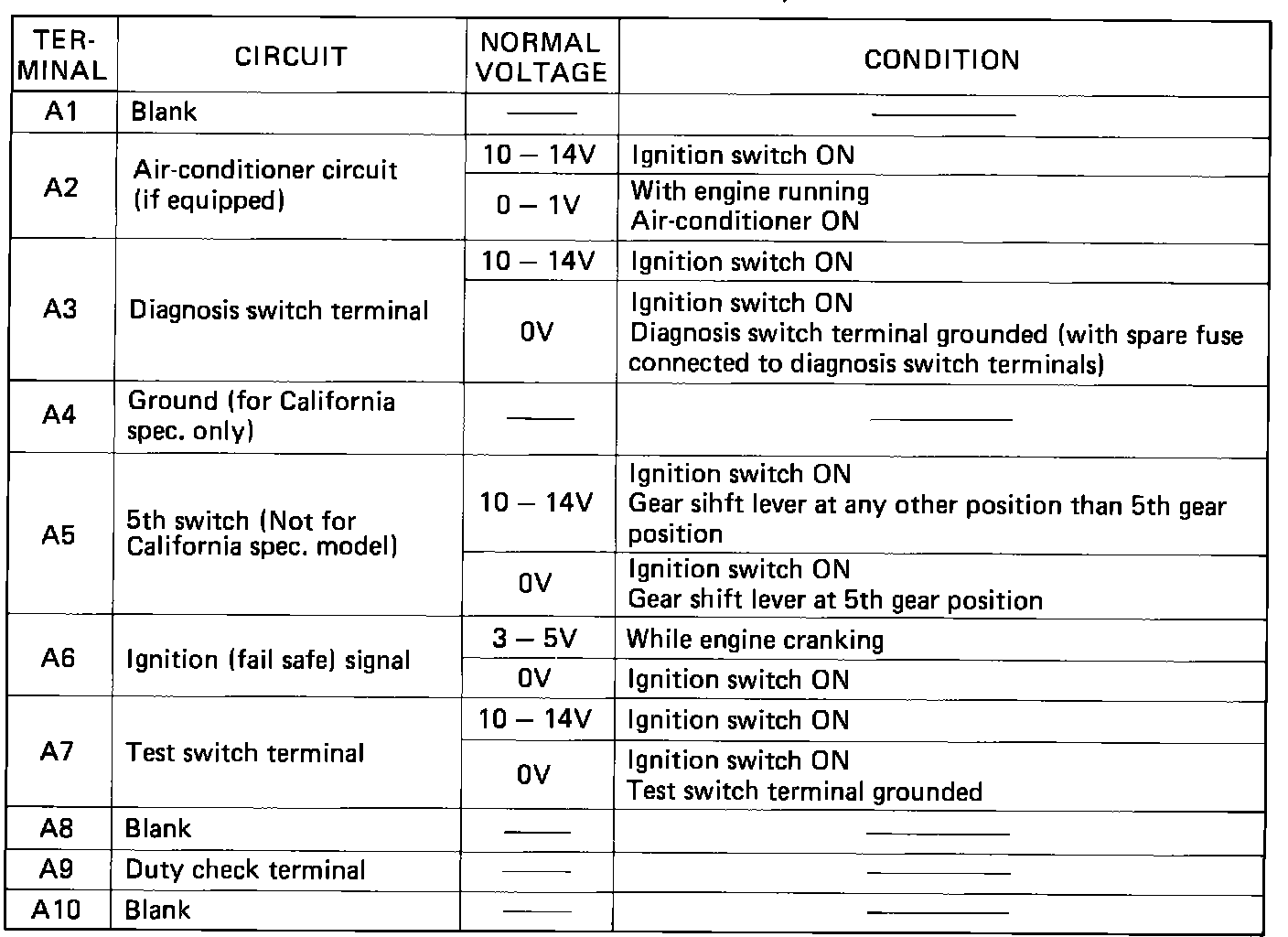

ECM Terminal Voltages:





ECM Terminal Voltages:





ECM Terminal Voltages:

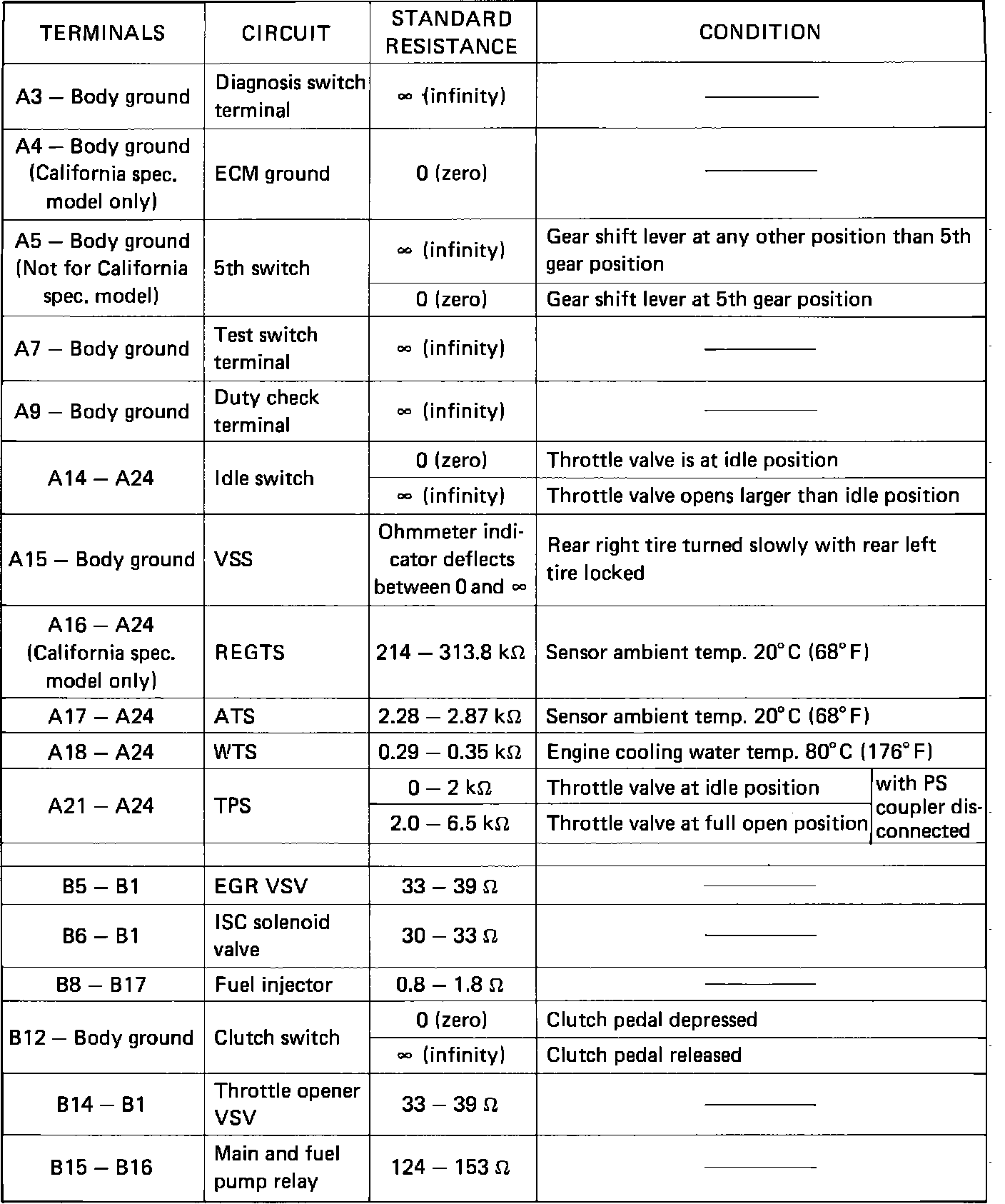

ECM Terminal Resistances:
