Engine Diagnosis

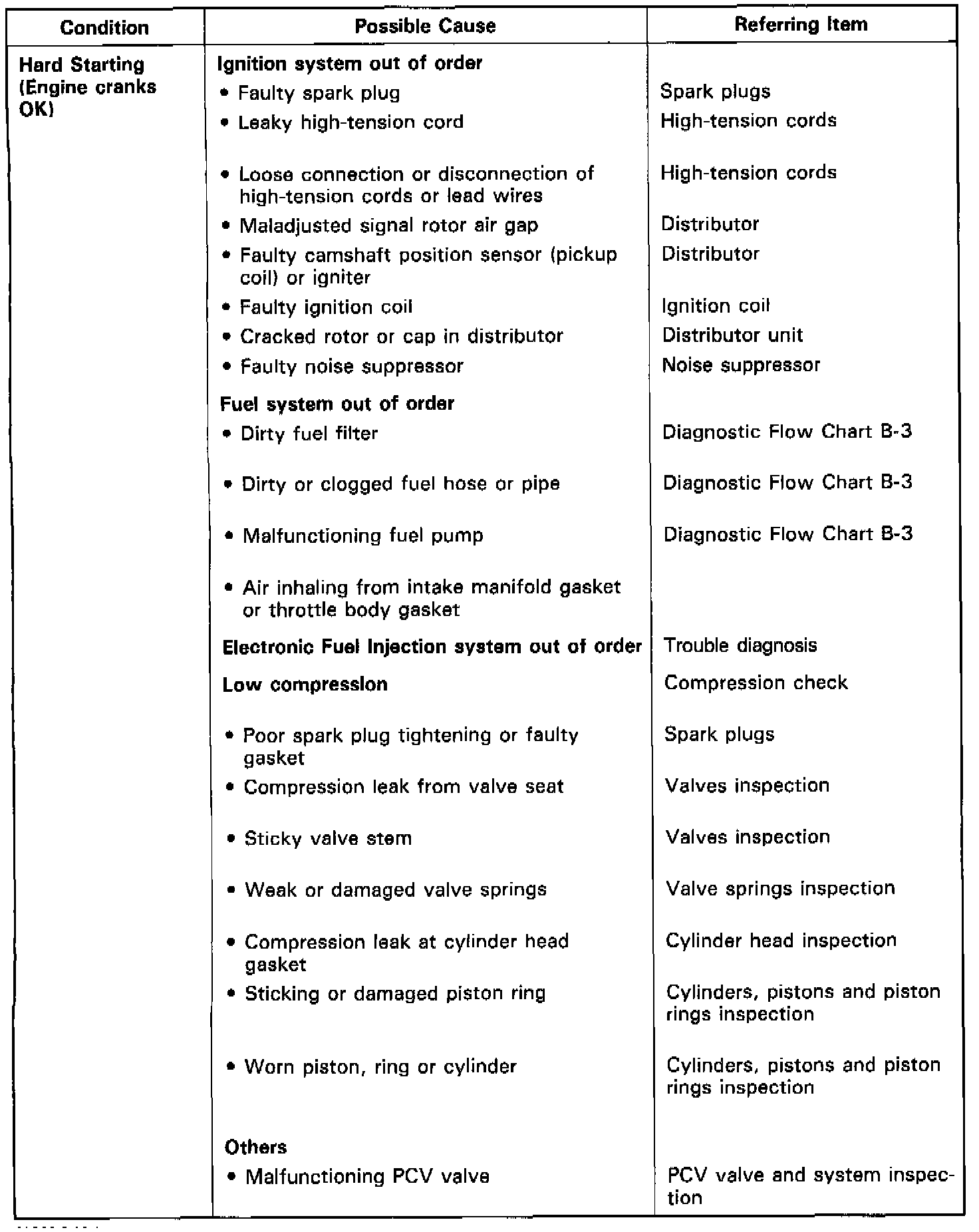

Engine Diagnosis Table (Part 1 Of 4):

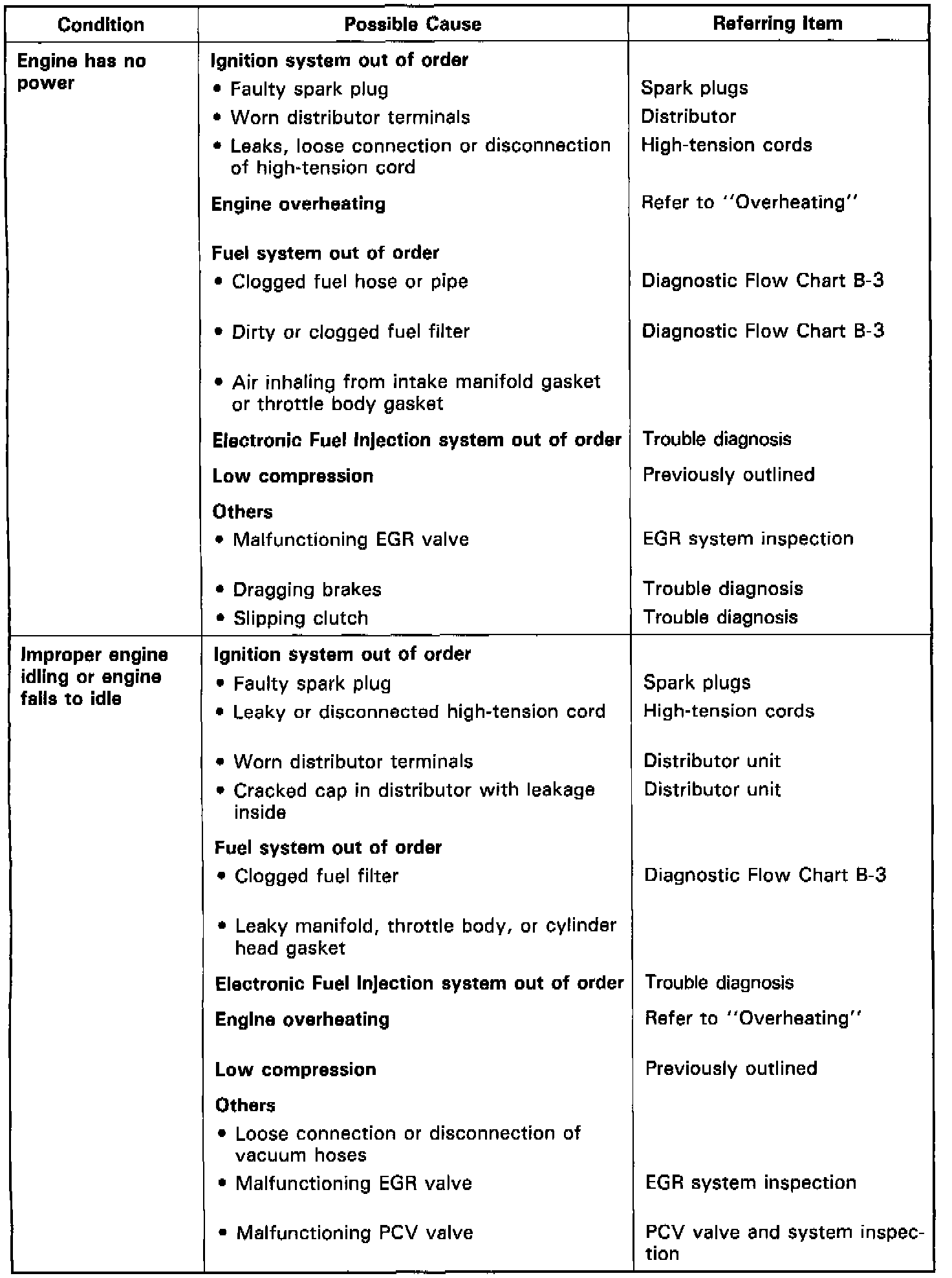

Engine Diagnosis Table (Part 2 Of 4):

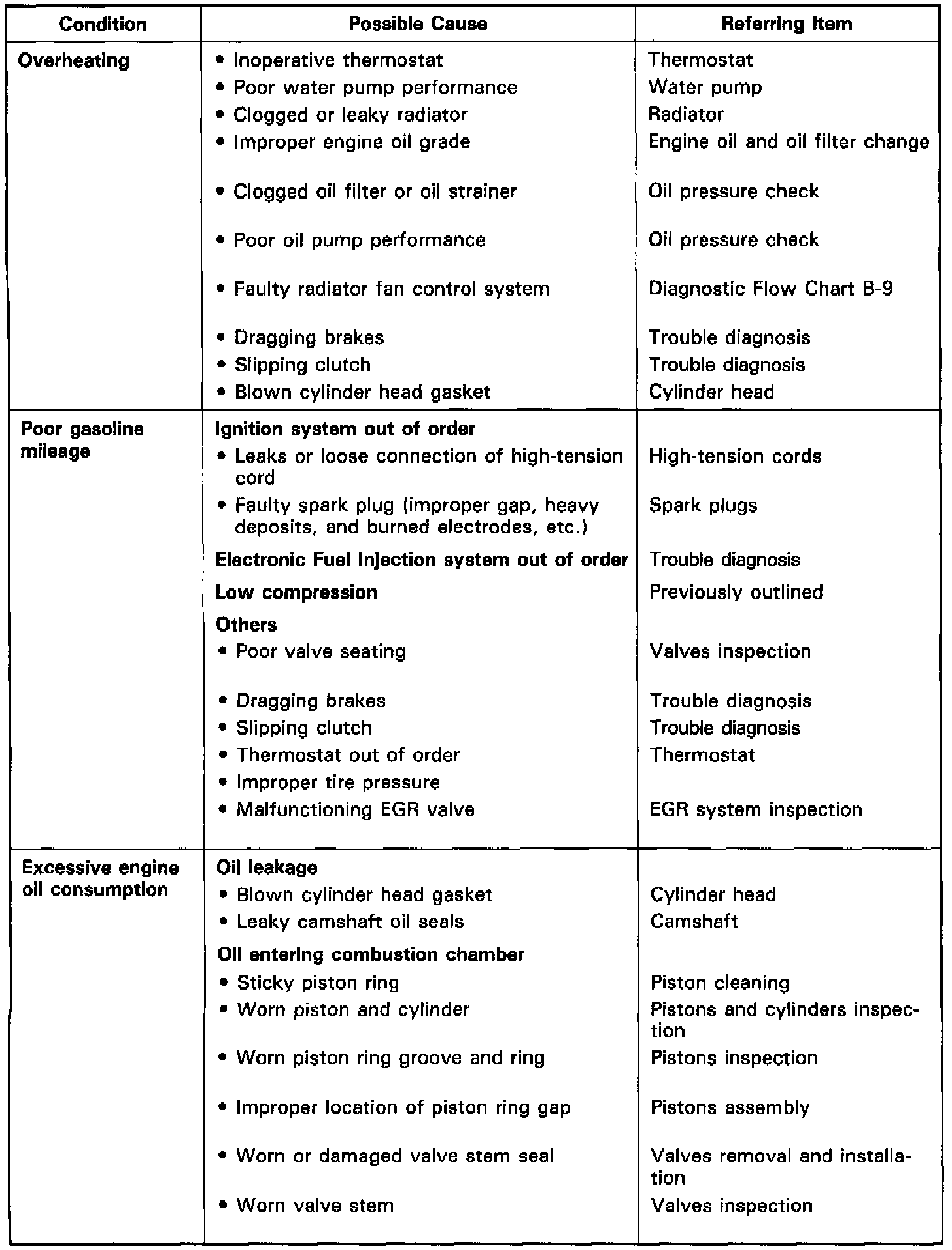

Engine Diagnosis Table (Part 3 Of 4):

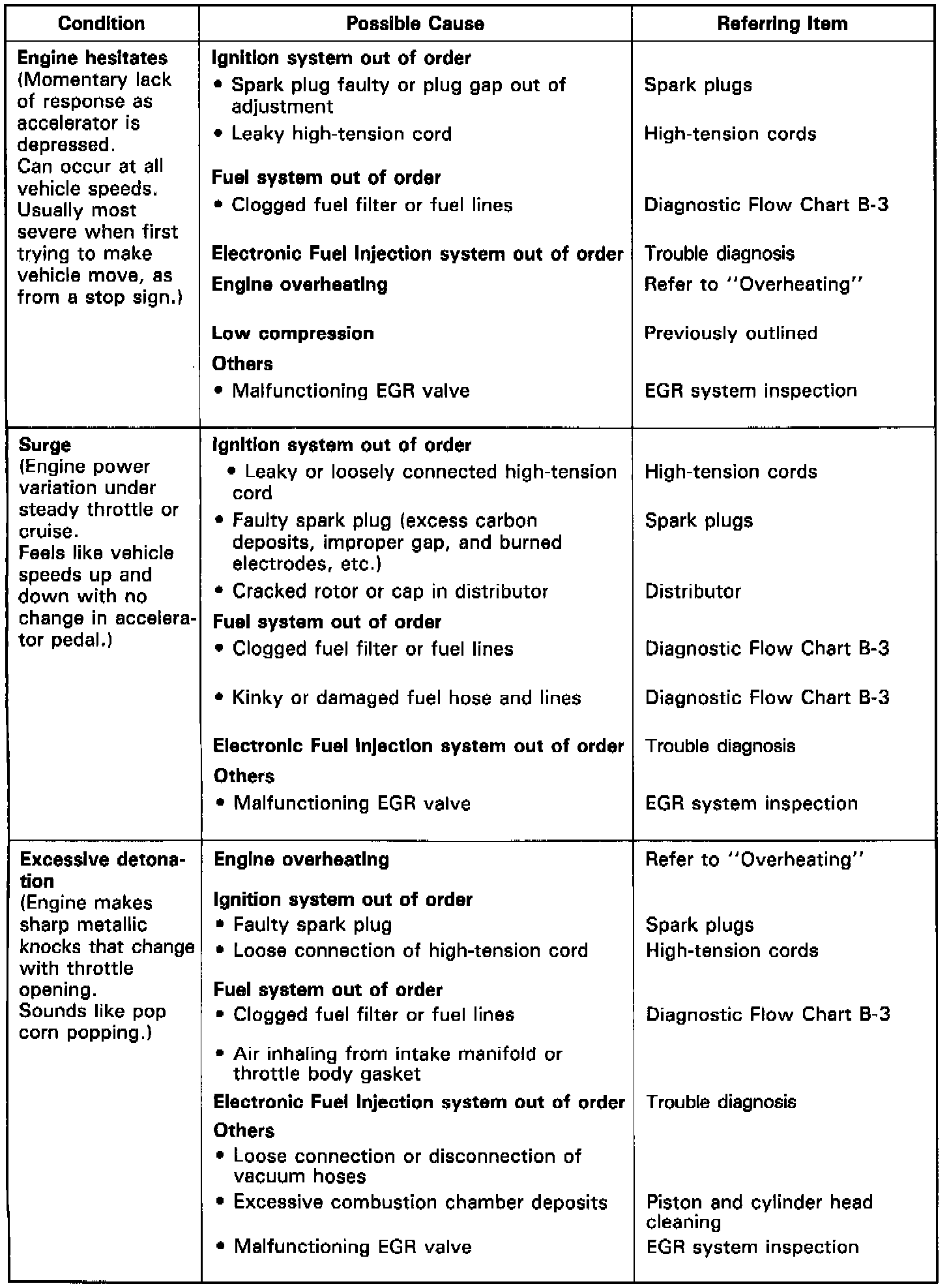

Engine Diagnosis Table (Part 4 Of 4):





ENGINE DIAGNOSIS TABLE
