Engine Control Module




ECM Terminal Identification:

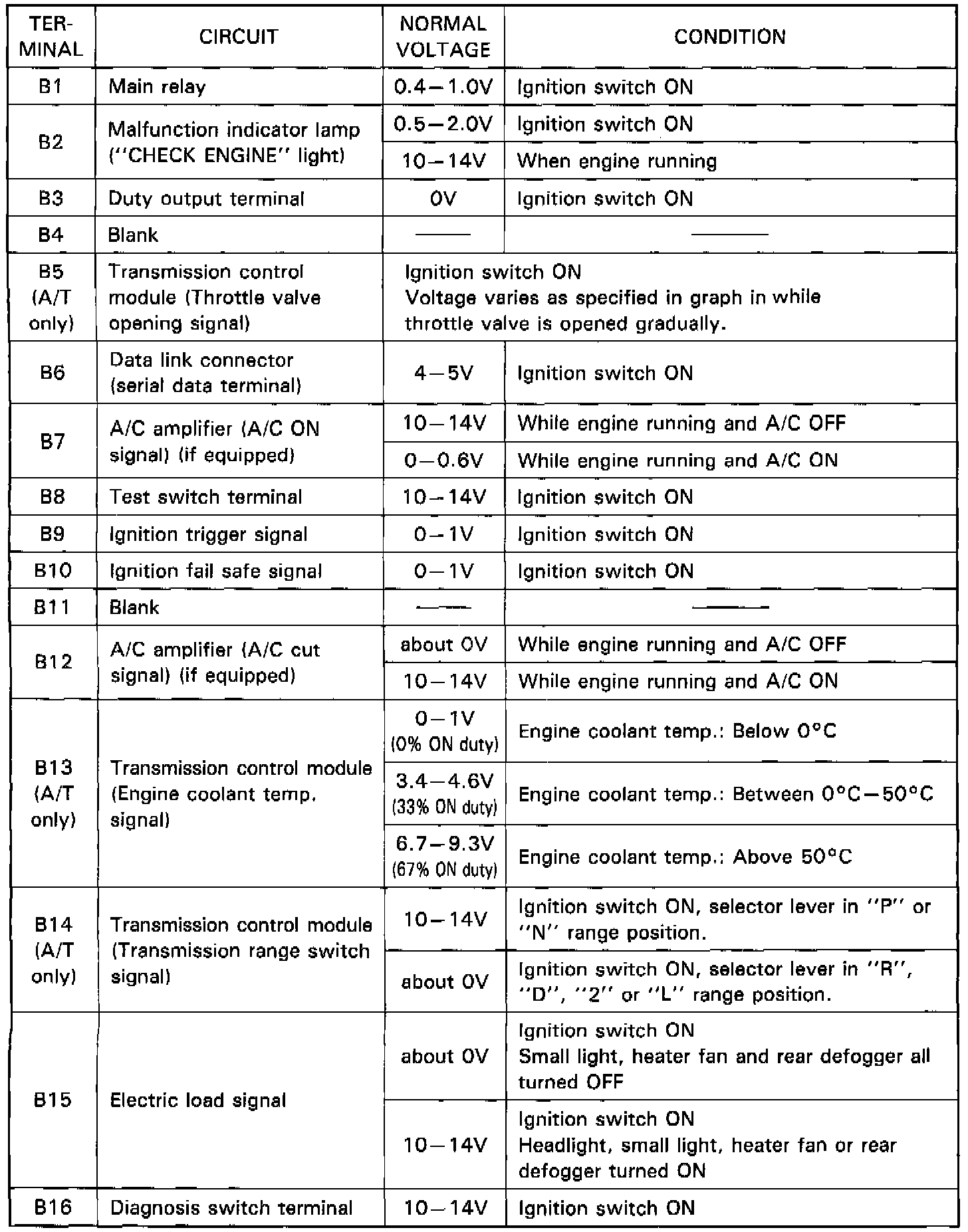

ECM Voltage Values (Part 1 Of 3):

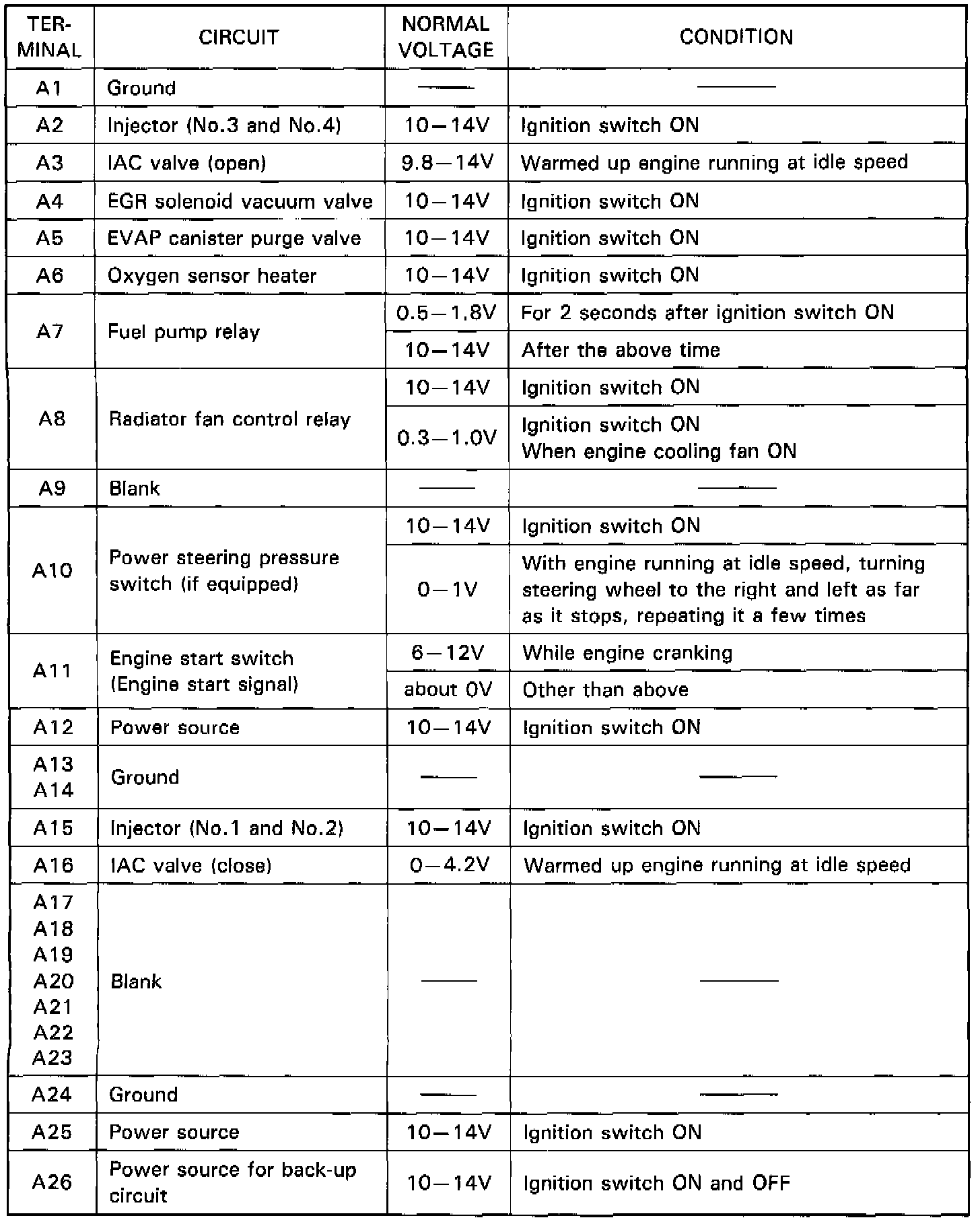

ECM Voltage Values (Part 2 Of 3):

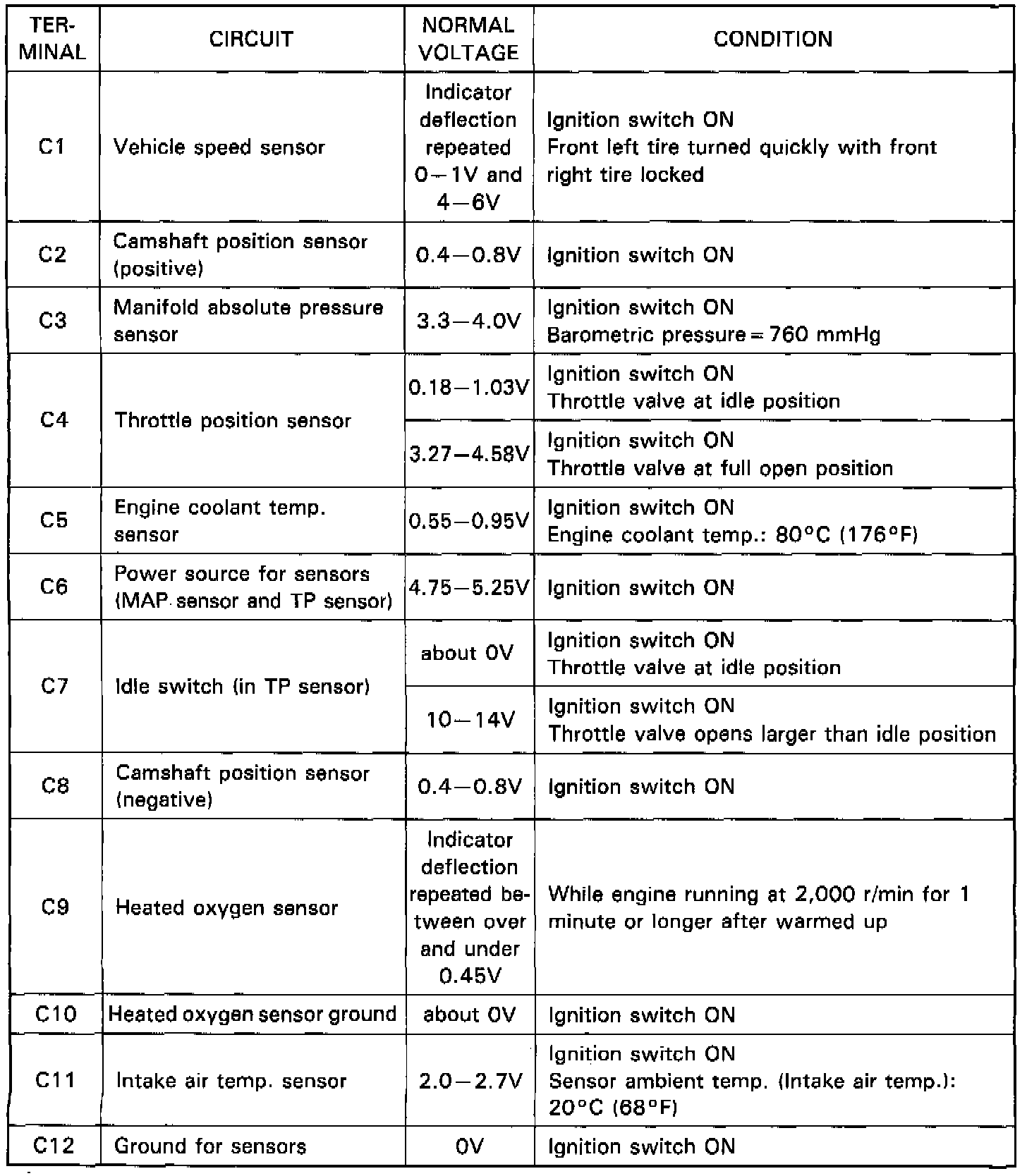

ECM Voltage Values (Part 3 Of 3):

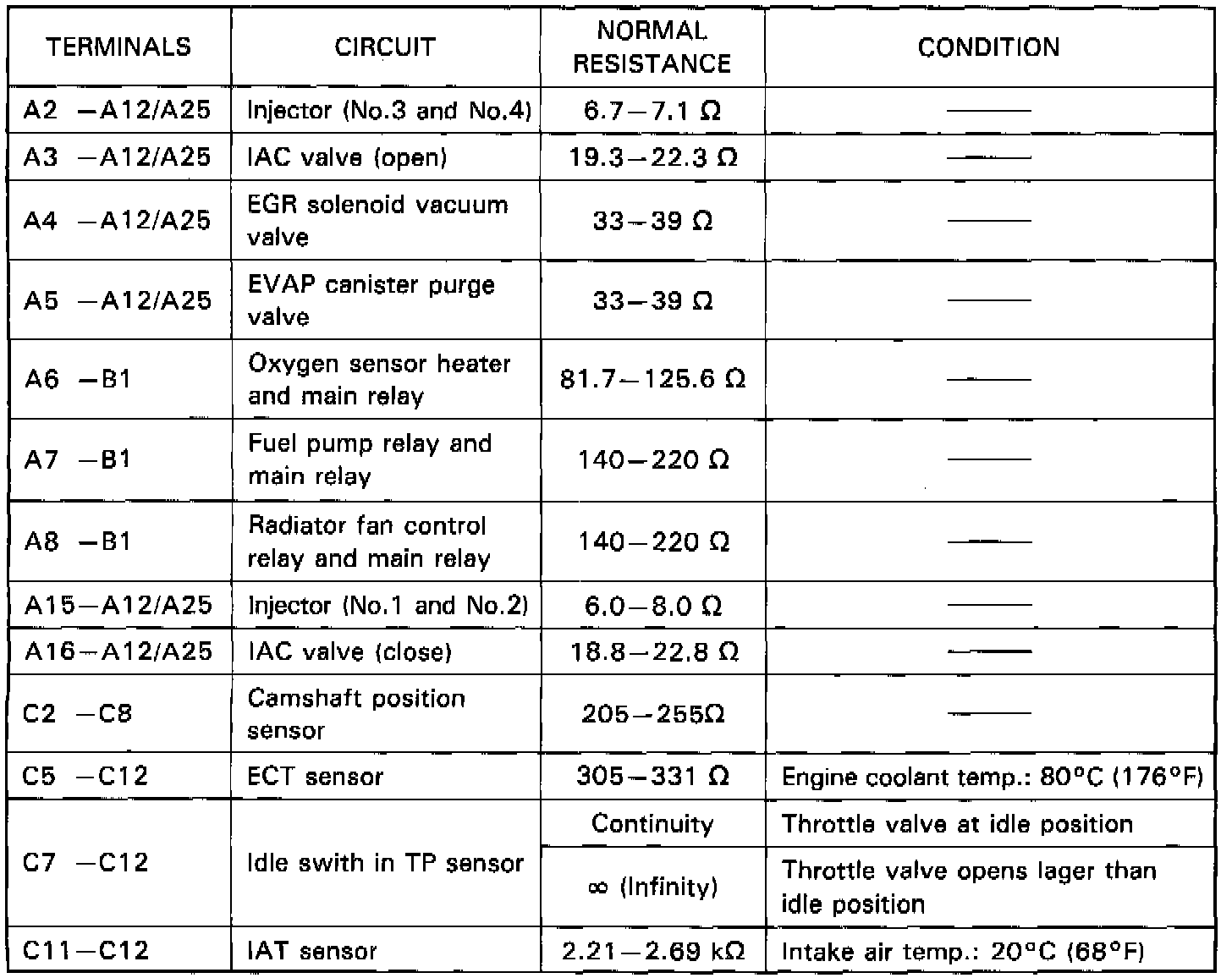

ECM Harness Resistance:
