Transaxle Housing Components: Installation

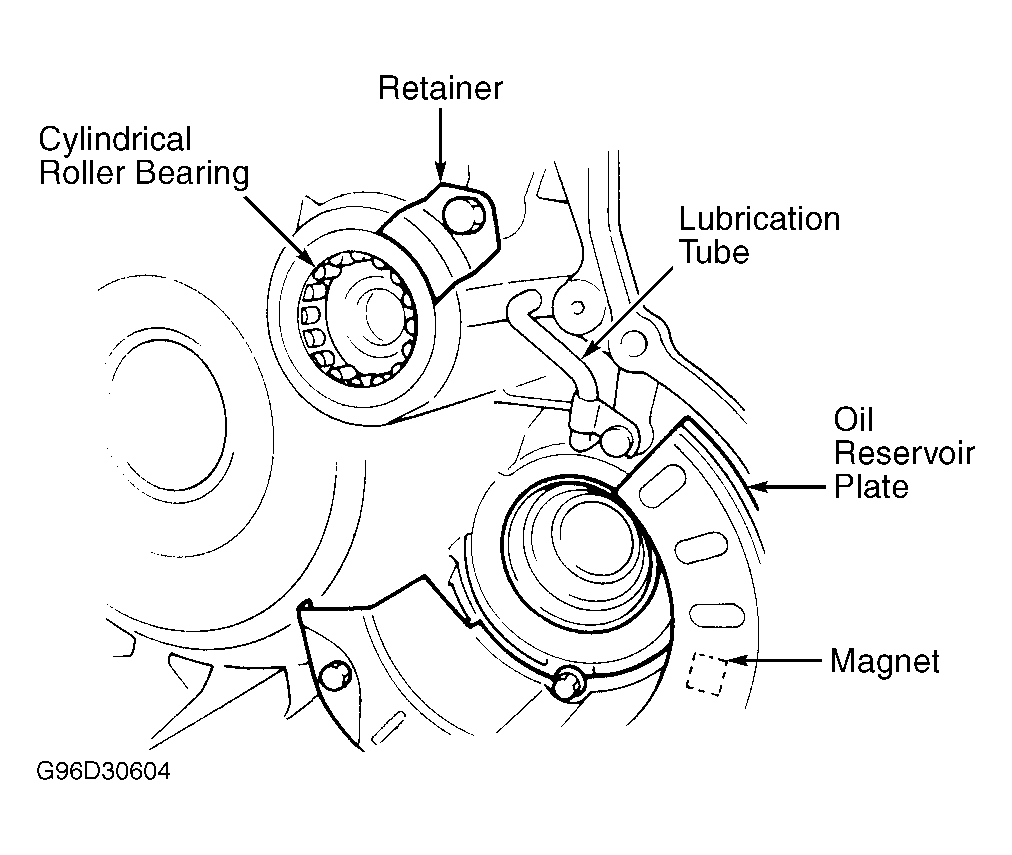

- Apply ATF to outer surface of roller bearing and tap into place with bearing installer. Install roller bearing retainer. Tighten retainer bolt to 120 INCH lbs. (13.6 N.m).
- Install lubrication tube and clamp. Tighten clamp bolt to 48 INCH lbs. (5.4 N.m). Install oil reservoir plate with 3 magnets. Tighten bolts to 48 INCH lbs. (5.4 N.m).
