Connector Identification

WARNING: This page is about a different car, the 1996 Suzuki Esteem. However, it is still accessible from the selected car via links, so may be relevant.

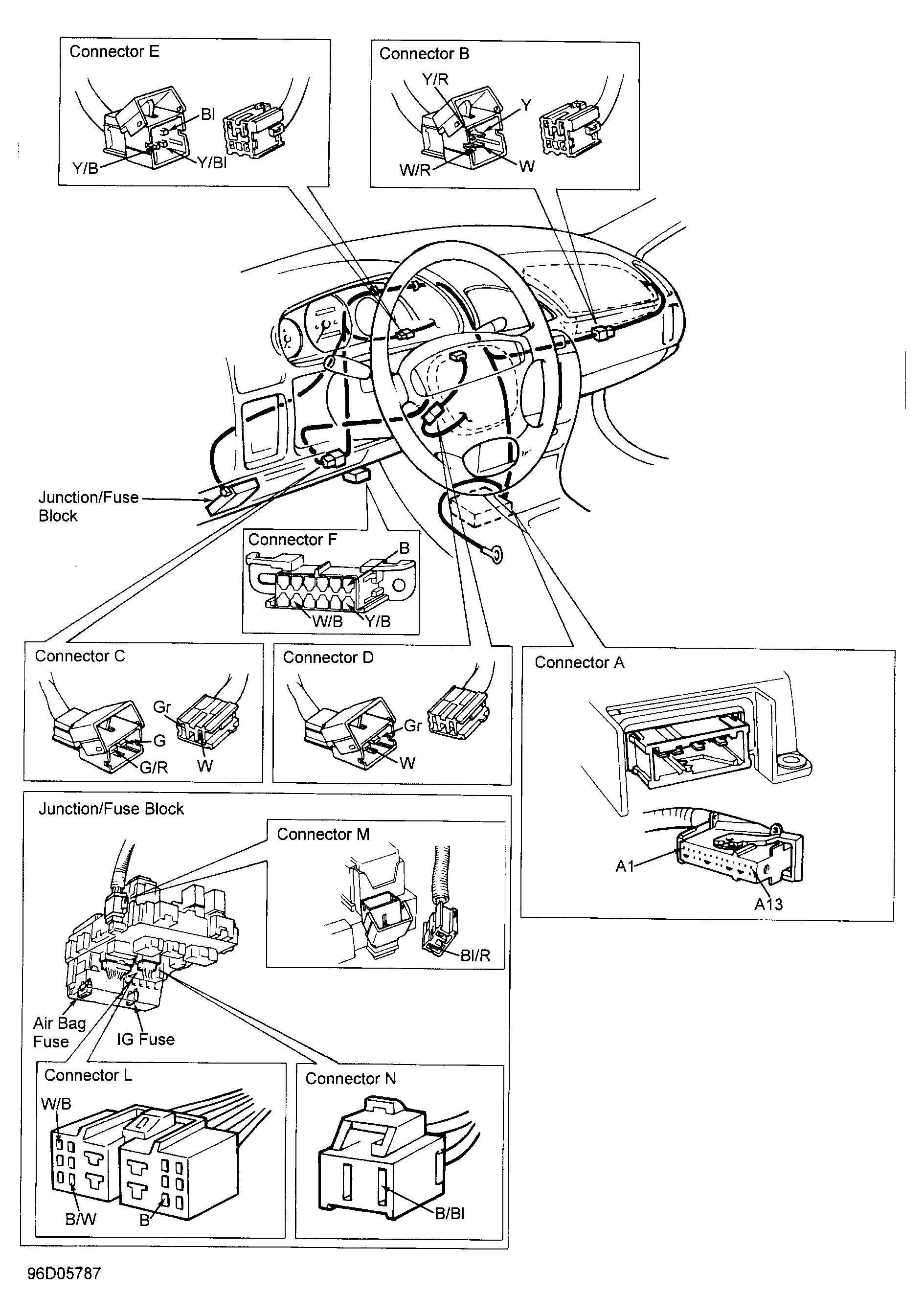

Fig 1: SRS Connector Terminals (Face View)
G96D05787Courtesy of SUZUKI MOTOR CORPORATION
