Chart A-3 - Mil "Check Engine" Circuit Check Mil "Check Engine" Stays On - Won't Flash

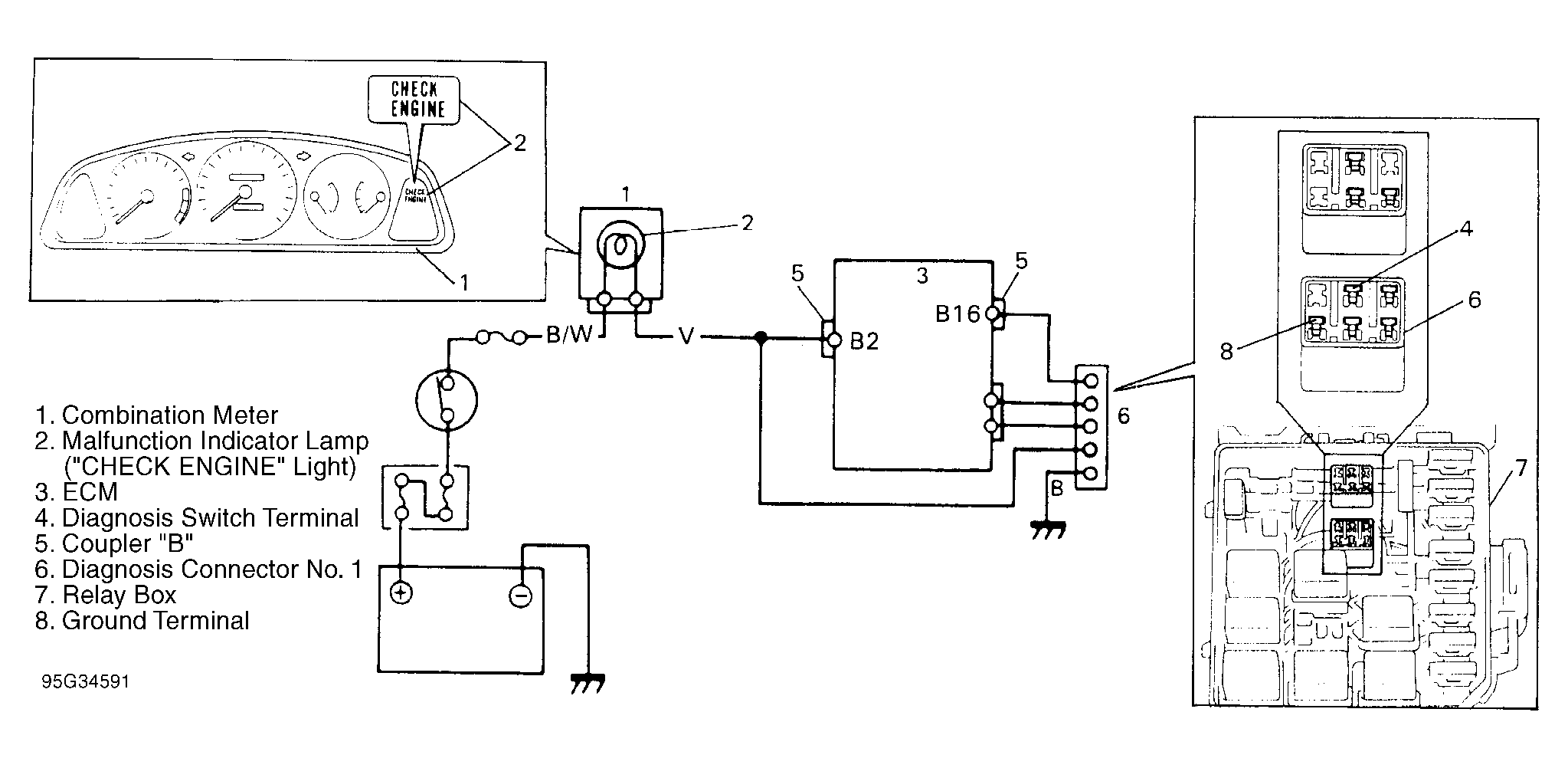

Fig 1: Chart A-3 - Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP

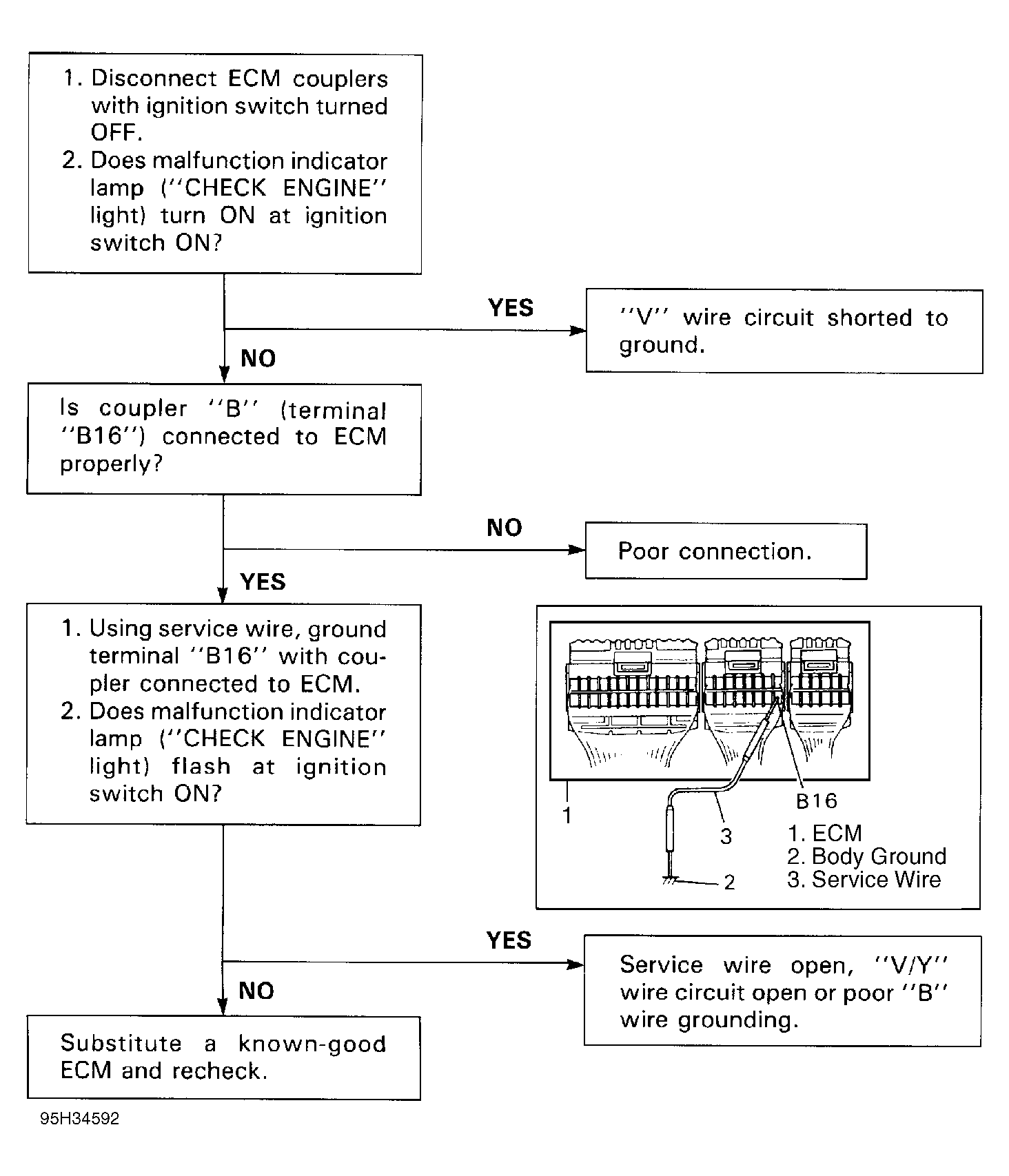

Fig 2: Chart A-3 - Flow Chart

Courtesy of SUZUKI OF AMERICA CORP
