Chart A-1 - ECM Power & Ground CKT Check Mil "Check Engine" Inoperative, Engine Cranks But Does Not Start

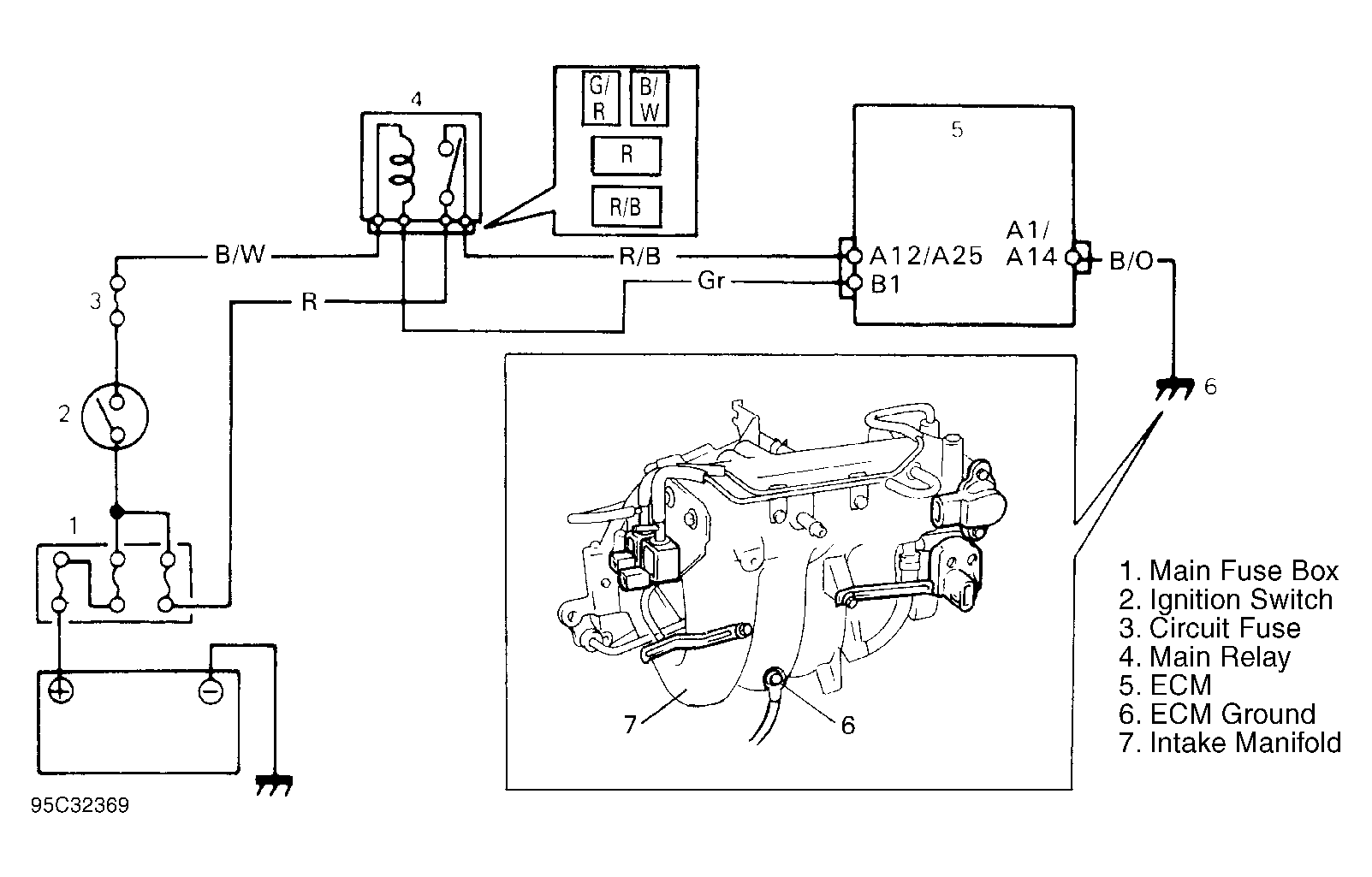

Fig 1: Chart A-1 - Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP

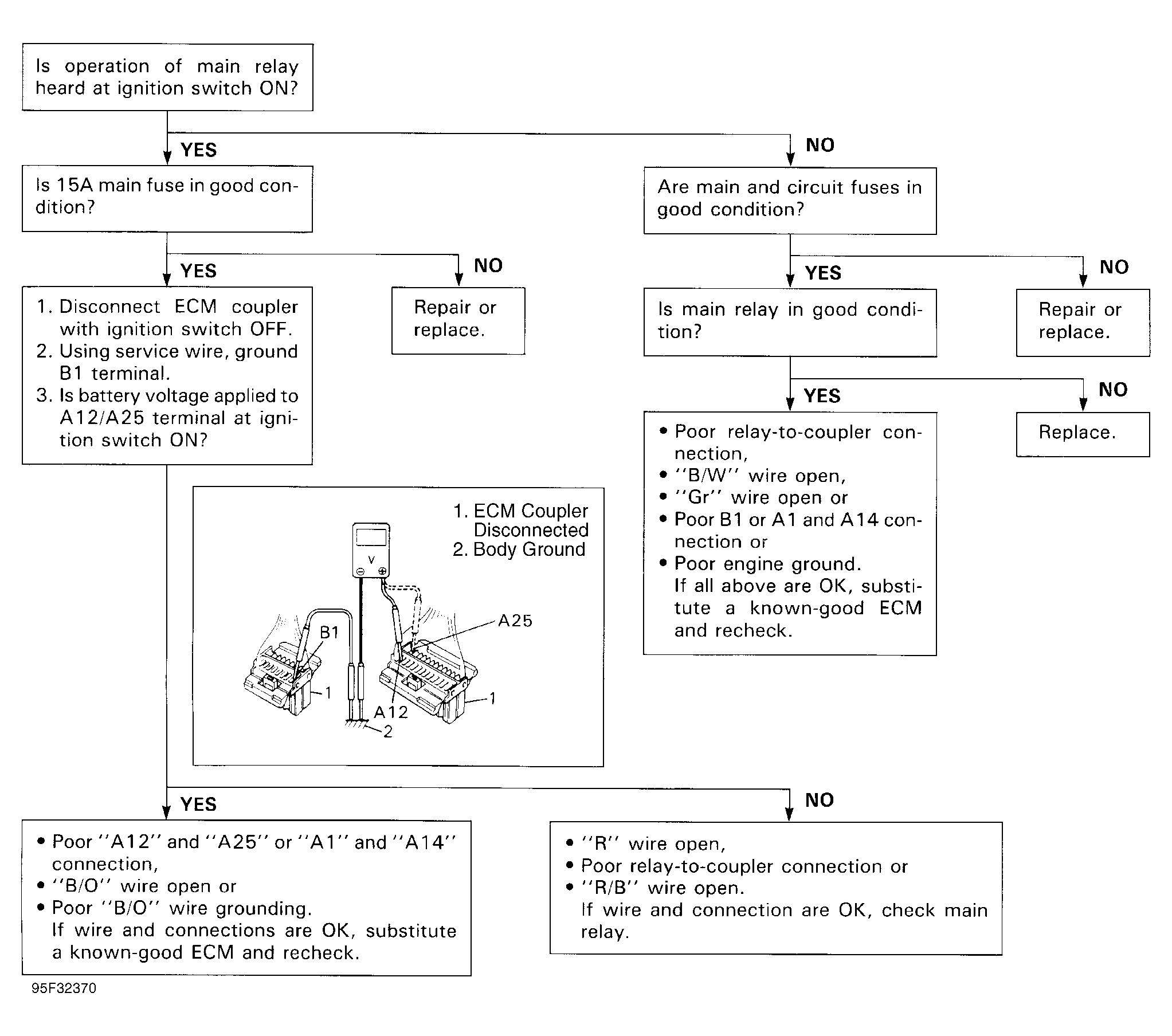

Fig 2: Chart A-1 - Flow Chart

Courtesy of SUZUKI OF AMERICA CORP
