Service Manual Update (TS 02 10063)
Publication date: 2003-10-06Reference number: TS 02 10063
SERVICE MANUAL UPDATE
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 02 10063, Date of Issue:
October 06, 2003
| SUZUKI: | 1995-2001 ESTEEM (SY 416, SY418) |
| SECTION: | Body Electrical |
CONDITION:
INCORRECT WIRING DIAGRAM
CAUSE:
N/A
CORRECTION:
Update listed Service Manuals with corrected wiring diagram.
CORRECTION:

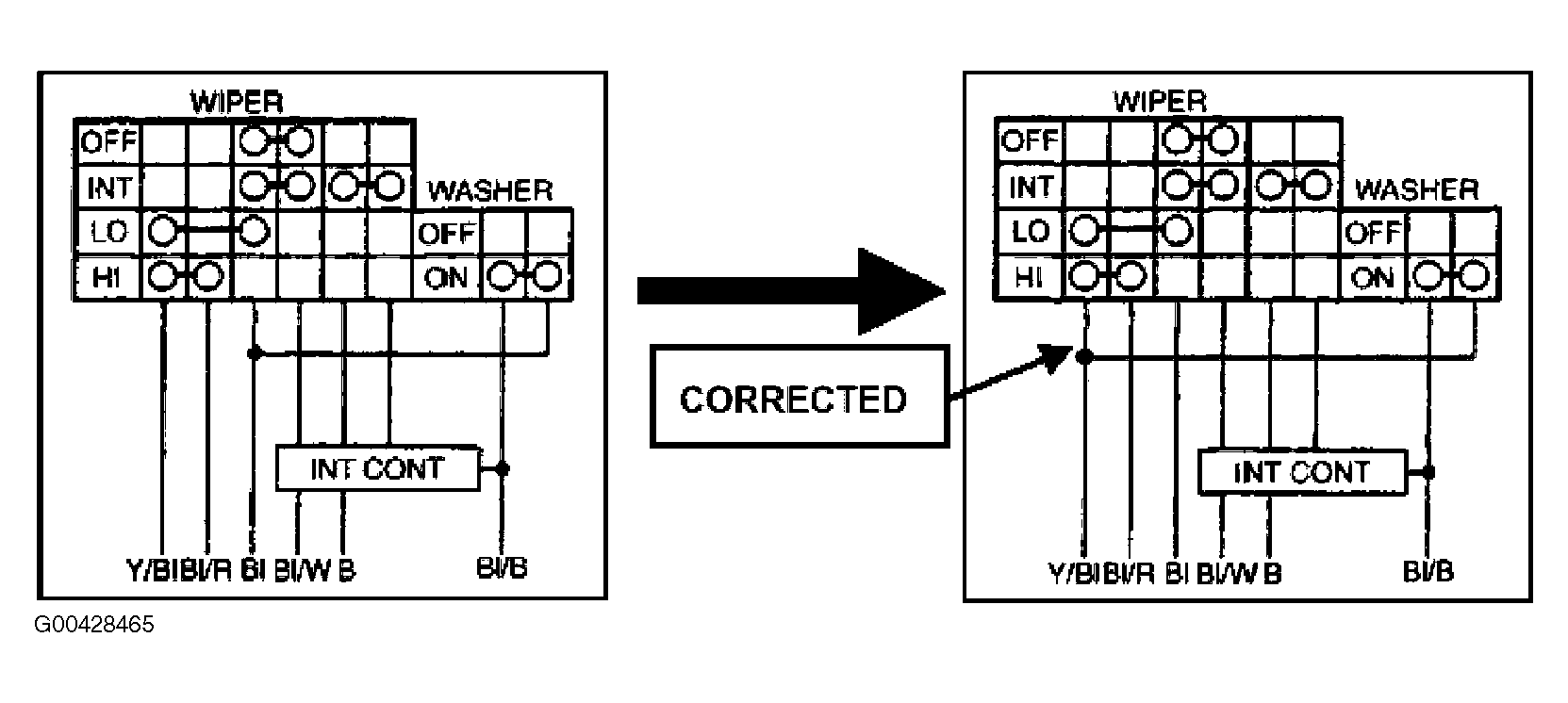

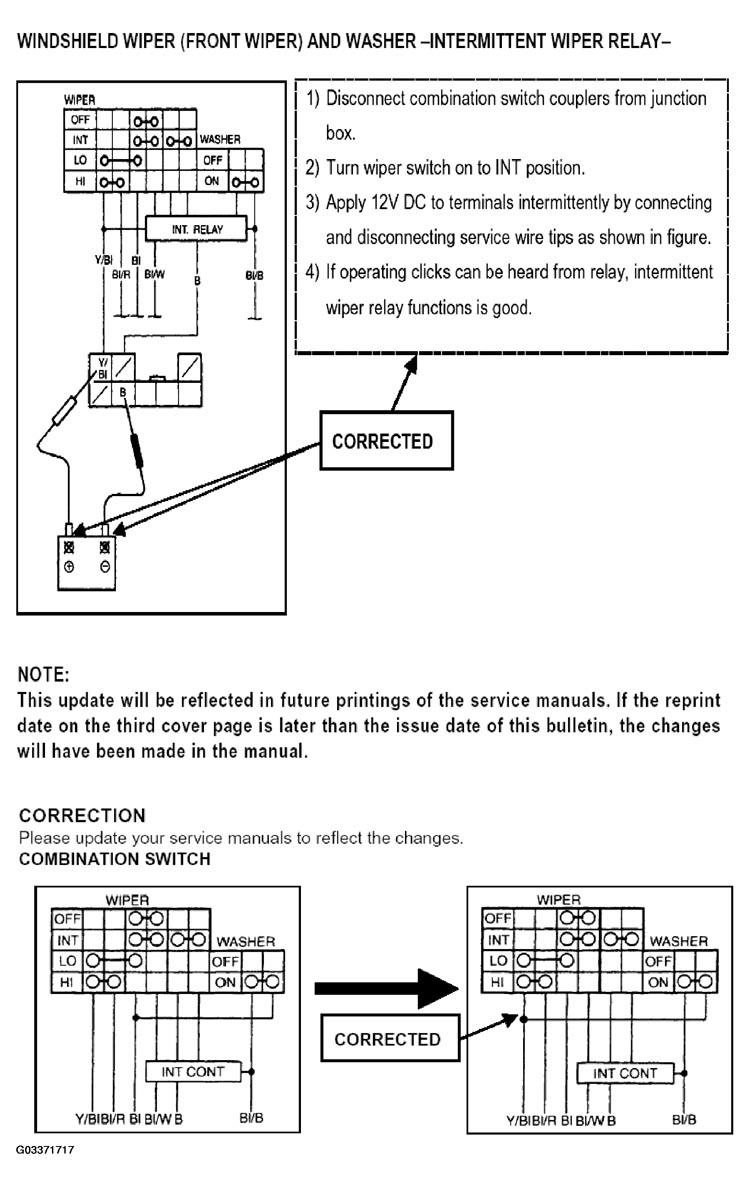

This bulletin is to inform you of a correction to the wiring diagram of the wiper/washer combination switch, and a correction to the wiring diagram and the inspection sentence of the intermittent wiper relay.
AFFECTED SERVICE MANUALS
| Name of Manual | Part Number | Corresponding Page |
|---|---|---|
| 1995 Esteem 1600 Service Manual | 99500-60G00-33E 99500-60G01-33E |
Combination Switch: Page 8-26 Intermittent Wiper Relay: Page 8-41 |
| 1998 Esteem 1600 Supplementary Service Manual | 99501-60G20-33E | Combination Switch: Page 8-4 |
| 1999 Esteem 1800 Supplementary Service Manual | 99501-60G40-33E | Combination Switch: Page 8-7 |
| 1999-2000 Esteem 1600/1800 Service Manual | 99500-60G40-33E | Intermittent Wiper Relay: Page 8D-9 |
| 2001 Esteem 1600/1800 Service Manual | 99500-60G10-33E | Intermittent Wiper Relay: Page 8D-11 |
NOTE:
This update will be reflected in future printings of the service manuals. If the reprint date on the third cover page is later than the issue date of this bulletin, the changes will have been made in the manual.
CORRECTION
