Removal & Installation

WARNING: This page is about a different car, the 1996 Suzuki Esteem. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, read air bag service precautions section. See SERVICE PRECAUTIONS . Disable the SRS system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Sensing and Diagnostic Module (SDM) is located under center console. Disconnect negative battery cable. Remove console box extension. Remove 4 bolts and steering support member lower brace. Disconnect Sensing and Diagnostic Module (SDM) connector. Remove 3 bolts. Remove Sensing and Diagnostic Module (SDM) and SDM plate from vehicle. See Fig 1 .
To install, reverse removal procedure. Tighten SDM bolts. See TORQUE SPECIFICATIONS . Reactivate SRS system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check AIR BAG indicator light to ensure system is functioning properly. See TESTING - SYSTEM OPERATION CHECK .

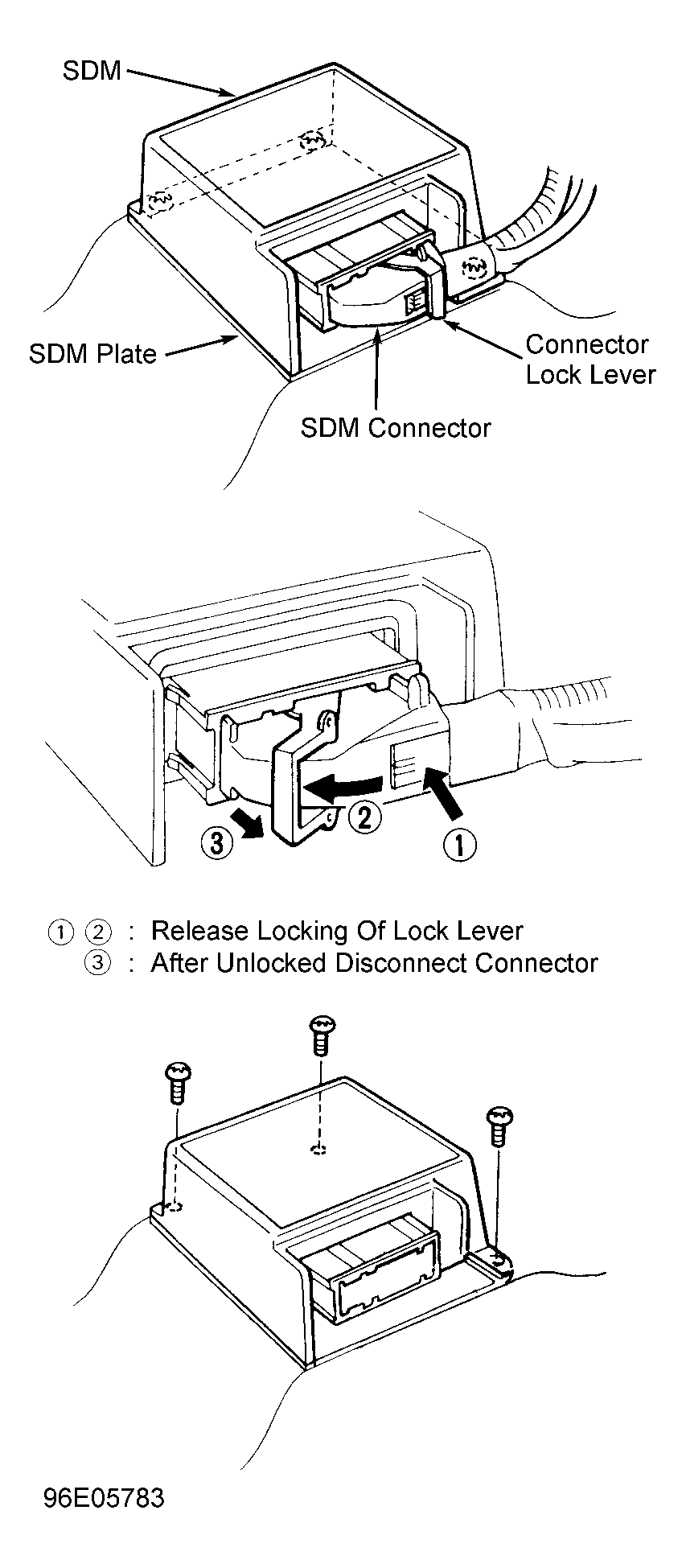

Fig 1: Removing Sensing & Diagnostic Module (SDM)

Courtesy of SUZUKI MOTOR CORPORATION
