ECM Pinout/Terminal ID Charts

ECM Connector Terminal Position (View From Wire Harness Side):

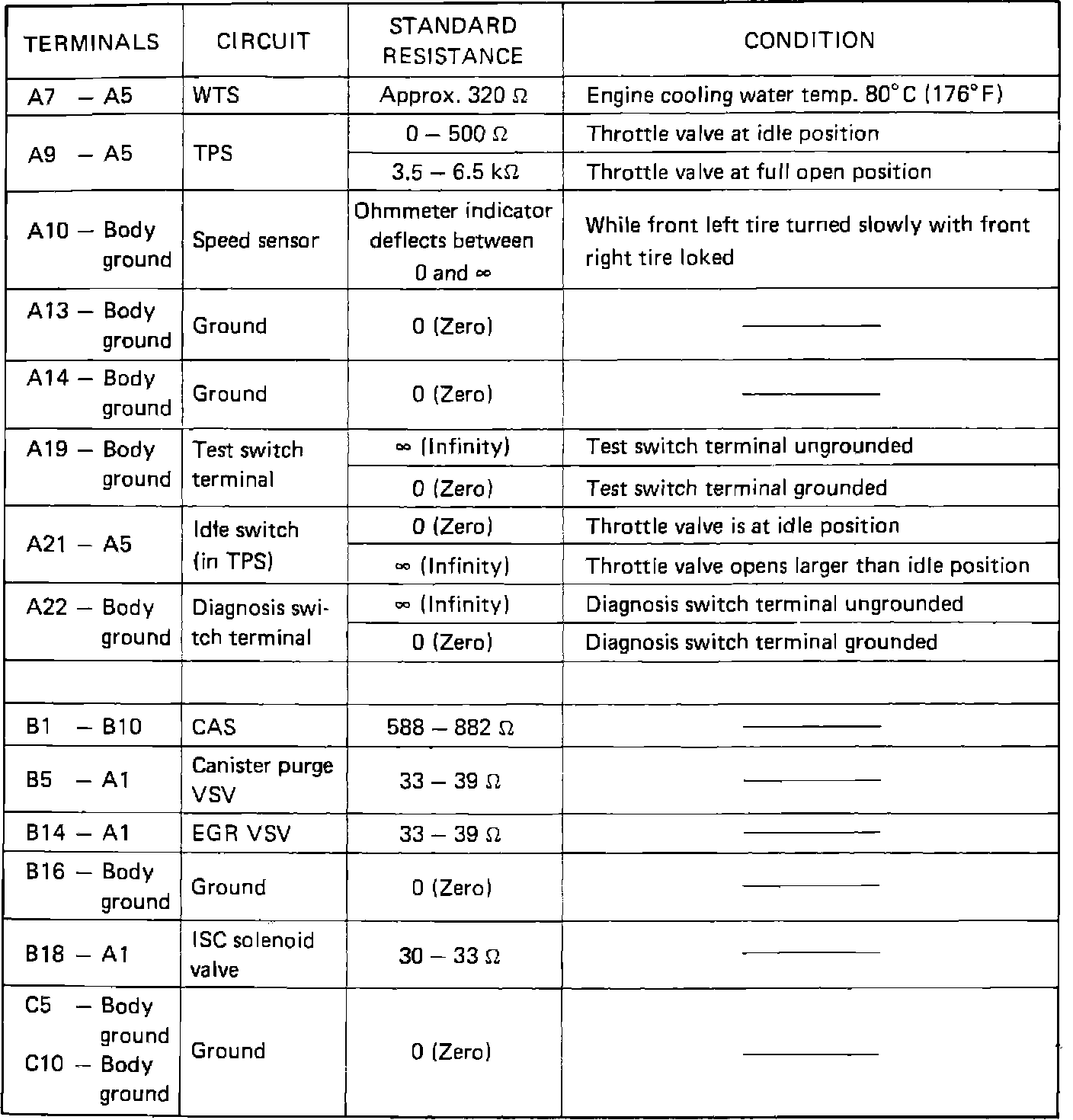

Resistance At ECM Connectors:

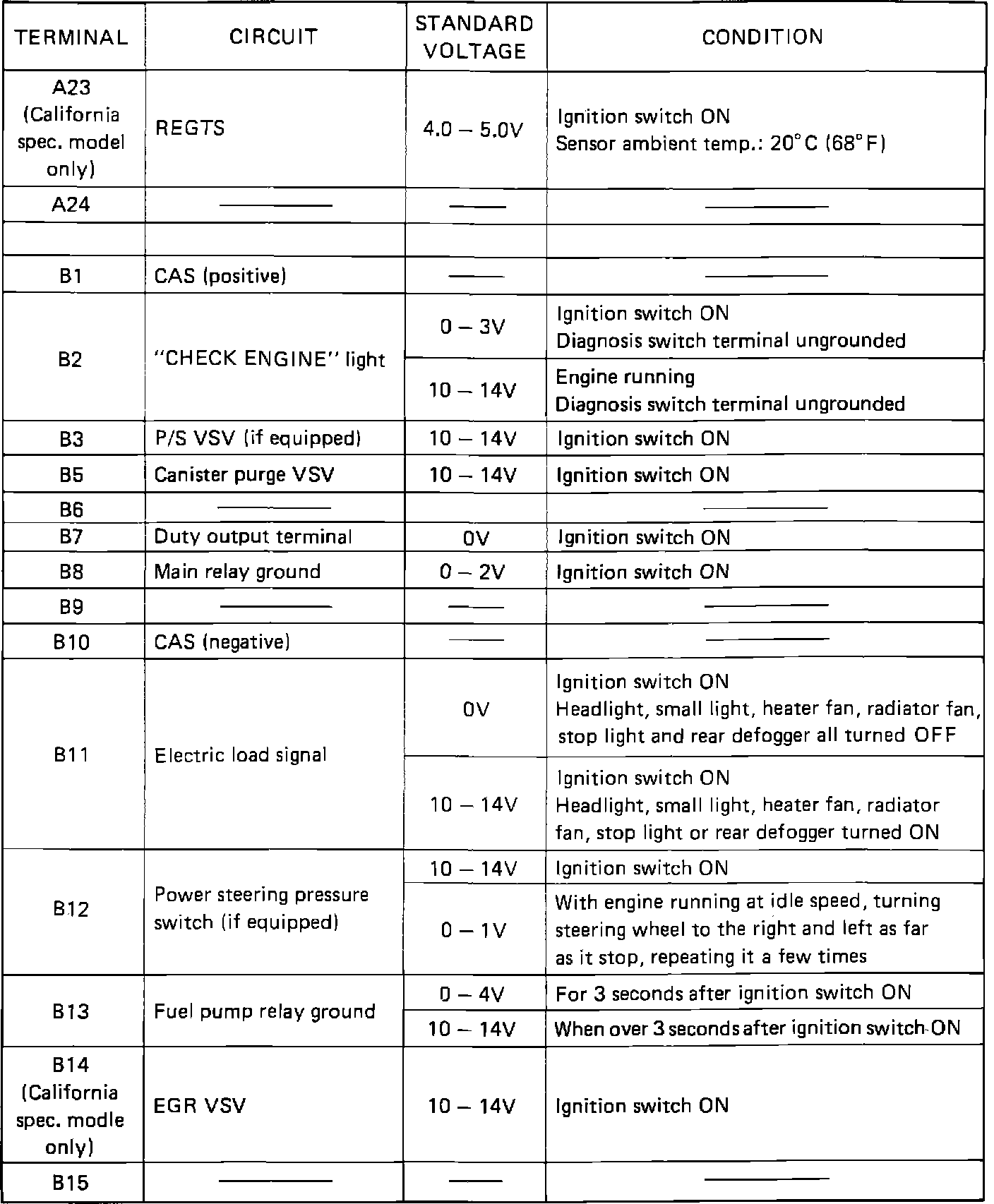

ECM Terminal Voltage Values:

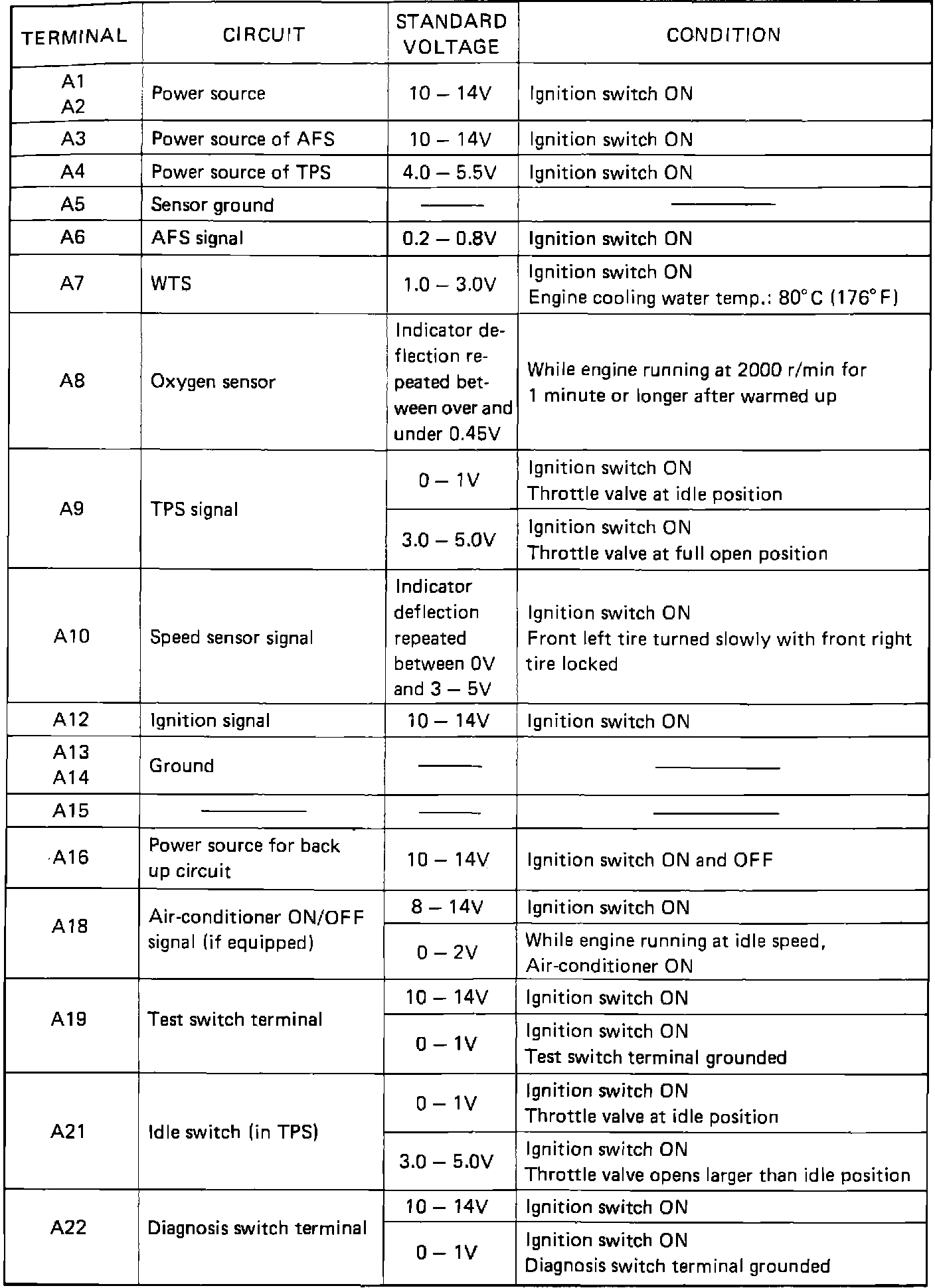

ECM Terminal Voltage Values:



ECM Terminal Voltage Values:
