BACKDRIVE Solenoid
- Remove center console. Solenoid should be adjusted so when
ignition switch is in OFF position, solenoid is inoperative. With
ignition on and brake pedal depressed, solenoid should be engaged and

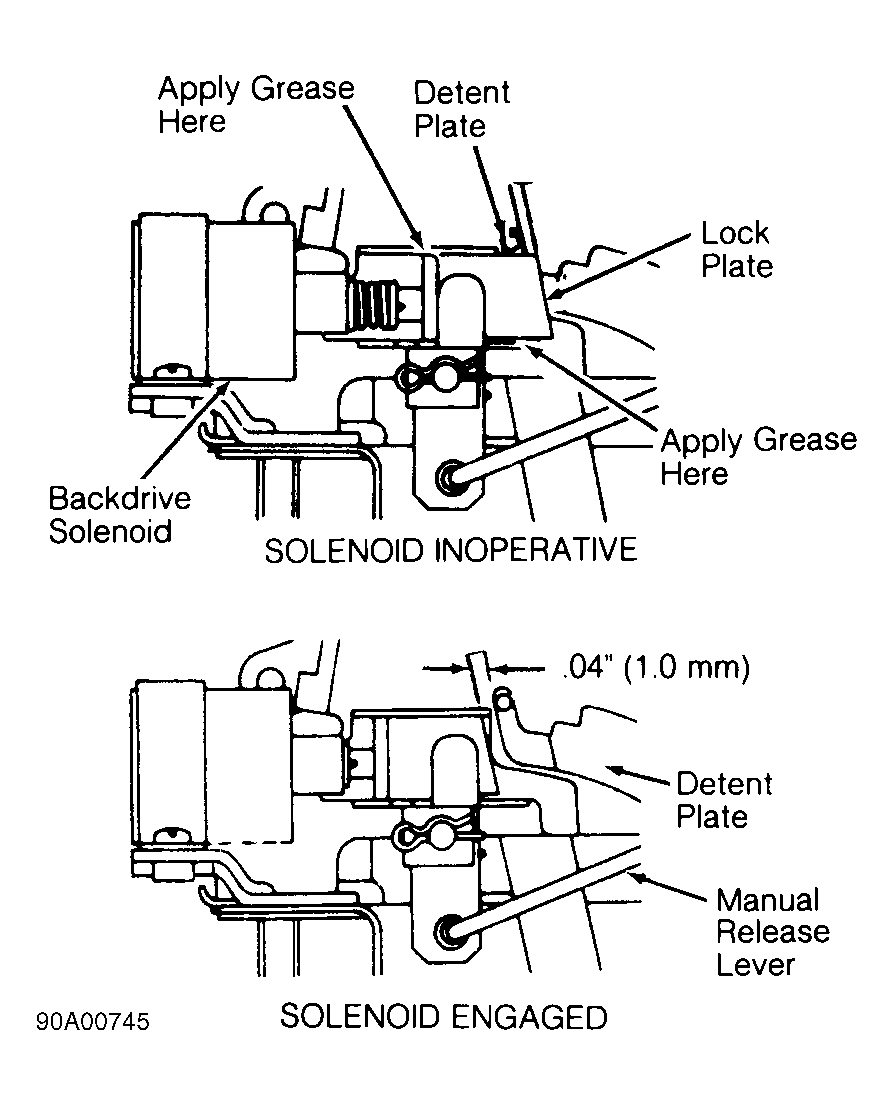

lock plate will be in correct position. See Fig 1
.
Courtesy of SUZUKI OF AMERICA CORP.
- Clearance between lock plate and detent plate should be more
than .04" (1.0 mm). If clearance requires adjustment, loosen solenoid
mounting screws and reposition solenoid.
- With ignition off, gearshift should not shift from Park. If
manual release lever is pulled with ignition off, gearshift should
move from Park to other gear positions.
