Chart A-1 - Check Engine Light Inoperative, (Does Not Start)

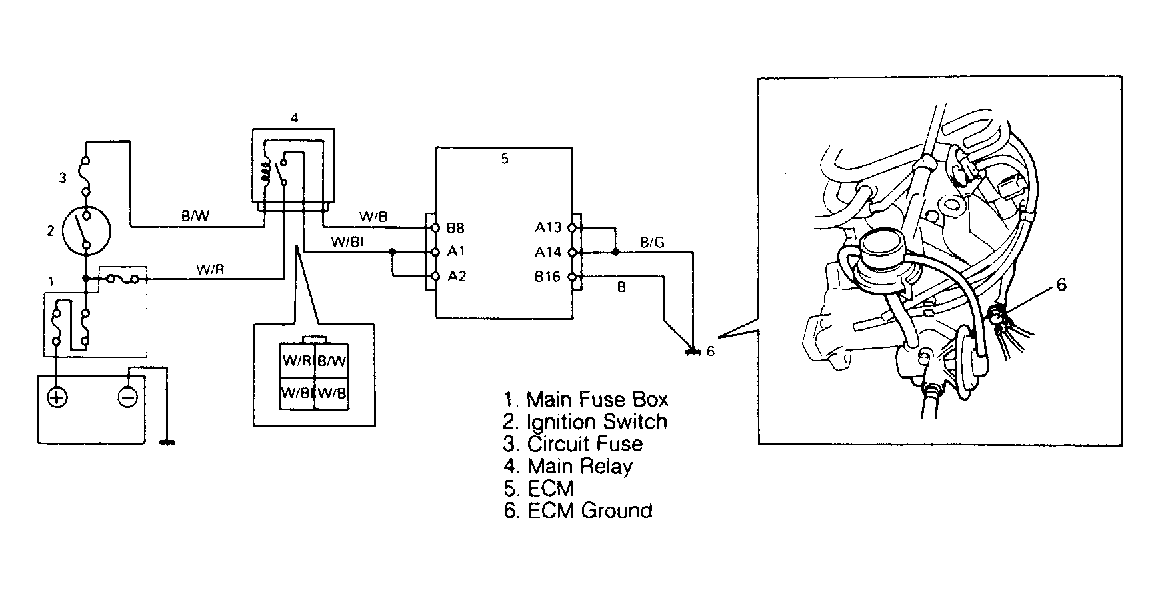

Fig 1: Chart A-1, Schematic - ECM Power Supply & Ground Circuit Check

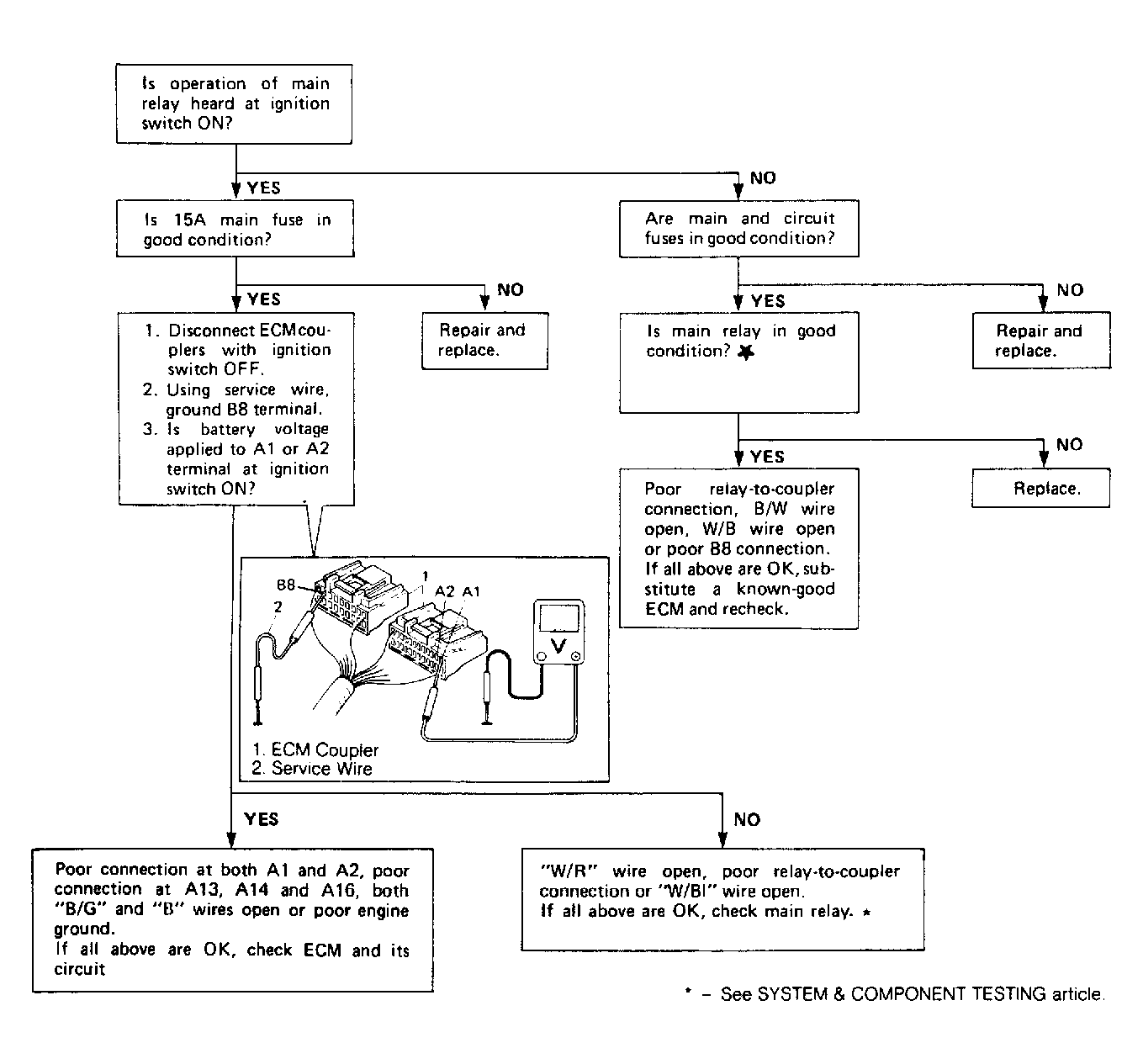

Fig 2: Chart A-1, Flow Chart - ECM Power Supply & Ground Circuit Check
