Diagnosis & Overhaul - EEC/MX1: Wiring Diagram

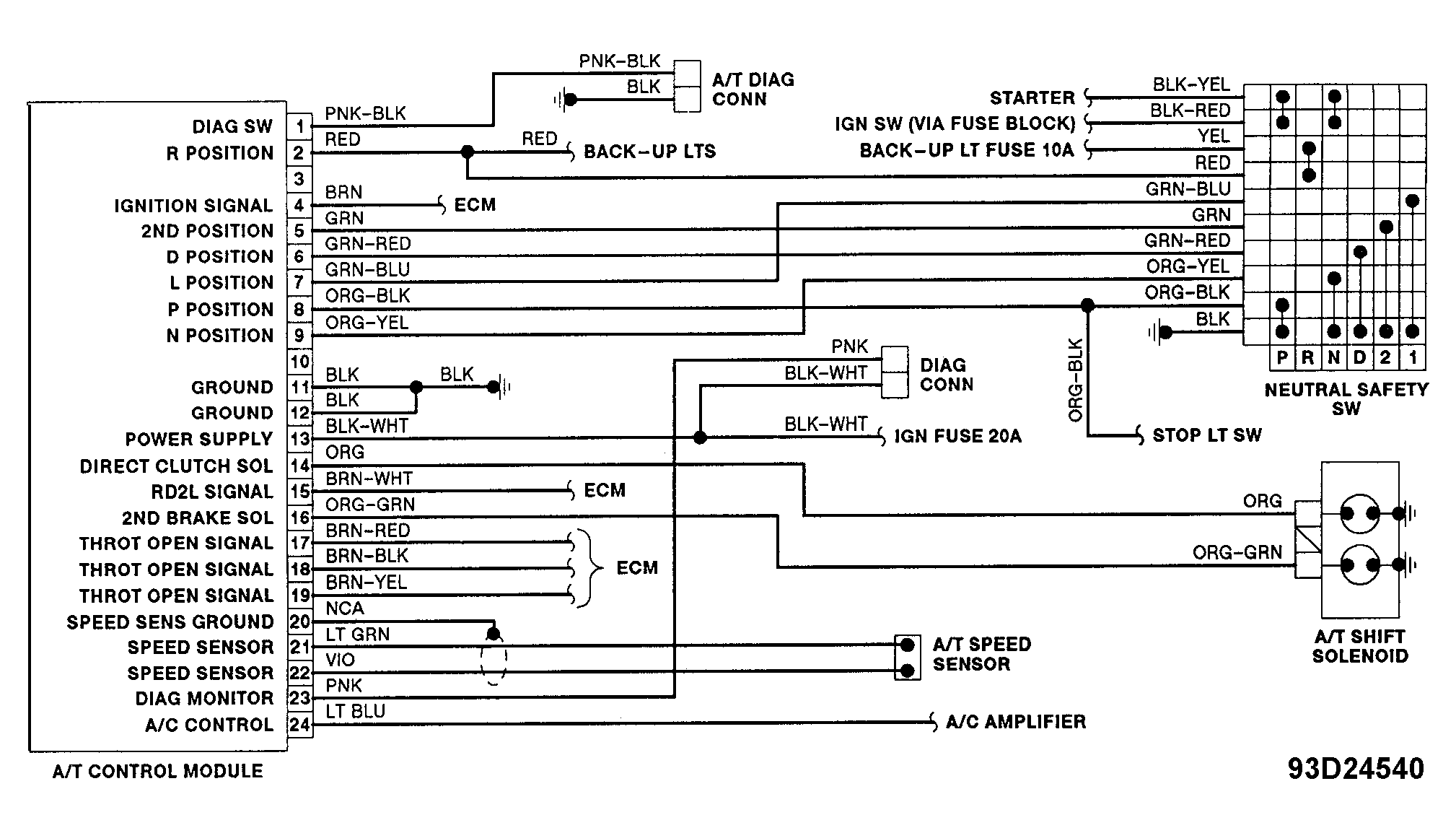

Fig 1: Suzuki Swift Transmission Control System Wiring Diagram
G93D24540Courtesy of SUZUKI OF AMERICA CORP.
