Torque Specifications
WARNING: This page is about a different car, the 1992 Geo Metro, 1991 Geo Metro, and 1990 Geo Metro. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| A/C Compressor Mounting Bolt |
| 12-mm Bolt |
21 (29) |
| 14-mm Bolt |
33 (45) |
| Axle Shaft Nut |
129 (175) |
| Ball Joint-to-Steering Knuckle Nut |
44 (60) |
| Camshaft Sprocket Bolt |
44 (60) |
| Connecting Rod Nut |
26 (35) |
| Crankshaft Sprocket Bolt |
81 (110) |

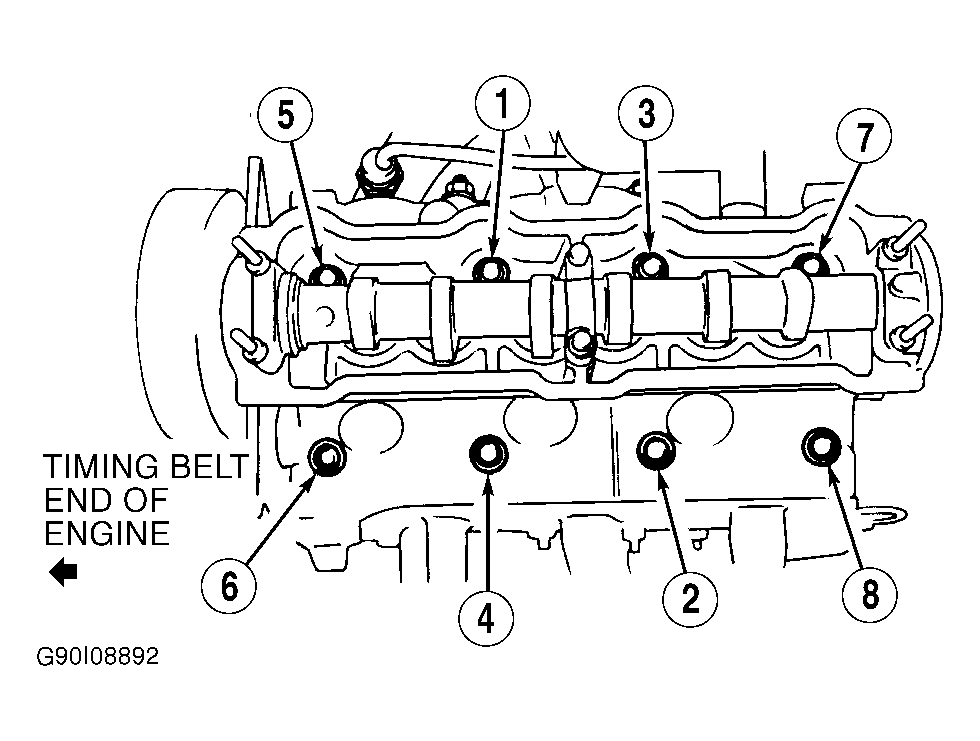

| Cylinder Head Bolt |
54 (73) |
| Exhaust Manifold Bolt/Nut |
17 (23) |
| Flywheel Bolt |
45 (61) |
| Intake Manifold Bolt/Nut |
17 (23) |
| Main Bearing Cap Bolt |
40 (54) |
| Spark Plug |
18 (24) |
| Tensioner Bolt |
20 (27) |
| Wheel Lug Nut |
44 (60) |
| INCH Lbs. (N.m) |

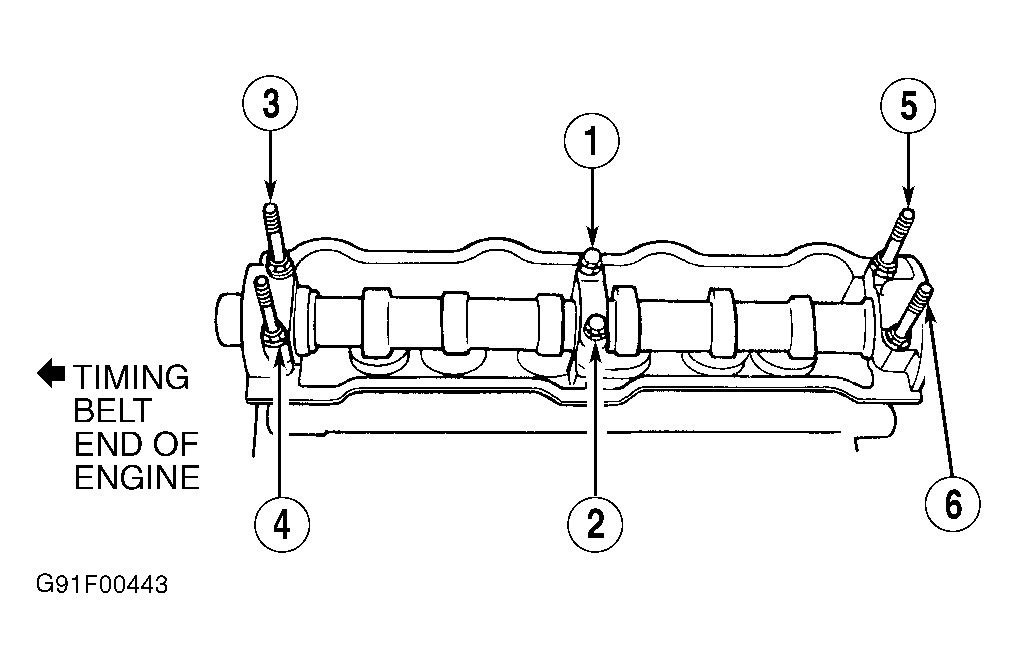

| Camshaft Bearing Cap Bolt |
96 (11) |
| Crankshaft Pulley Bolt |
96 (11) |
| Oil Pan Bolt |
96 (11) |
| Oil Pump Cover Bolt |
96 (11) |
| Oil Pump Pick-Up Tube Bolt |
96 (11) |

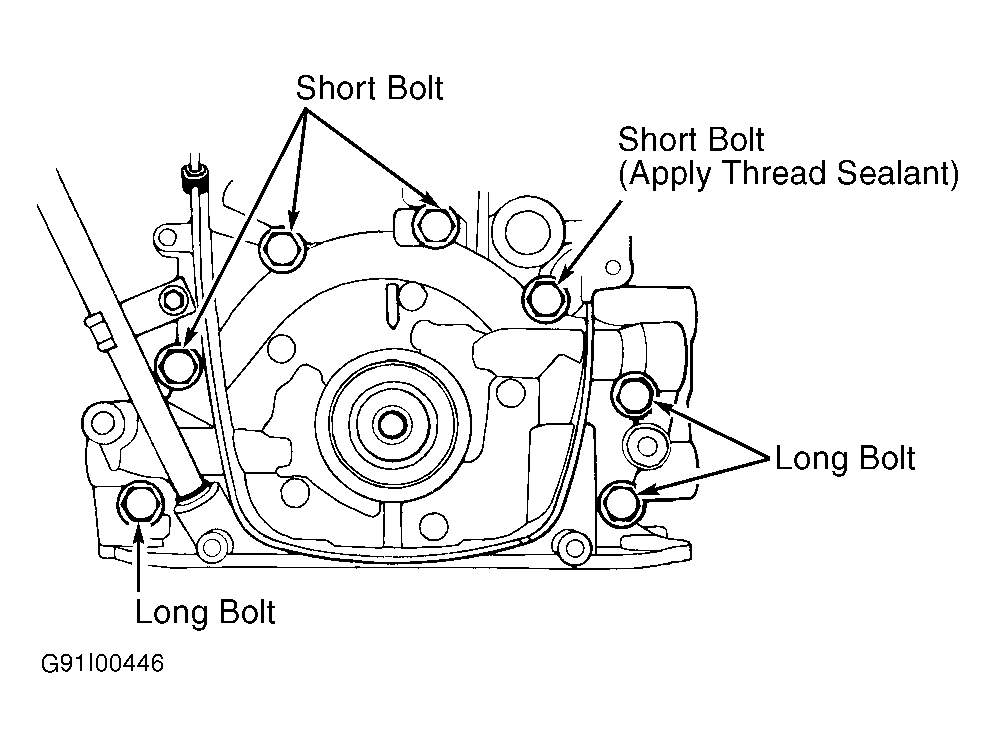

| Oil Pump Mounting Bolt |
96 (11) |
| Tensioner Stud |
96 (11) |
| Timing Belt Cover Bolt |
96 (11) |
| Valve Cover Bolt |
44 (5) |
| Water Pump Bolt |
96 (11) |
