MODIFICATION OF MANIFOLD ABSOLUTE PRESSURE SENSOR
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 4-22 07084, Date of Issue:
MODIFICATION OF MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
Model(s): Suzuki Swift SOHC January 1994 Production And Later
Bulletin No.: TS 4-22 07084
Division: Automotive
Category: Technical
Section Title: Engine
CONDITION
Change in MAP sensor.
CAUSE
Factory modification.
CORRECTION
When ordering new parts, please use the parts listed in this bulletin.
This bulletin is to inform you of the modification of the Manifold Absolute Pressure (MAP) sensor (pressure sensor) which has been in effect since January 1994 production.
MODELS AFFECTED
| Effected VIN | Vehicle Type |
|---|---|
| JS2AE35S_R5103000- | 1.3L, 4-door |
| JS2AC35S_R5100028- | 1.3L, 3-door |
MODIFIED PARTS

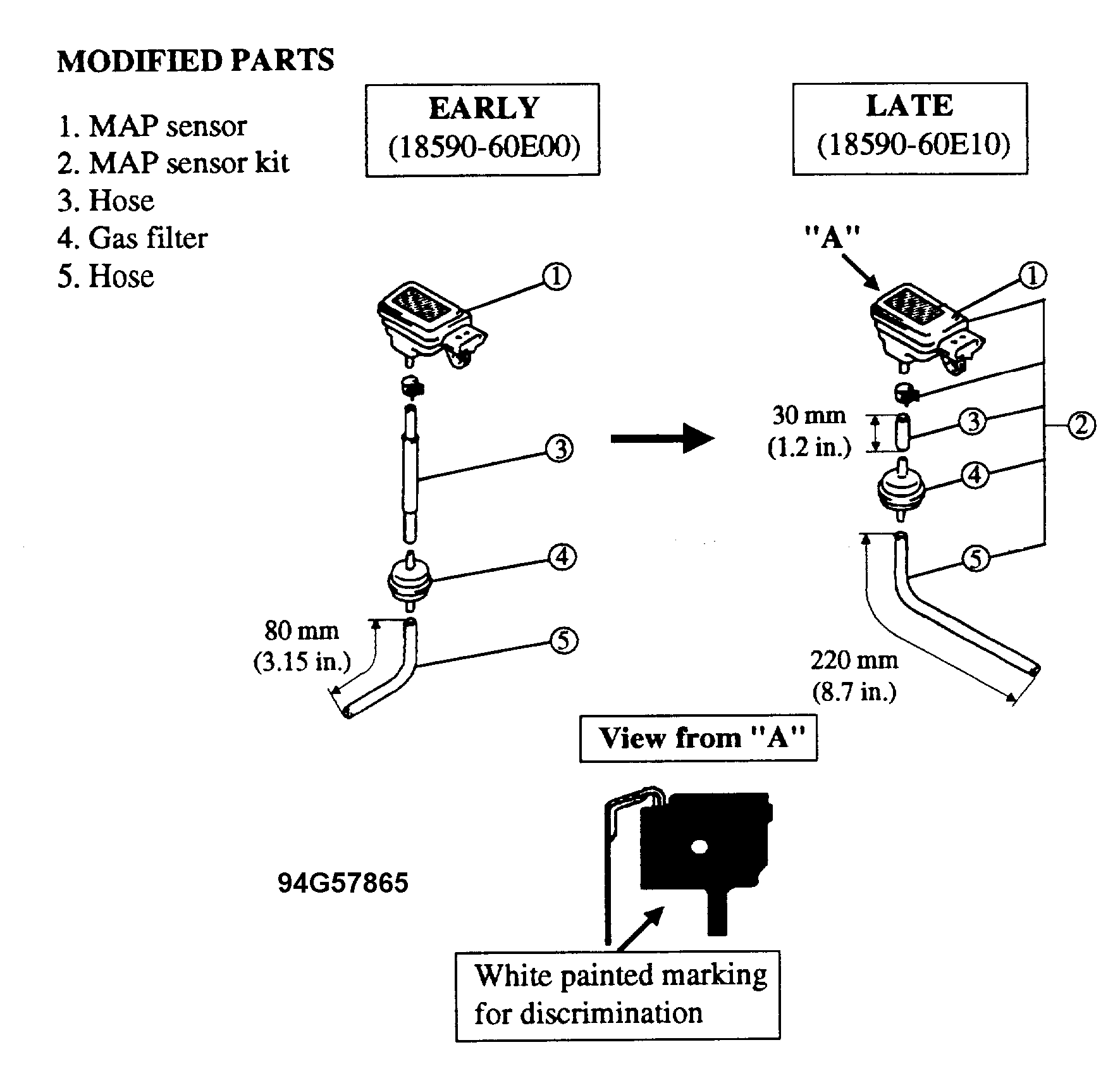

Refer toFig 1
- MAP sensor
- MAP sensor kit
- Hose
- Gas filter
- Hose
NOTE:
If a white dot exists on the MAP sensor as shown in Fig 1
even when the I.D. number indicates an early type, use the assembly procedure for the late type.
SERVICING
- When replacing the MAP sensor, be sure to remove the gas filter, clip and hoses and replace them as a kit. Refer to PARTS SUPPLY DATA below and diagram in Fig 1
- When assembling the MAP sensor kit, refer to "INSTALLATION INSTRUCTIONS" supplied with the kit.
PARTS SUPPLY DATA
PARTS INFORMATION
| REF# | PART NAME | EARLY PART NO. | LATE PART NO. | # | SUPPLY OF SPARE PARTS | INTERCHANGE- ABILITY (O:OK, X:NO) |
|---|---|---|---|---|---|---|
| 1 | Pressure sensor | 18590-60E00 | --- | 1 | Late Only | Early-X->LateEarly<-O-Late |
| 2 | Pressure sensor kit | --- | 18500-60810 | 1 | --- | Early-X->LateEarly<-O-Late |
| 3 | Hose | 18466-60B00 | See Note: 09358-35754-300 | 1 | Both EarlyAnd Late | Early-X->LateEarly<-X-Late |
| 4 | Gas filter | 18133-81150 | <---- | 1 | --- | --- |
| 5 | Protector | --- | See Note: 09351-80101-300 | 1 | Late Only | --- |
| 6 | Hose | See Note: 09358-35754-300 | <--- | 1 | --- | --- |
| When installing the hoses and protector be sure to cut them to the length indicated in -Fig 1 | ||||||
