MODIFICATION OF HOOD AND HOOD LATCH

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 1-08 09164, Date of Issue:

Model(s): Suzuki Sidekick July 1994 And Later Production

Bulletin No.: TS 1-08 09164

Division: Automotive

Category: Technical

Section Title: Body and Frame

Changes in hood and hood latch.

Factory modification.

When installing new parts, please refer to the information in this bulletin.

This bulletin is to inform you of the modification of the hood and hood latch which has been carried out since July 1994 production.

JS3TE02V_R4101539-

JS3TE02V_S4100183-

JS3TD03V_R4114331-

JS3TD03V_S4102043-

2S3TA01C_S6400001-

2S3TA02C_S6400001-

2S3TC01C_S6400001-

2S3TC02C_S6400001-

2S3TE02V_S6400001-

2S3TD03V_S6400001-

Refer to Fig 1 .

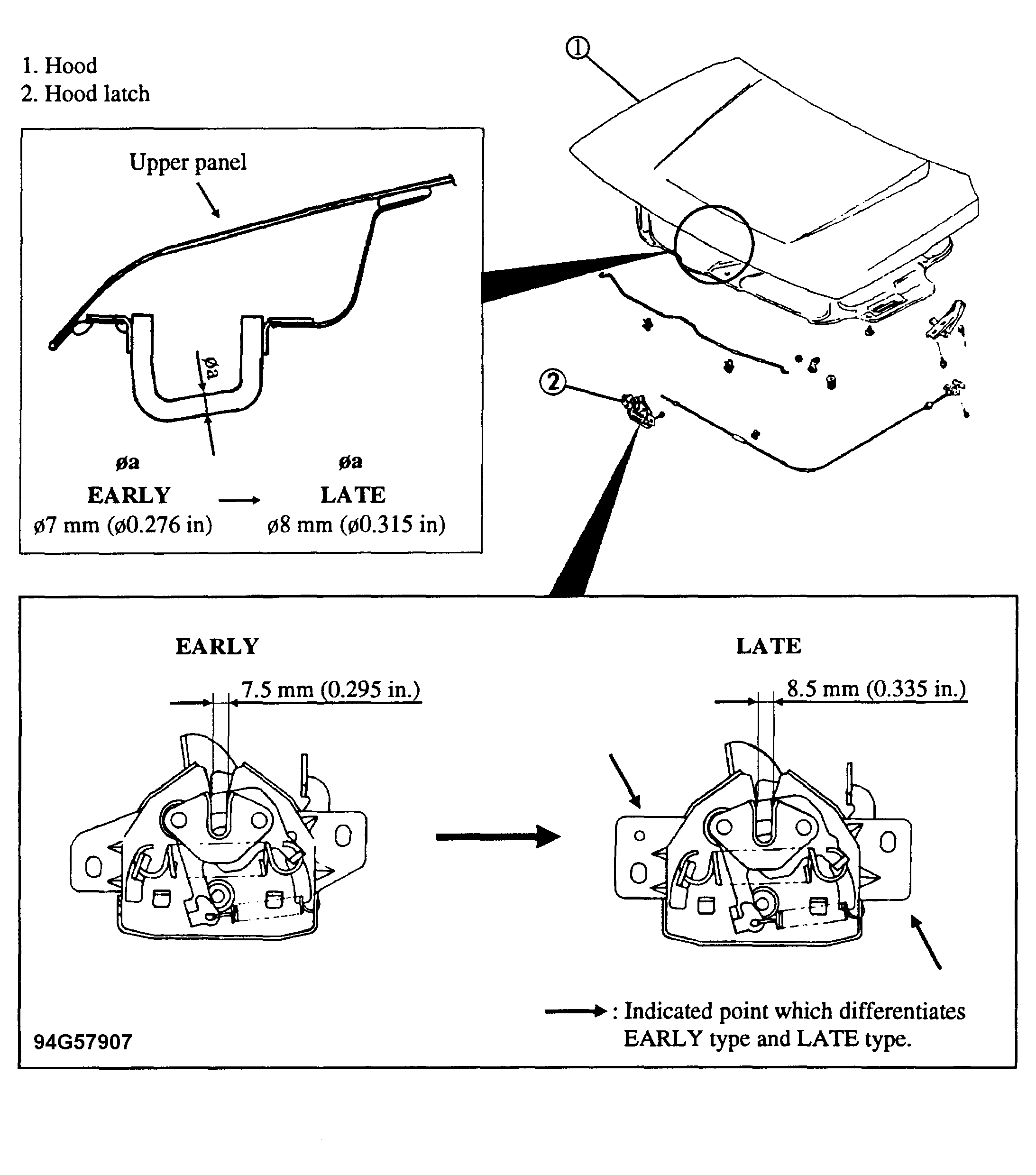

Fig 1: Hood And Latch Modifications

PARTS INFORMATION

Ref. #	Part Name	Early Part #	Late Part #	#	Supply of Spare Parts
1	Hood	58300-60A21 58300-60A60 58300-60A70	58300-60A71 58300-60A61 58300-60A71	1	Late only after early stock is depleted
1	Hood Latch	82110-61A00	82110-61A10	1	Early & late
Note: when replacing the early type hood with the late type, be sure to also replace the early type hood latch with the late type hood latch
Interchangeaility: neither early to late nor late to early.
