Trouble Shooting

To trouble shoot electronic portion of RWAL system, perform RWAL SYSTEM CHECK. See Fig 1 .

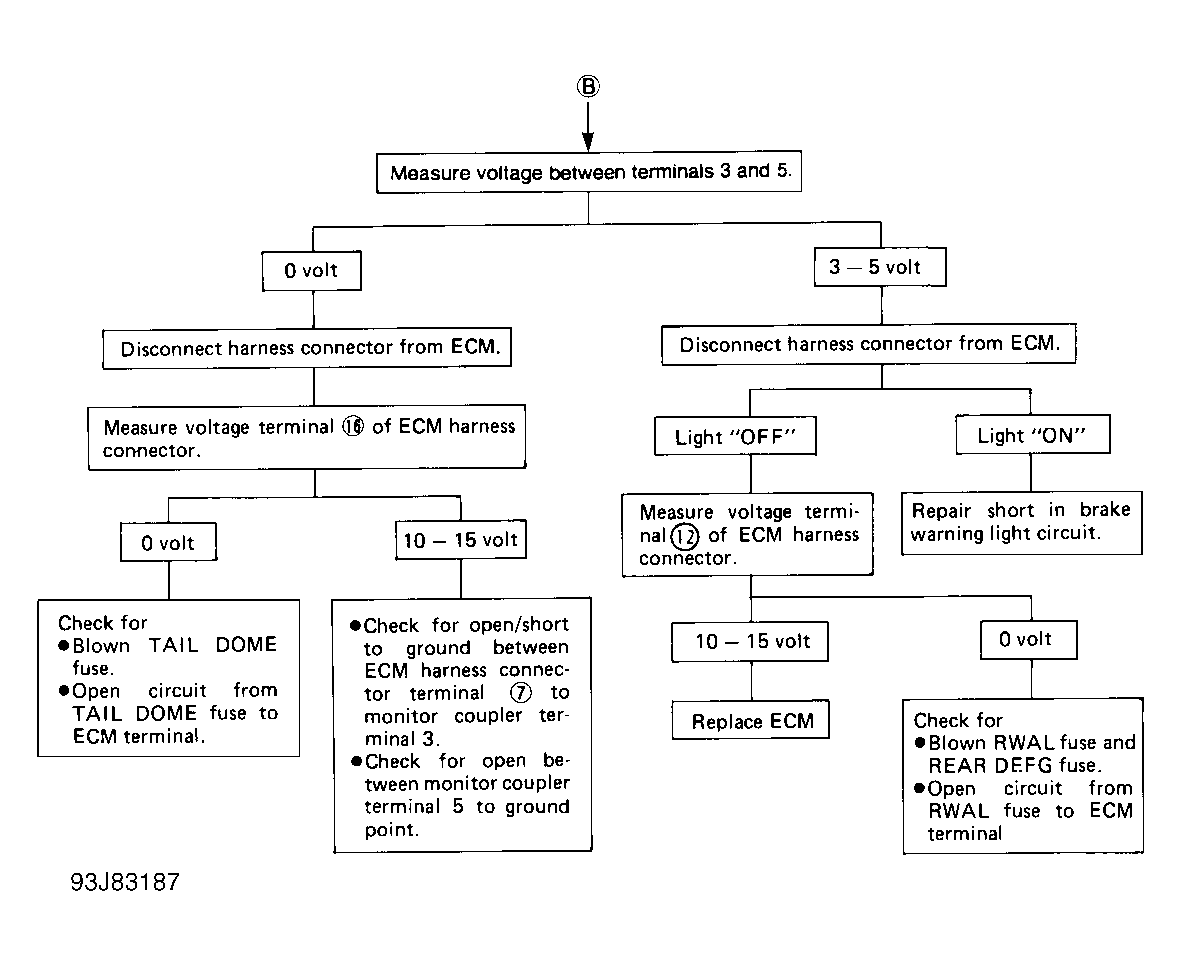

Fig 1: Diagnosing Rear Wheel Anti-Lock Brake System (1 of 3)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Diagnosing Rear Wheel Anti-Lock Brake System (2 of 3)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Diagnosing Rear Wheel Anti-Lock Brake System (3 of 3)

Courtesy of SUZUKI OF AMERICA CORP.
