Ground Points

Ground Points:

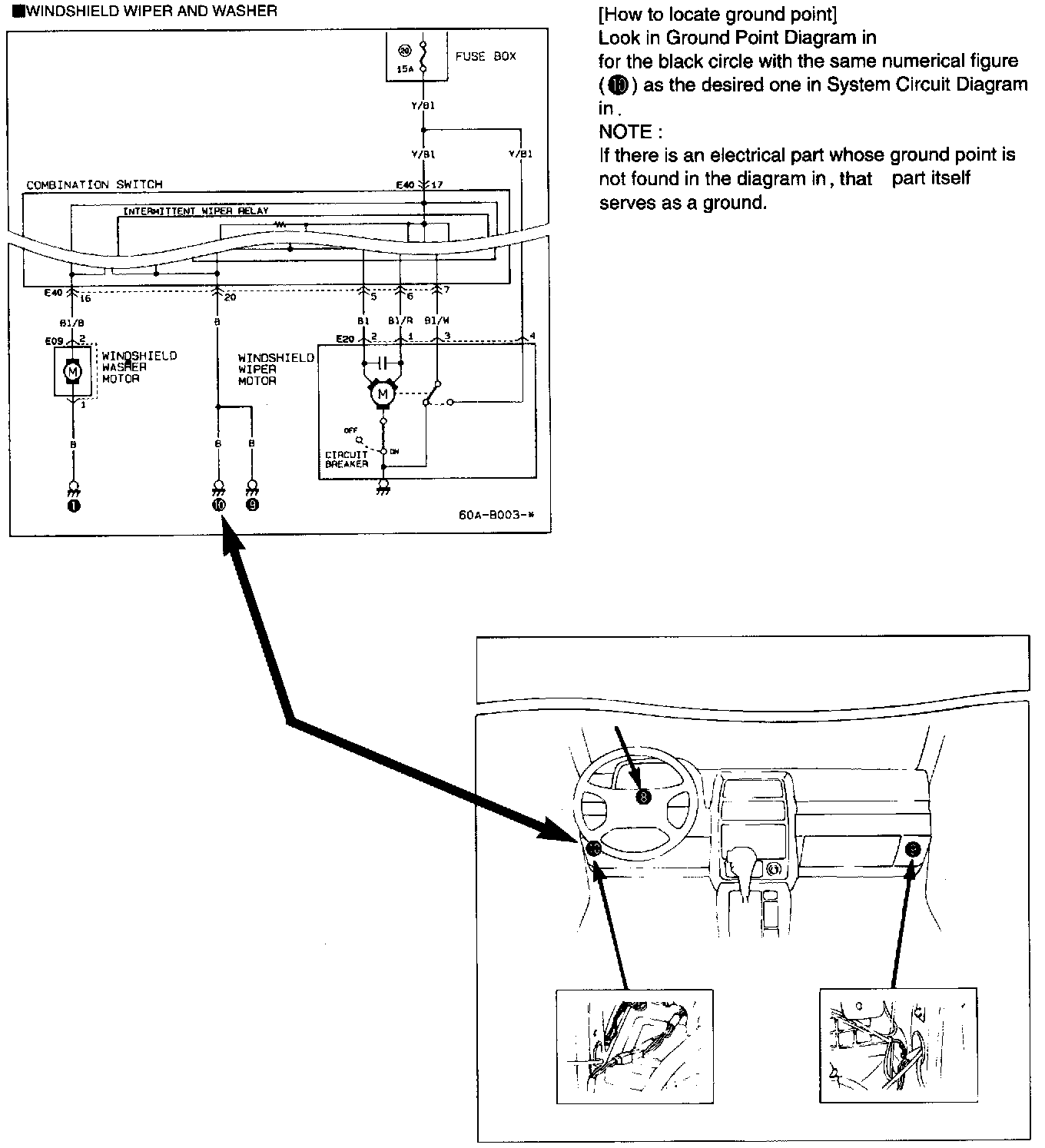

Ground points means the position where the negative harness among wiring harnesses is grounded. The diagram in Ground Points shows such ground points. In the system circuit diagram, there are many ground marks followed by black circles with numerical figures in them which means that the end of the harness with such black circles is grounded to some part of the vehicle.
To locate the ground points, refer to Ground Point Diagram.
