Ignition System: Locations

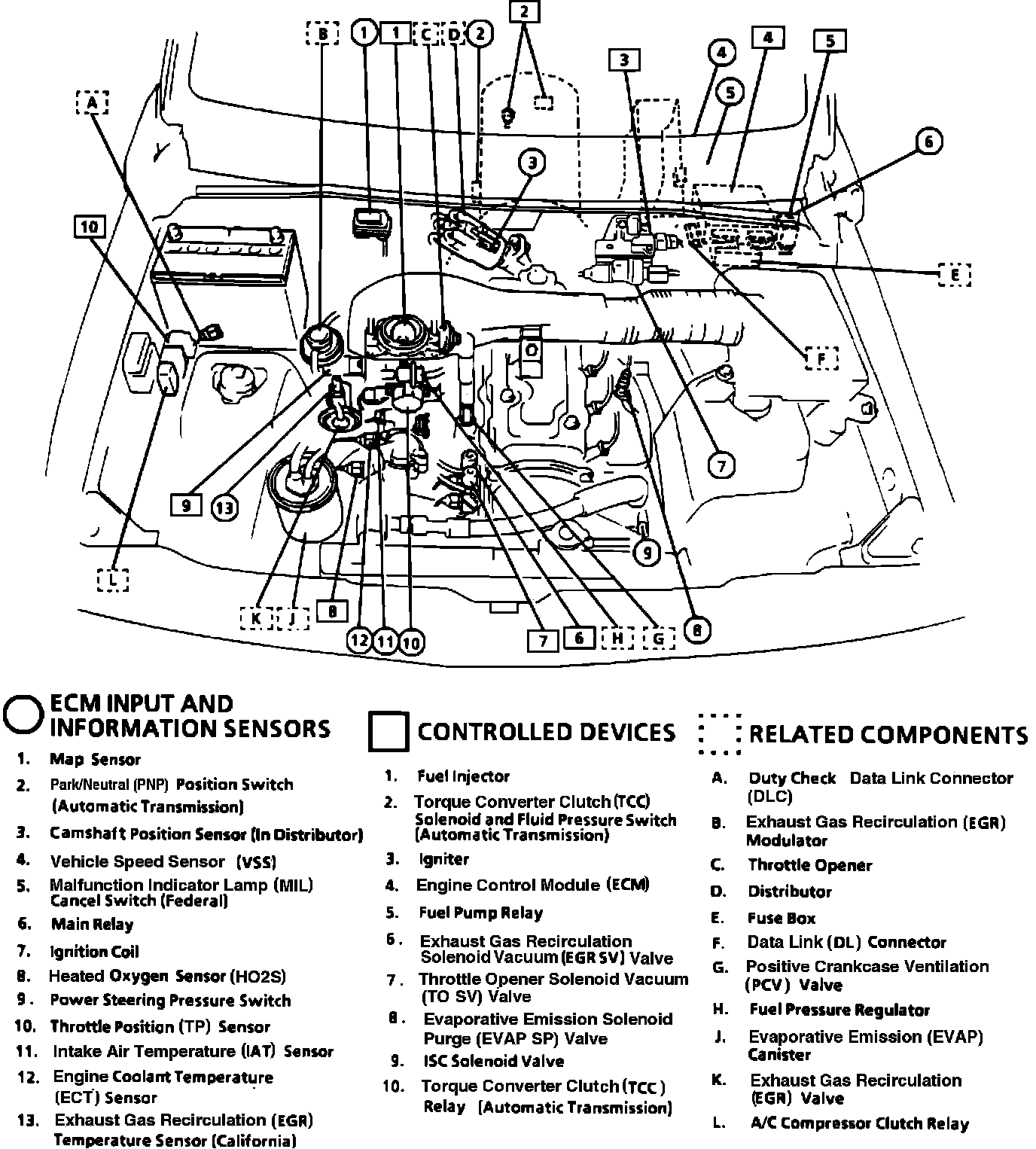

Underhood Block Diagram:



Component Location:

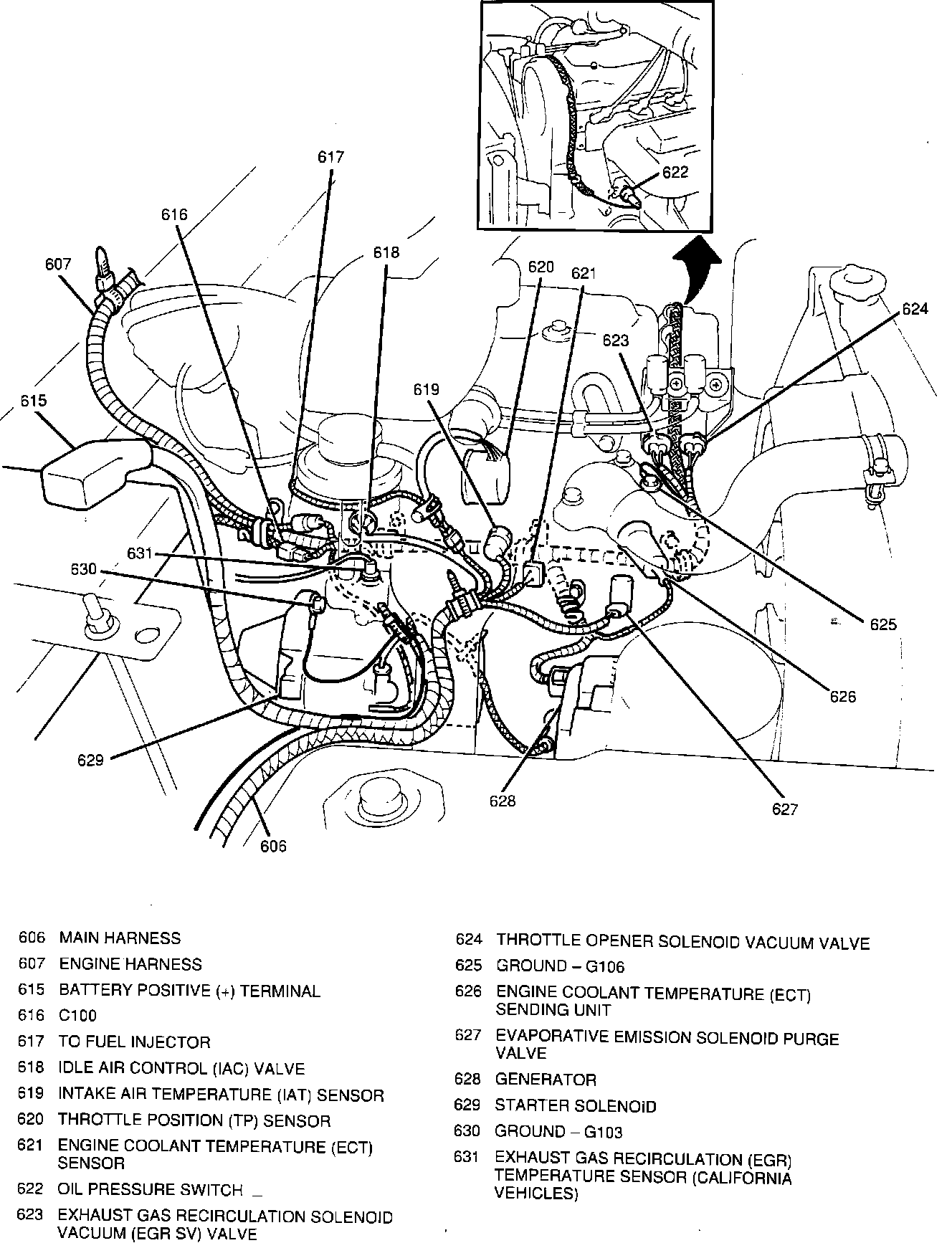

Engine Wiring:

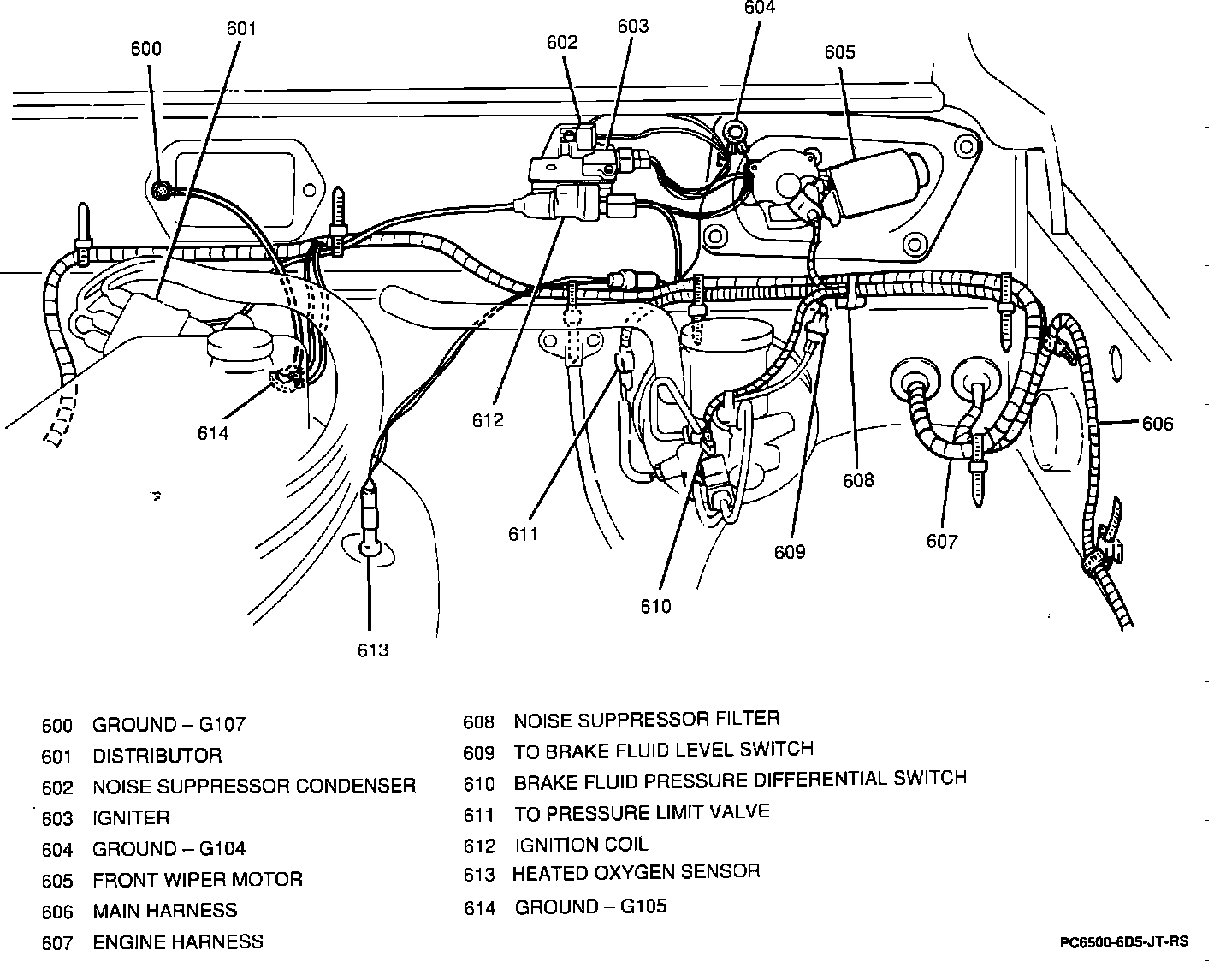

Engine Wiring:
