MODIFICATION OF REAR DIFFERENTIAL THRUST WASHER
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 3-14 09164, Date of Issue:
MODIFICATION OF REAR DIFFERENTIAL THRUST WASHER
Model(s): Suzuki Samurai, January 1994 Production And Later
Bulletin No.: TS 3-14 09164
Division: Automotive
Category: Technical
Section Title: Drivetrain
CONDITION
Change in rear differential thrust washer.
CAUSE
Factory modification.
CORRECTION
When ordering parts, please refer to the part numbers listed in this bulletin.

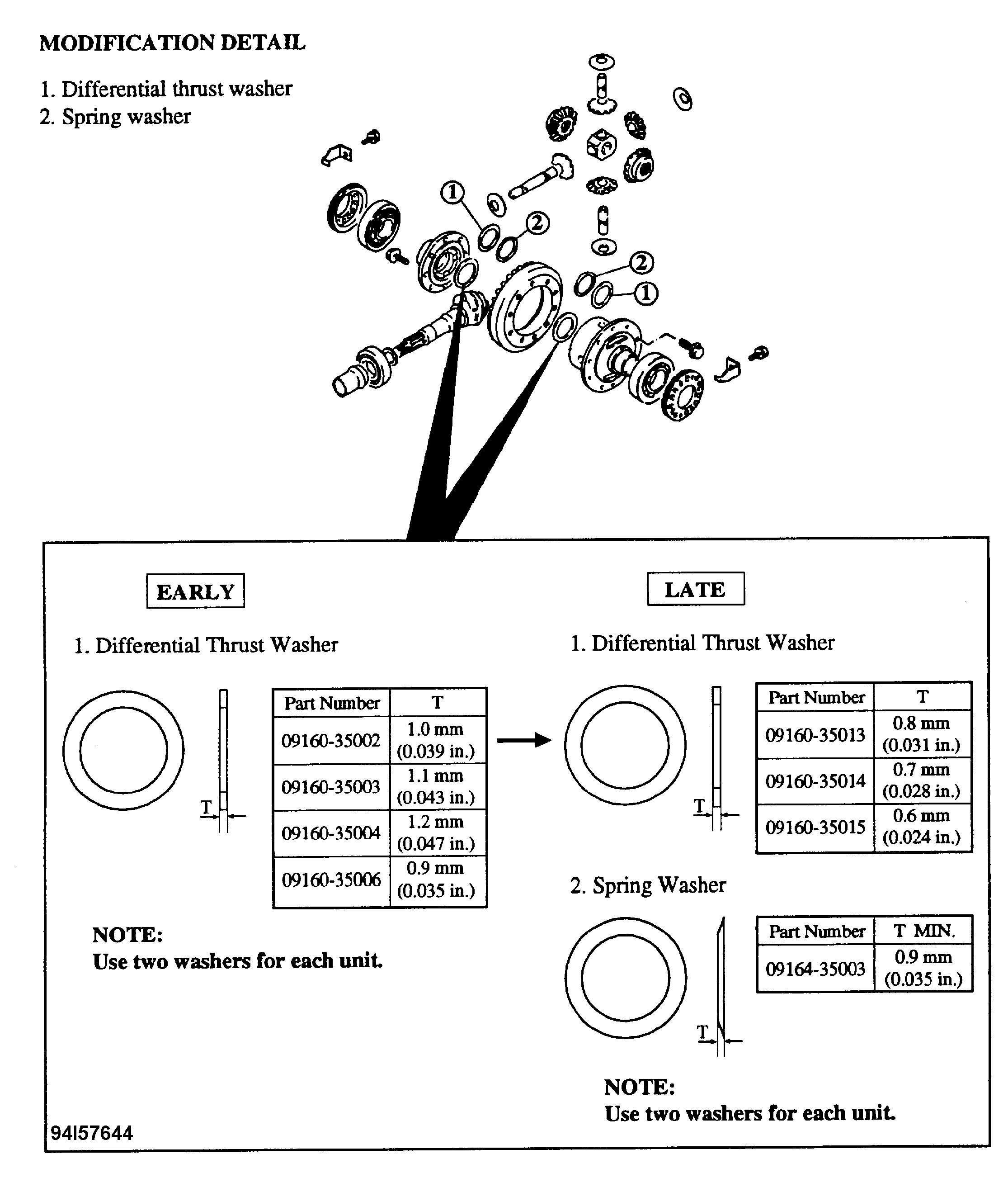

This bulletin is to inform you of the modification of the rear differential thrust washer which has been carried out since January 1994 production.
EFFECTIVE VIN
JS4JC31C_R4100829-
SERVICING
When assembling the differential assembly, use the thickest thrust washer first and check pinions and side gears for smooth rotation. If they fail to rotate smoothly, replace the thick washer with a thinner washer. For assembly procedure, refer to SAMURAI Service Manual (99500-83000).
PARTS SUPPLY DATA
PARTS INFORMATION
| Ref. # | Part Name | Early Part # | Larte Part # | # Required |
|---|---|---|---|---|
| 1 | Differential Thrust Washer | 9160-35002 9160-35003 9160-35004 09160-35006 |
9160-35013 9160-35014 9160-35015 |
2 |
| 2 | Spring Washer | - - - | 9160-35003 | 0-2 |
| Supply of Spare Parts = Both Early & Late | ||||
| Interchangeability of Parts is ok both Early & Late as a set | ||||
