Heater Assembly: Installation

To install, reverse removal procedure. Ensure heater and ventilator control cables are correctly routed. See Fig 2 . Refill radiator, and reconnect negative battery cable.

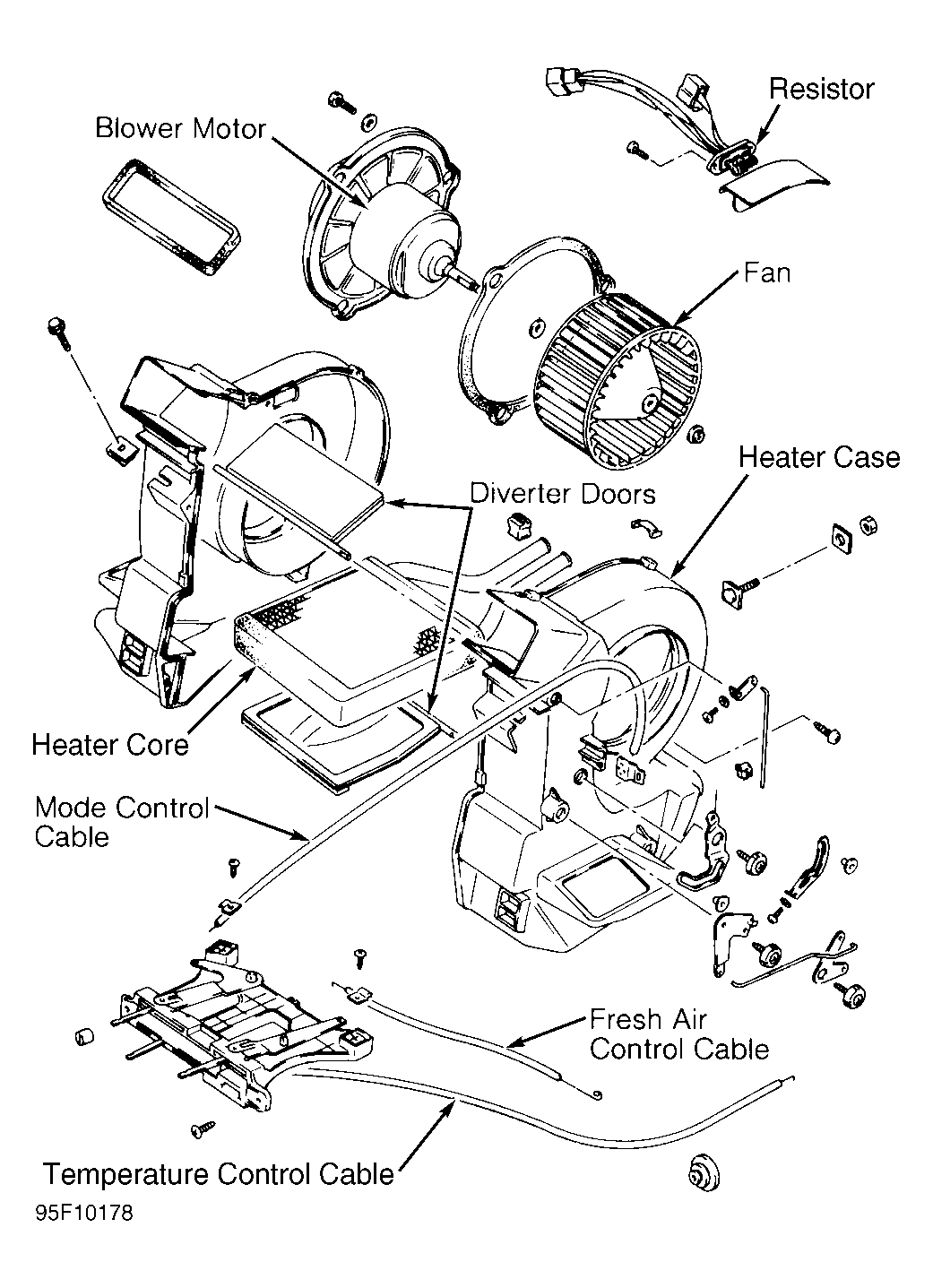

Fig 1: Identifying Heater & Blower Motor Assemblies (Samurai)

Courtesy of SUZUKI OF AMERICA CORP.

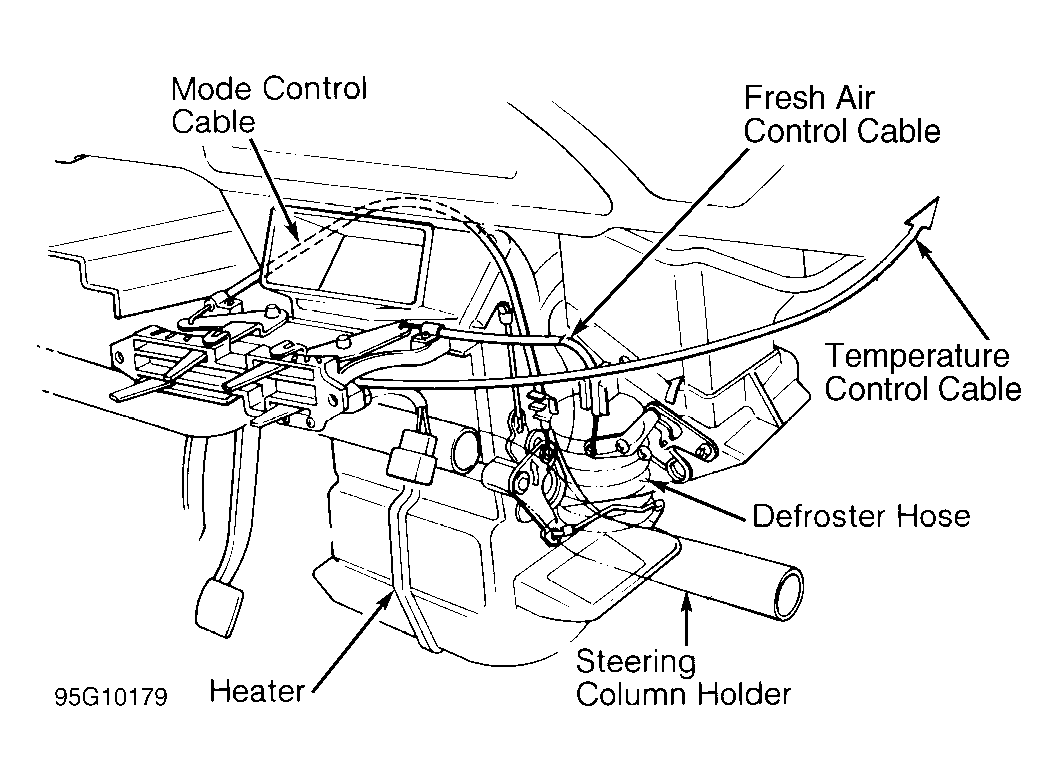

Fig 2: Checking Heater & Ventilator Control Cable Routing (Samurai)

Courtesy of SUZUKI OF AMERICA CORP.
