Rear Differential Thrust Washer - Modification
TSB No. TS 3-14 09164Section Title: Drivetrain
Division: Automotive
Category: Technical
SUBJECT:
MODIFICATION OF REAR DIFFERENTIAL THRUST WASHER
MODEL:
ALL
YEAR:
JANUARY 1994 PRODUCTION AND LATER
CONDITION:
Change in rear differential thrust washer.
CAUSE:
Factory modification.
CORRECTION:
When ordering parts, please refer to the part numbers listed in this bulletin.
This bulletin is to inform you of the modification of the rear differential thrust washer which has been carried out since January 1994 production.

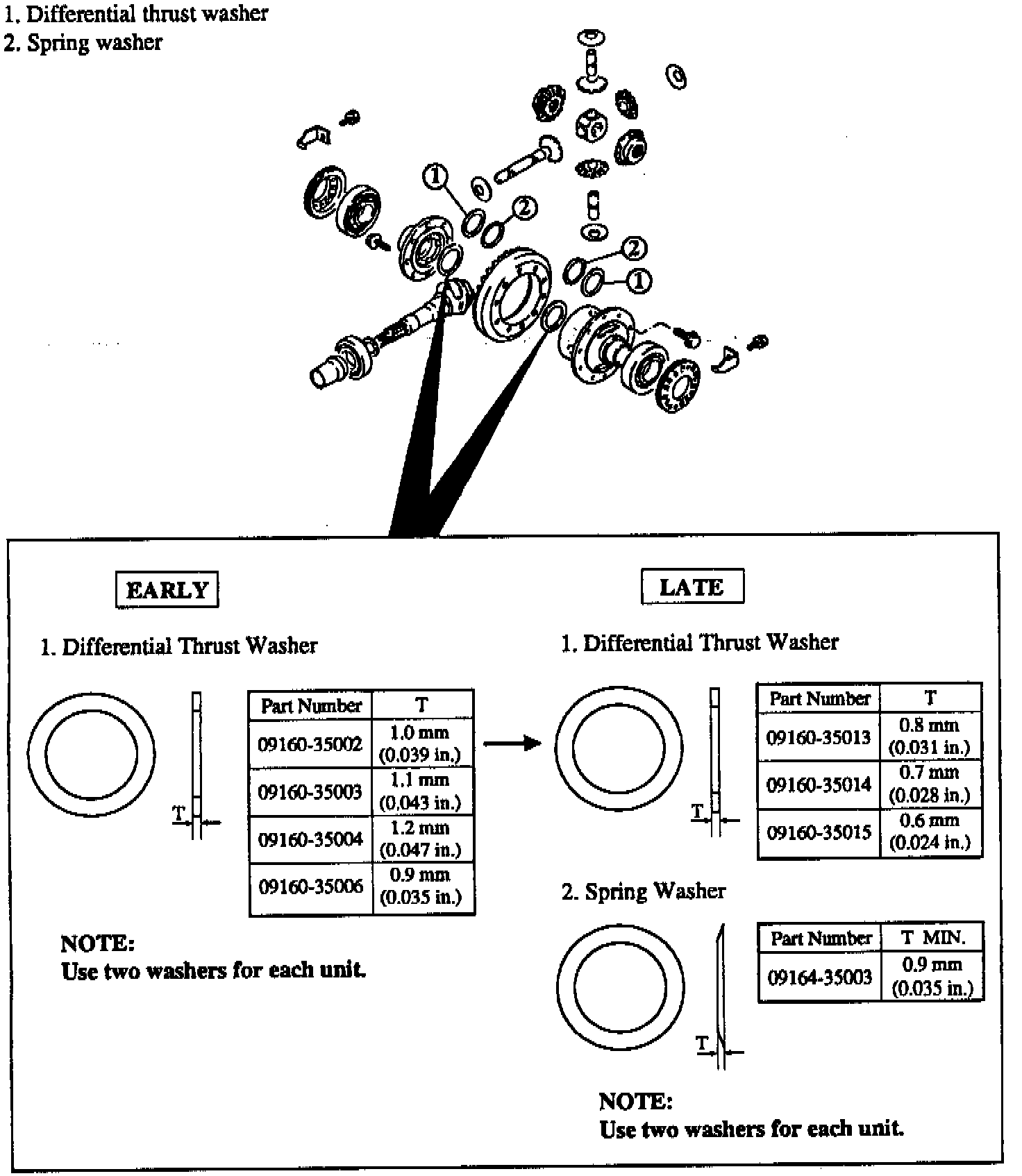

MODIFICATION DETAIL
SERVICING
^ When assembling the differential assembly, use the thickest thrust washer first and check pinions and side gears for smooth rotation. If they fail to rotate smoothly, replace the thick washer with a thinner washer. For assembly procedure, refer to SAMURAI Service Manual (99500-83000).
PARTS SUPPLY DATA
