Symptom Related Diagnostic Procedures

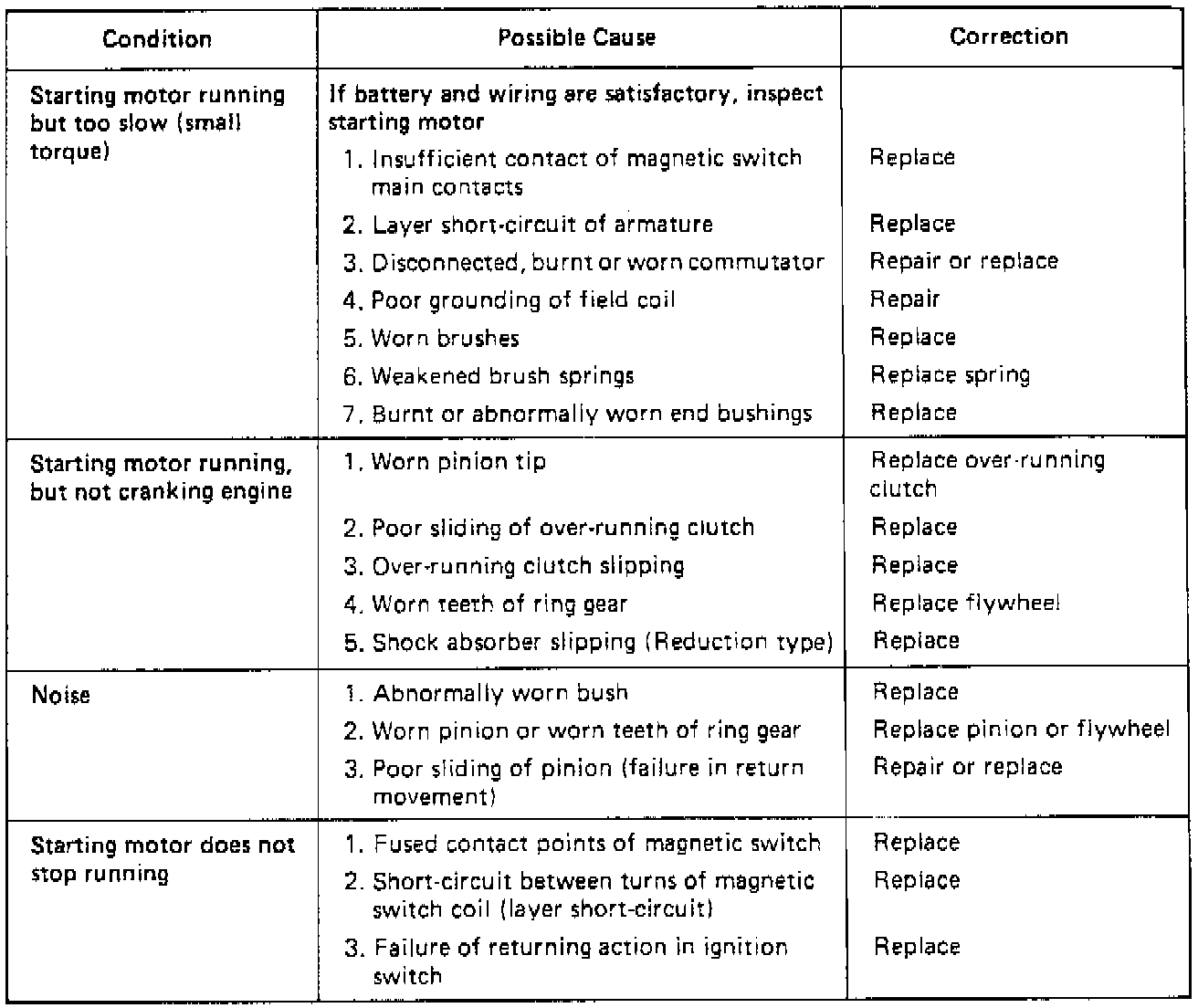

Fig. 6 Troubleshooting Chart (Part 1 Of 2):

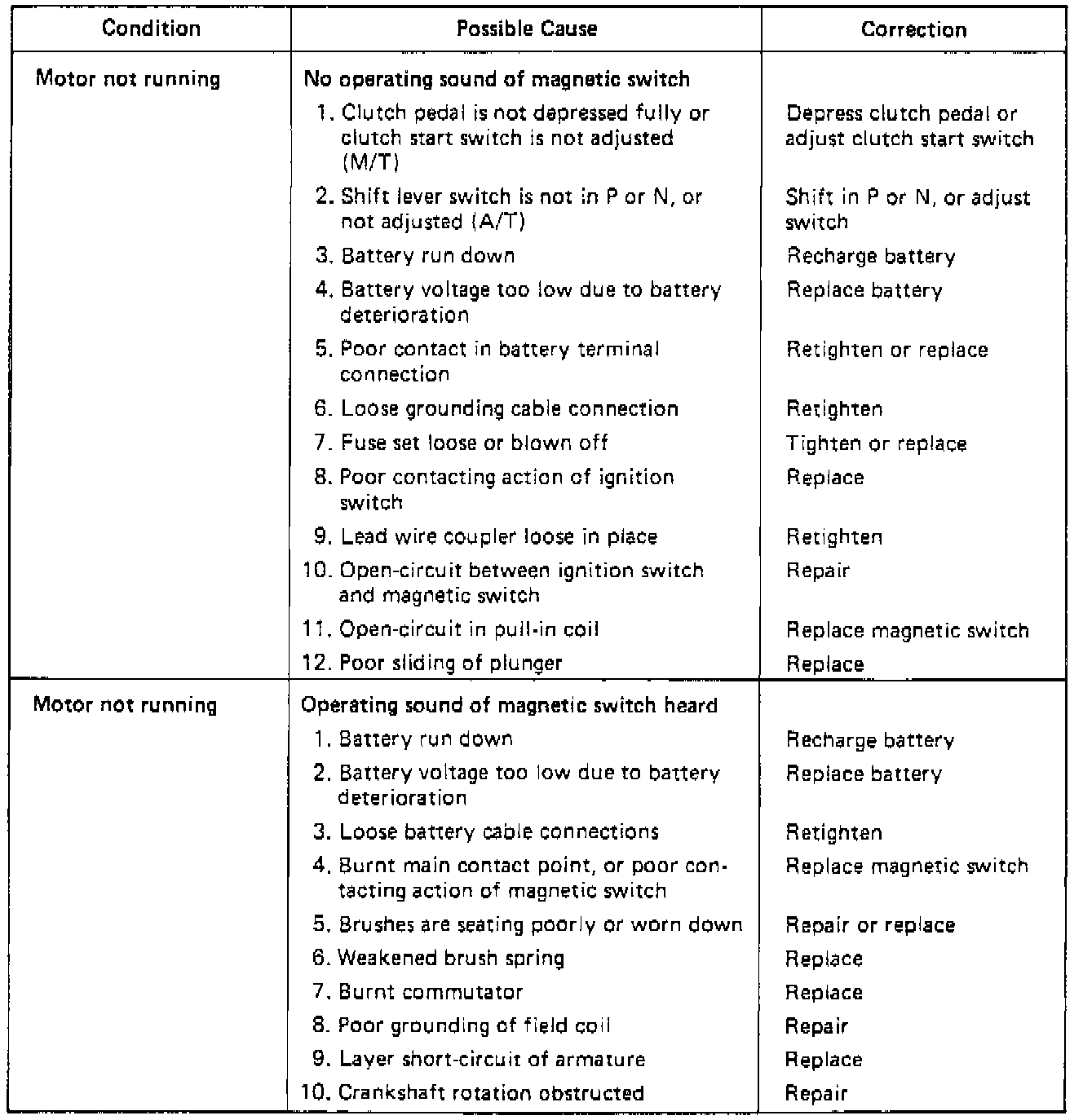

Fig. 6 Troubleshooting Chart (Part 2 Of 2):
