Engine Compartment

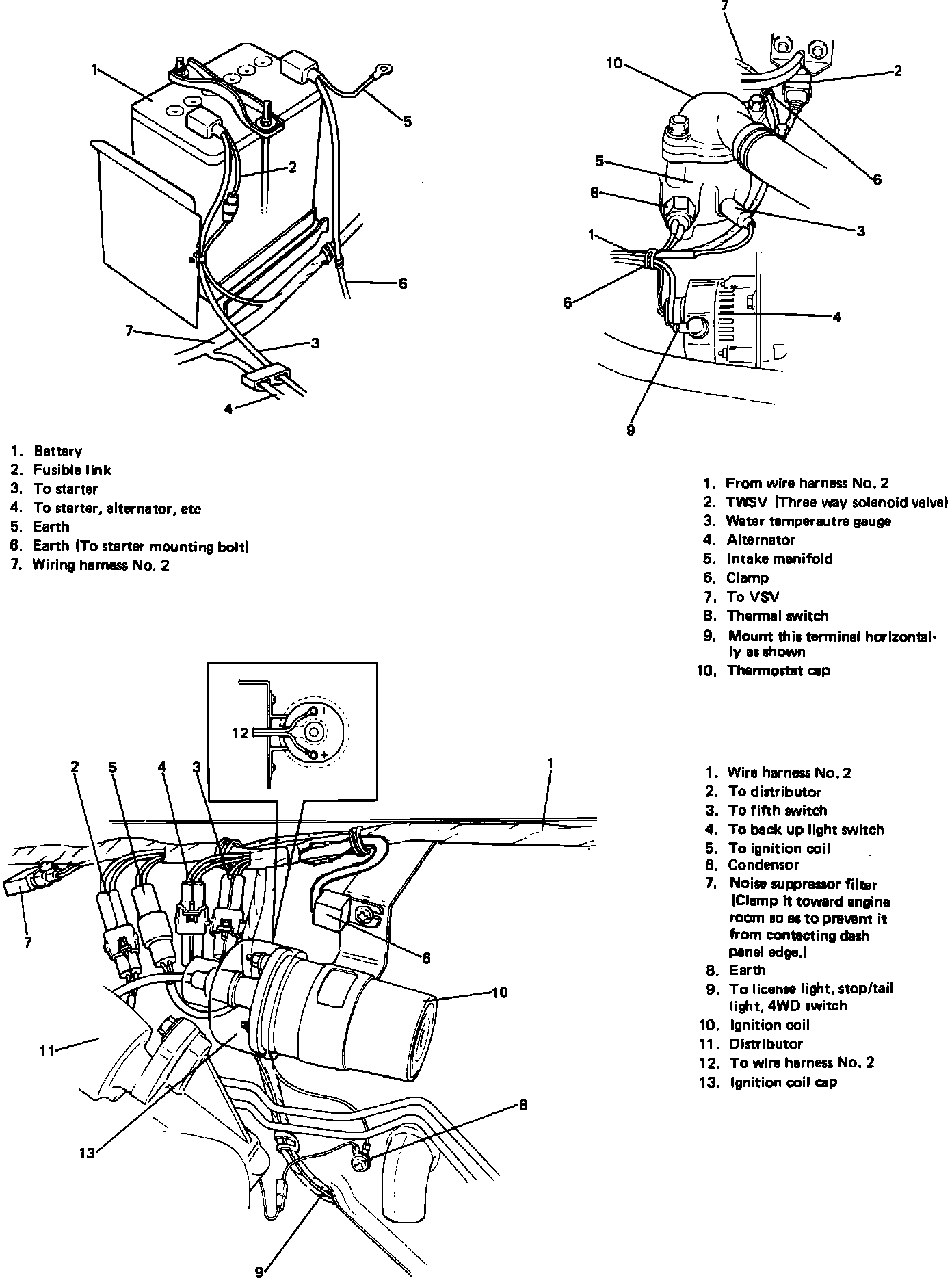

Engine Compartment Harness Routing:

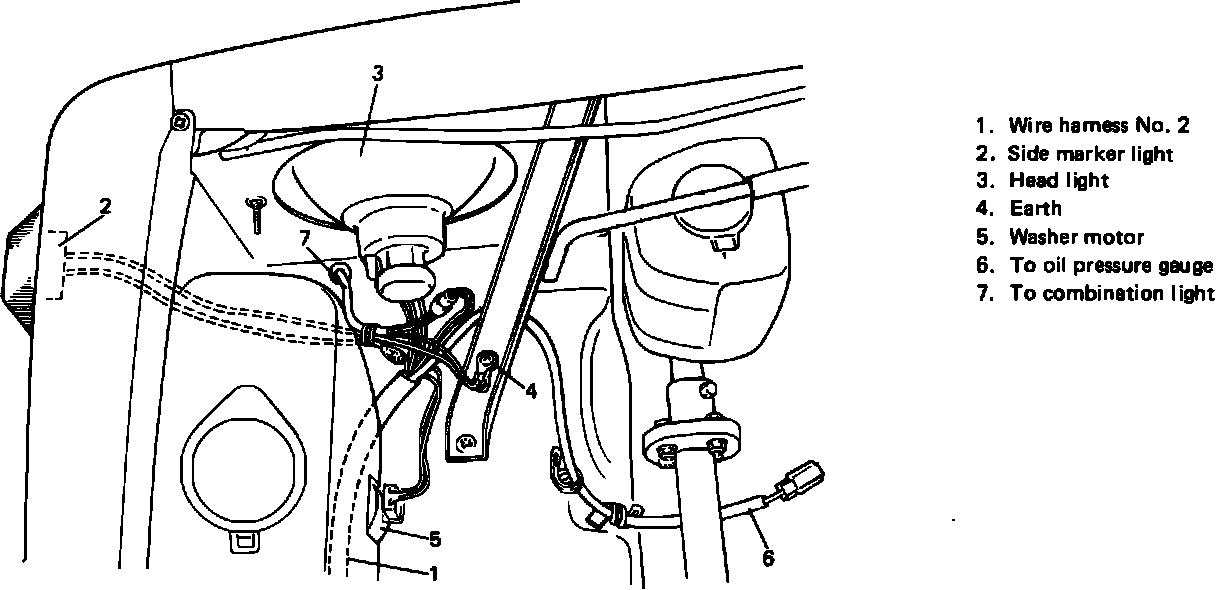

Engine Compartment Harness Routing:

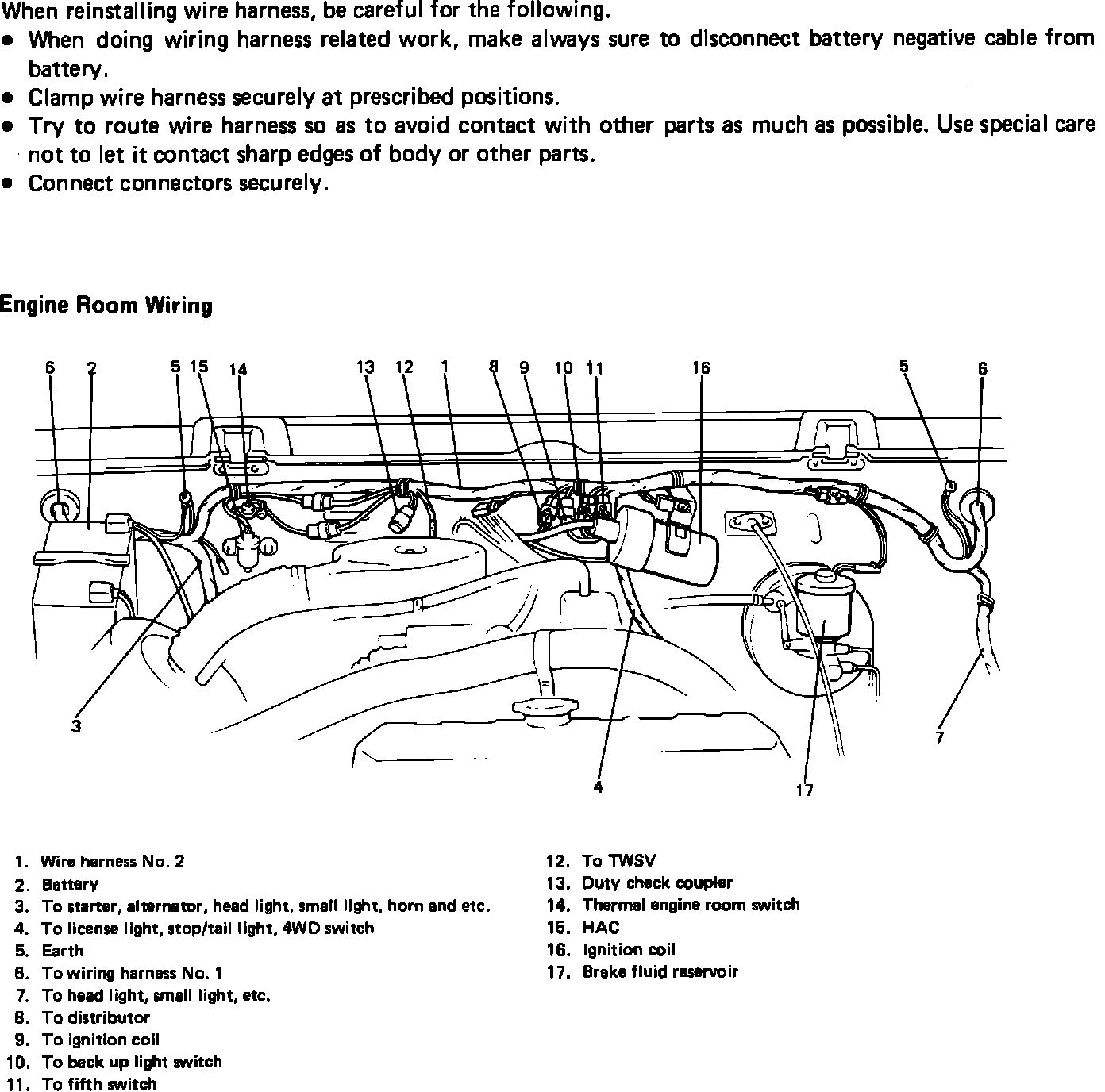

Engine Compartment Harness Routing:
