Bolt Sequence

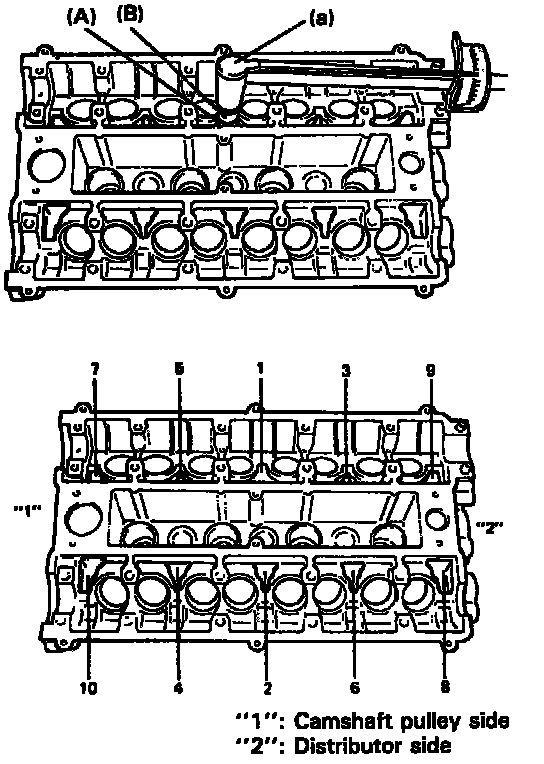

Cylinder Head Torque Sequence





After applying engine oil to cylinder head bolts, tighten them gradually with a torque wrench, following sequence given in figure. Finally tighten bolts to specified torque.

Tightening Torque
65-70 Nm (6.5-7.0 kg-m, 47.6-50.5 lb-ft)
