Disassembly, Inspection and Assembly

Distributor:

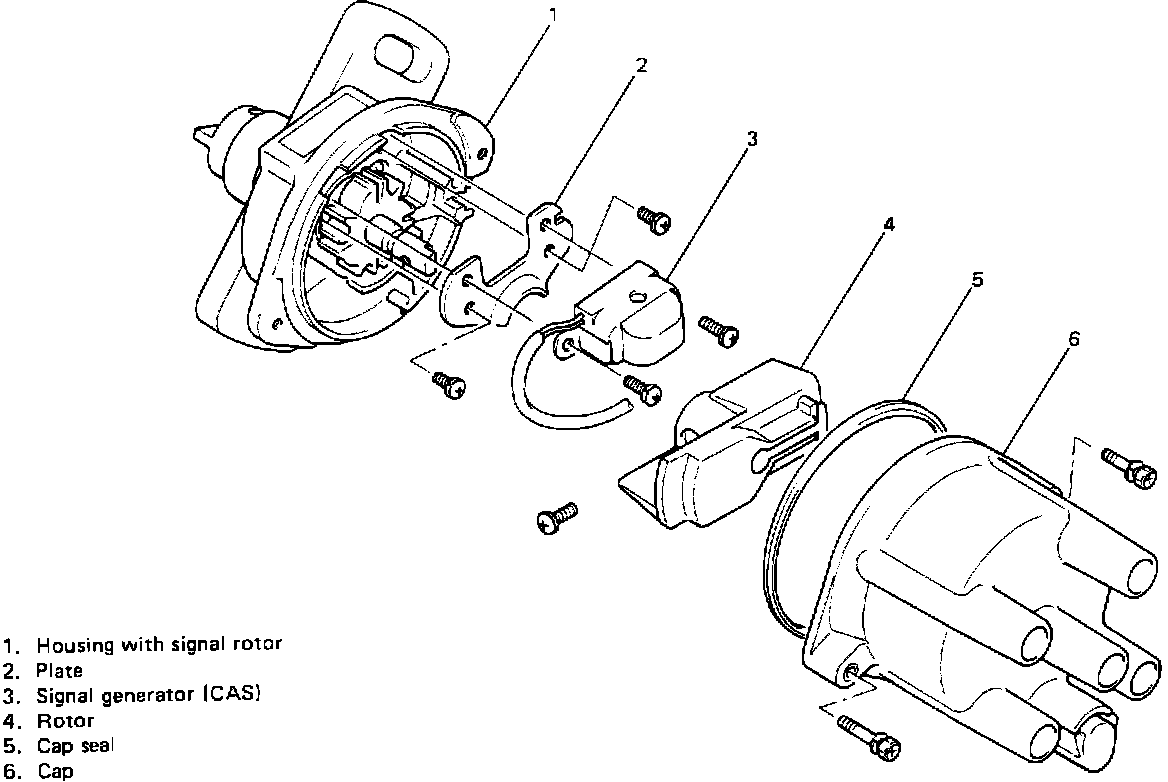

- Use the illustration as guide to service procedure.
- Adjust air gap prior to installation.
