MODIFICATION OF AUTOMATIC TRANSMISSION CONTROLLER

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 3-14 03313(R), Date of Issue:

MODIFICATION OF AUTOMATIC TRANSMISSION (A/T) CONTROLLER

Model(s): June 1992 and later Suzuki (except GT)

Division: Automotive

Category: Technical

Section: Drivetrain

Bulletin No.: TS 3-14 03313(R)

CONDITION

Harsh shifting

CAUSE

Programming of A/T controller

CORRECTION

Replace A/T controller.

REVISION

Modification does not include GT.

This bulletin is to inform you of the modification of the A/T controller which has been carried out since June 1992 production. Due to the modification of the AT controller, the A/T shift diagram has also been changed. See Fig 1 and Fig 2 .

To identify the early or the late type AT controller, check the part number on the name plate as shown in Fig 3 .

Fig 1: A/T Controller Name Plate

PARTS INFORMATION

Part Name	Early Part No.	Late Part No.	#	Supply of Spare Parts	Interchange- ability
A/T controller	388861E00	388861E40	1	Late only	Early<->Late

EFFECTIVE VIN NUMBERS

JS2AA355 P5100596- J52AH355_P5100201-

J52AC355 P5100706- J52AH35S_P5100201-

JS2AE35S P5100539- 2S2AA35S_P6600001-

2S2AC35S P6600001-

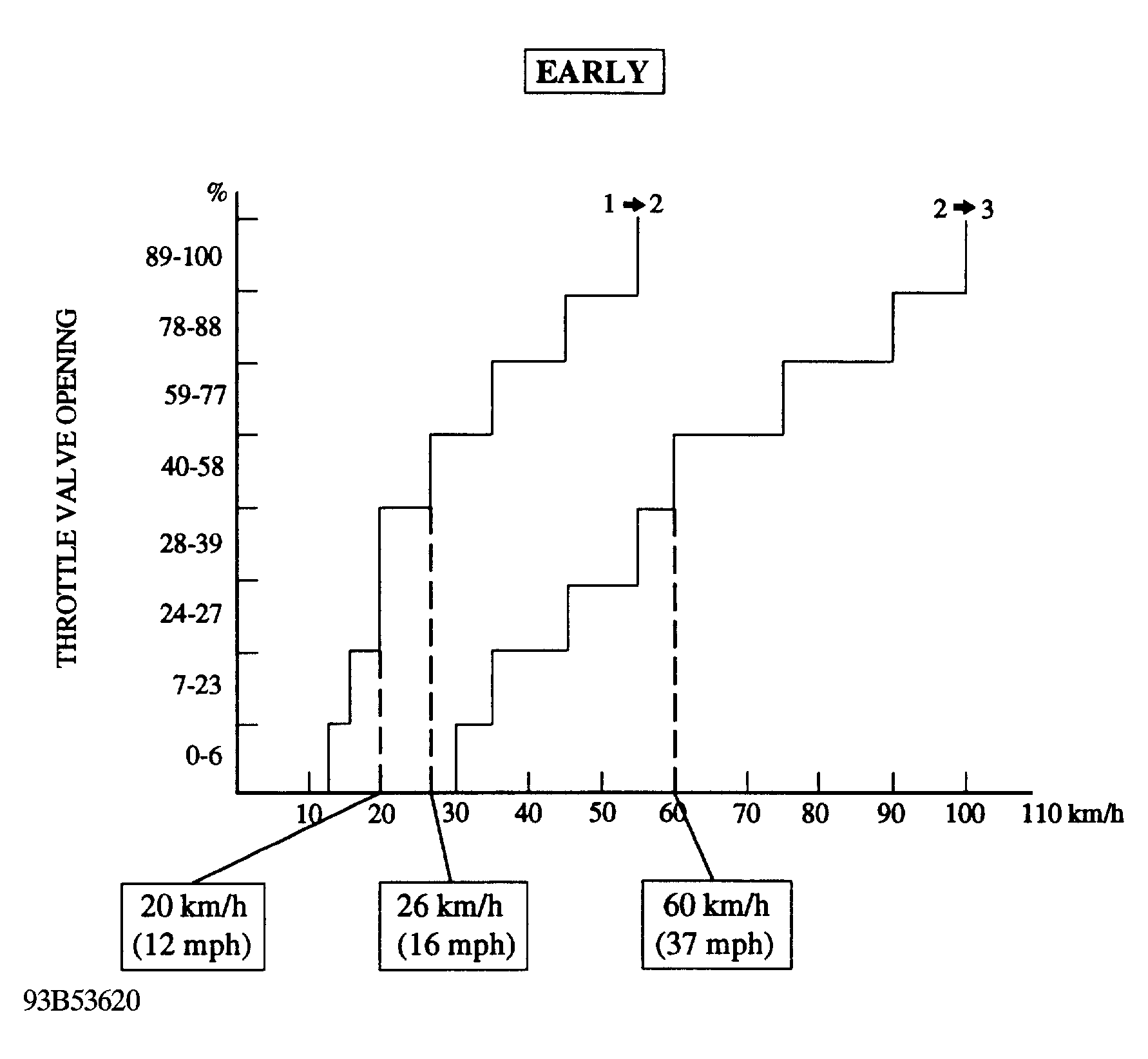

Fig 2: Original A/T Shift Diagram

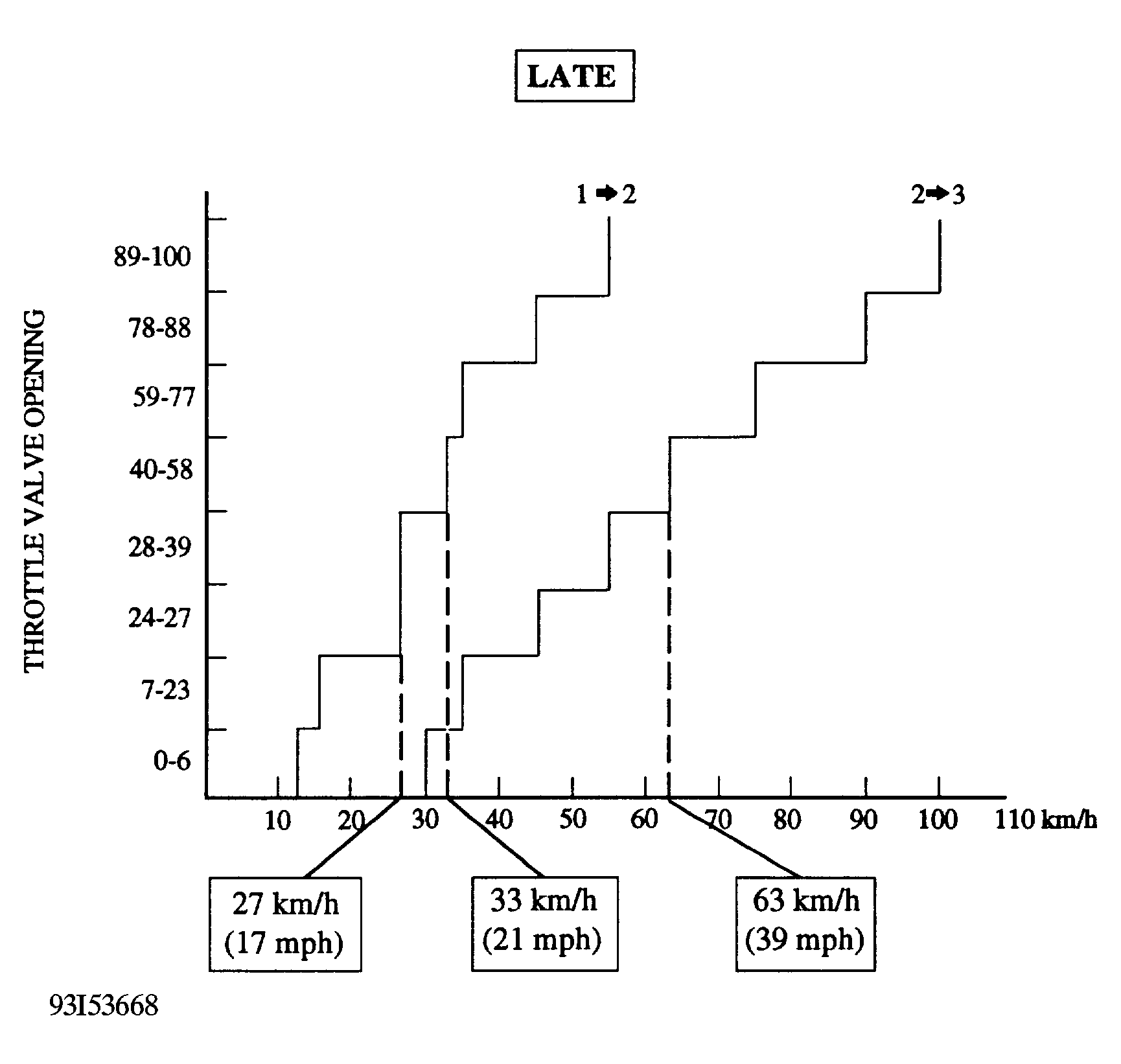

Fig 3: Revised A/T Shift Diagram
