Service Manual Correction: Differential Modification (TS 7-03 10132)
WARNING: This page is about the Sidekick JLX, Automatic, which is a different variant/trim than selected.
Publication date: 1970-01-01Reference number: TS 7-03 10132
SERVICE MANUAL CORRECTION: DIFFERENTIAL MODIFICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 7-03 10132, Date of Issue:
REVISION OF SIDEKICK SERVICE MANUAL
Model(s): 1993 Suzuki Sidekick 2-door
Bulletin No.: TS 7-03 10132
Division: Automotive
Category: Technical
Section Title: Miscellaneous
CONDITION
Change in service manual.
CAUSE
Modification in the rear differential.
CORRECTION
Make the following corrections in service manual.

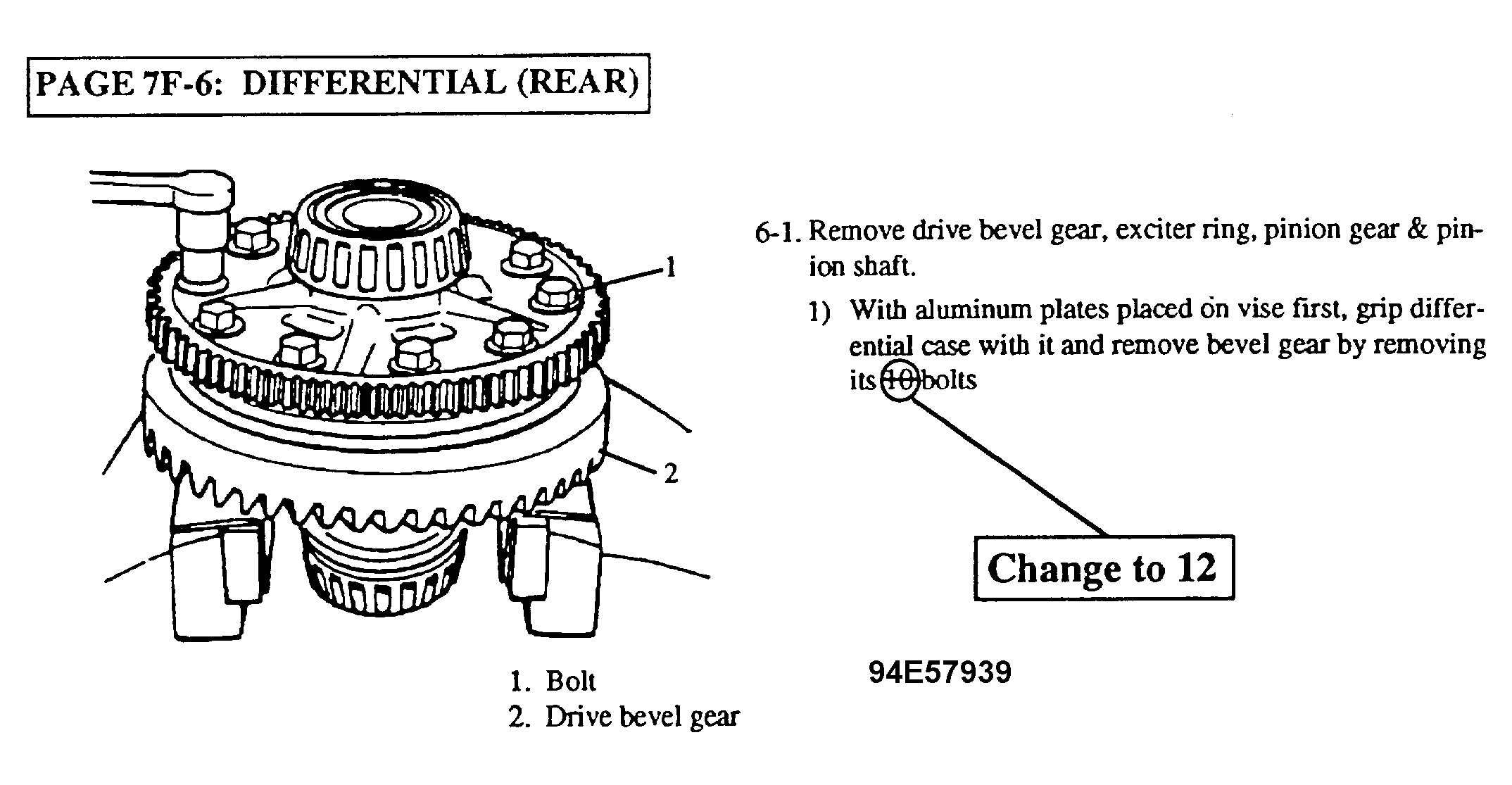

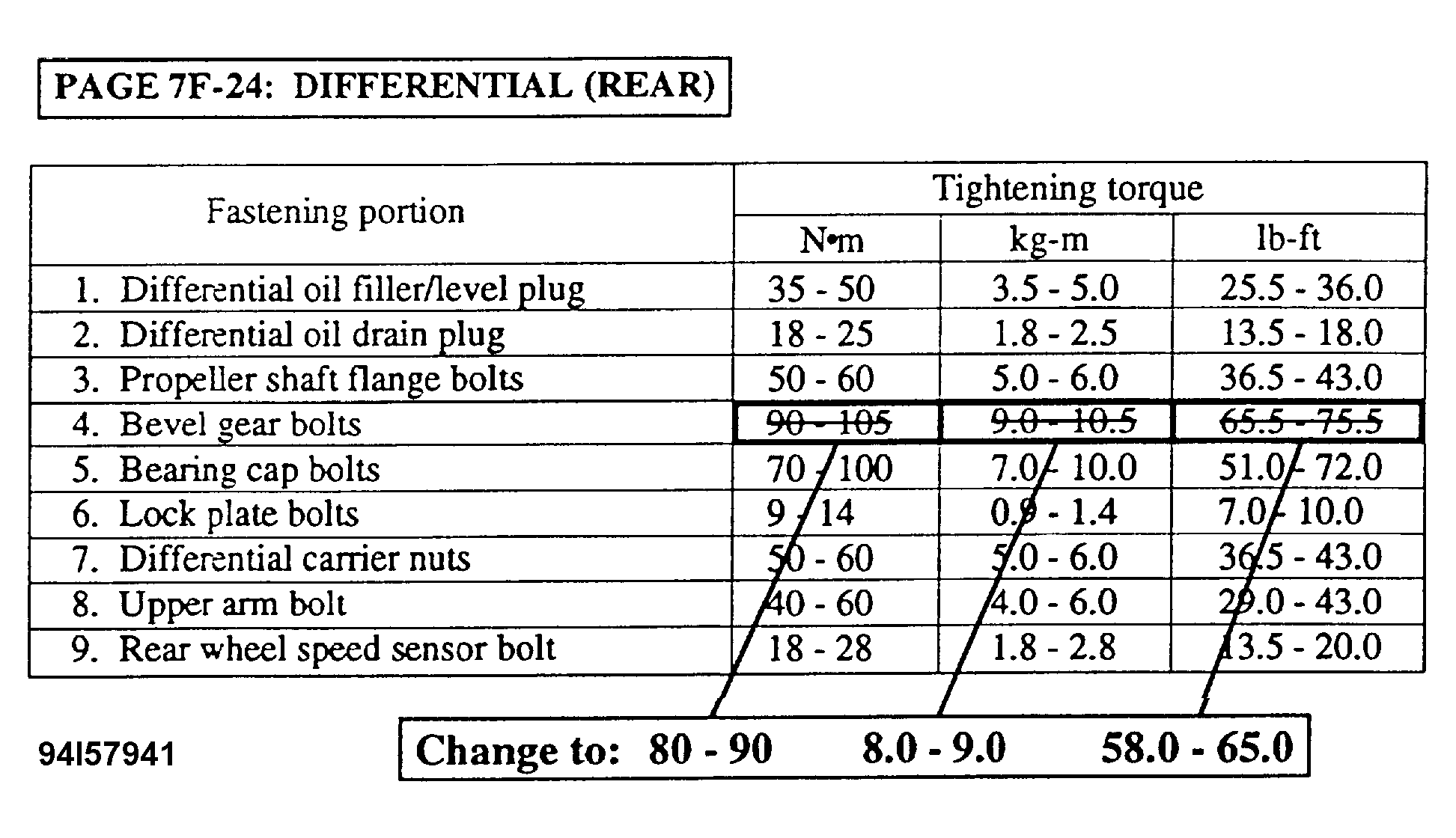

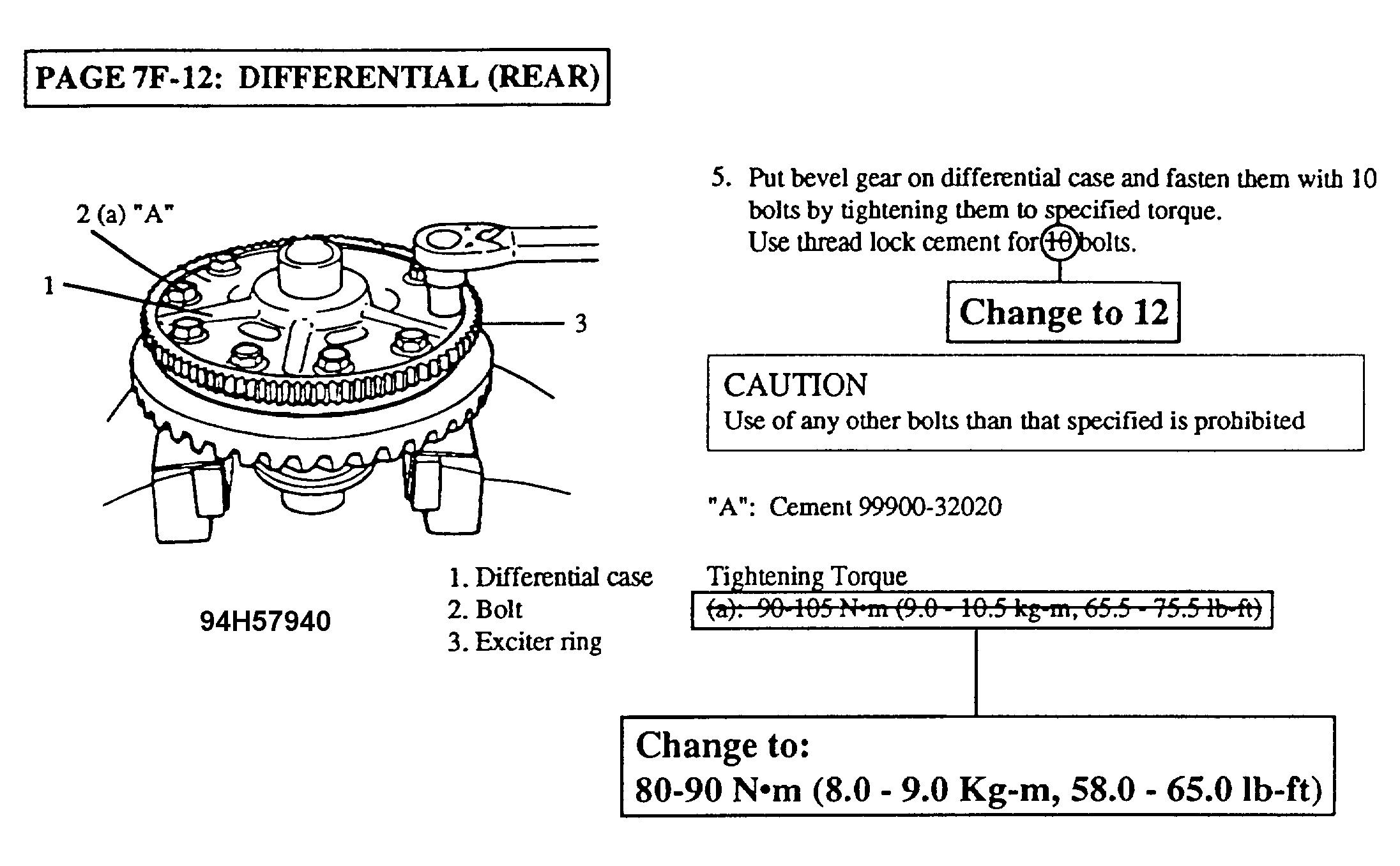

This bulletin informs you of a correction required for the 1993 Sidekick 2-door model Service Manual description. The reason for this correction is that a modification has been made on the rear differential since the initial production of the 1993 model. Please make the necessary corrections shown in Fig 1 , Fig 2 and Fig 3 in your 1993 Sidekick Service Manual (99500-60A40- 33E) according to the instructions in this bulletin.
EFFECTIVE VIN NUMBERS
JS3TA0IC_P4100001- 2S3TA0IC_P6400001-
JS3TA0IV_P4100001- 2S3TA0lV_P6400001-
