Throttle Valve Cable
WARNING: This page is about a different car, the 1994 Geo Tracker and 1993 Geo Tracker. However, it is still accessible from the selected car via links, so may be relevant.

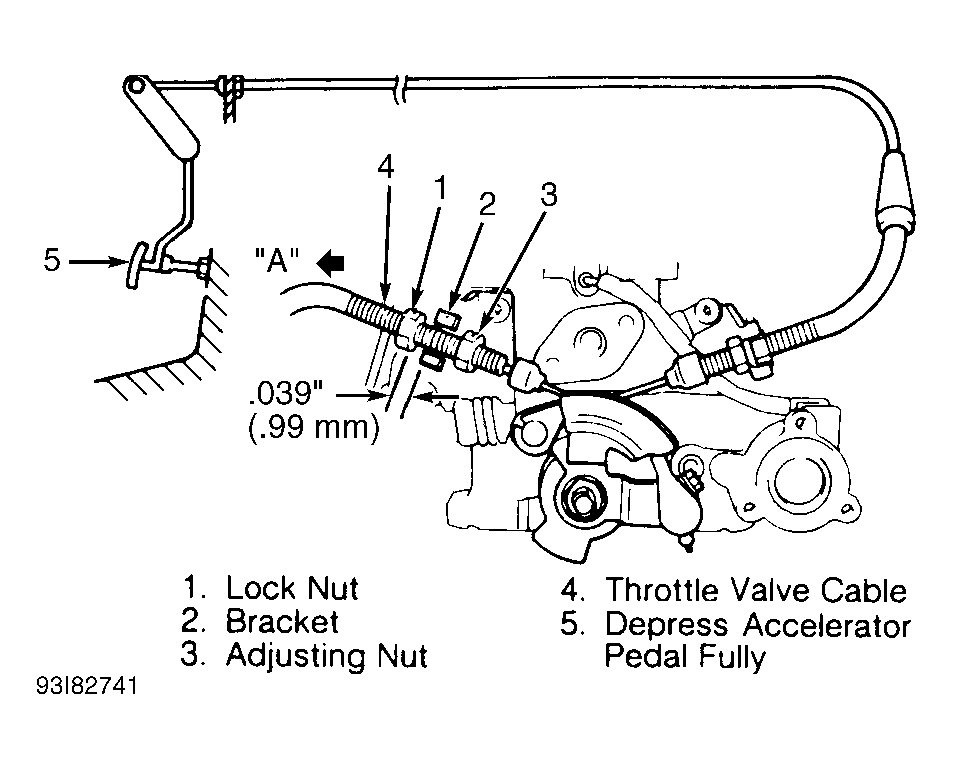

- Ensure accelerator cable is adjusted correctly. Loosen and back off TV cable lock nut and adjusting nut. See Fig 1 . Turn ignition key switch to LOCK position. Have an assistant fully depress and hold accelerator pedal.
- Pull TV cable casing in direction "A" until tight and no cable deflection exists. See Fig 1 . Tighten lock nut to obtain a .039" (1 mm) lock nut-to-bracket clearance. When adjusting clearance, ensure adjusting nut does not contact bracket.
- Release accelerator pedal. Maintain lock nut-to-bracket clearance at .039" (1 mm). Rotate adjusting nut until it engages bracket. With adjusting nut even with bracket surface, tighten lock nut securely.
