TPS Adjustment (Swift DOHC)

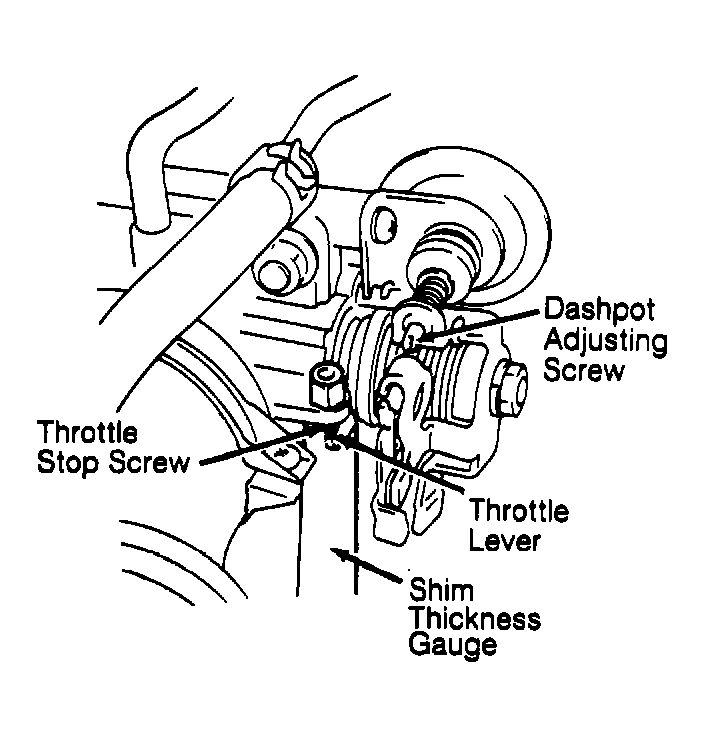

  1. Unplug TPS connector, and loosen TPS mounting screws. Place a .025" (.63 mm) shim thickness gauge between throttle lever and throttle stop screw. See Figure .
  2. Connect ohmmeter between terminals "C" and "D". See Figure . Turn TPS fully clockwise, and then slowly rotate TPS counterclockwise to locate position at which ohmmeter reading changes from zero to infinity. Holding TPS at that position, tighten mounting screws snug.
  3. Ensure continuity does not exist between terminals "C" and "D" when 0.035" (0.90 mm) shim thickness gauge is inserted between throttle lever and throttle stop screw.
  4. Ensure continuity exists between terminals "C" and "D" when 0.012" (0.30 mm) shim thickness gauge is inserted between throttle lever and throttle stop screw. Tighten TPS mounting screws to 30 INCH lbs.(3.4 N.m).
  5. If continuity is not as specified in steps 3) and 4), TPS zero adjustment is incorrect. Start adjustment sequence again. If results are the same after readjusting, replace TPS. After final adjustment is completed, reconnect TPS connector.
CAUTION: DO NOT  adjust Swift SOHC throttle stop screw to adjust idle. Throttle stop screw is factory-set, and is used as zero reference point for all other adjustments.
