Ignition Switch & Column Lock: Removal

WARNING: This page is about a different car, the 1993 Suzuki Swift. However, it is still accessible from the selected car via links, so may be relevant.

Ensure front wheels are pointed straight ahead. Disconnect negative battery cable. Remove steering wheel, horn pad and combination switch. See STEERING WHEEL & HORN PAD and COMBINATION SWITCH. Remove steering column. See REMOVAL & INSTALLATION refer to STEERING COLUMN article in STEERING section.
Use a hammer and drift punch to loosen shear bolts from column lock assembly. Use care not to damage aluminum part of steering lock body with drift punch. Turn ignition key to ACC or ON position. Remove column lock assembly from steering column. SeeFig 1 and Fig 2 .

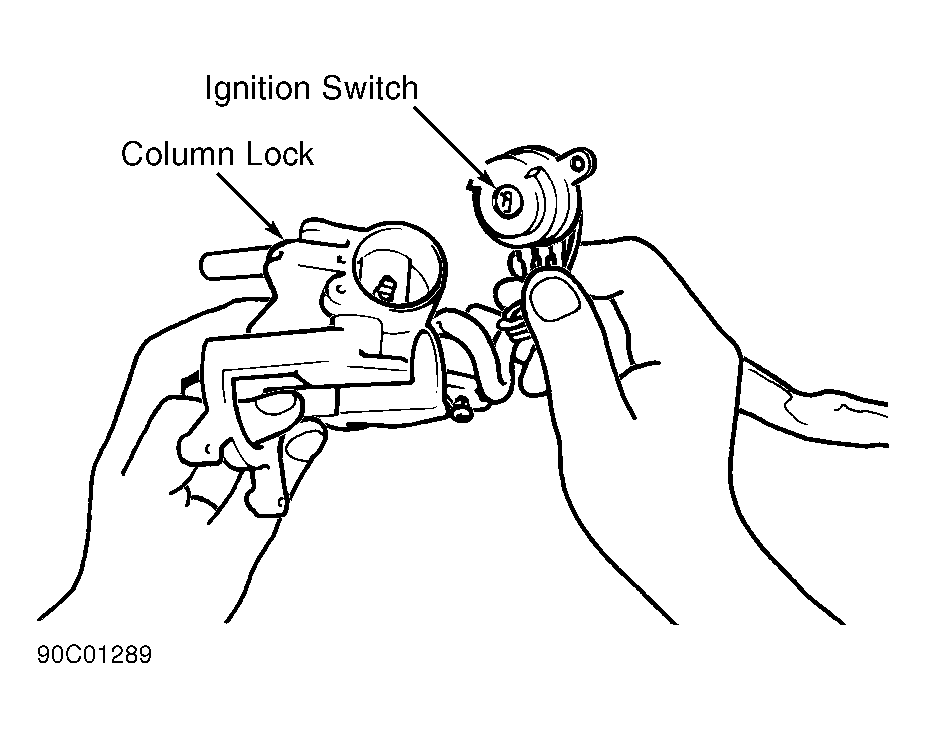

Fig 1: Removing Ignition Switch From Column Lock

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Removing Shear Bolts From Column Lock

Courtesy of SUZUKI OF AMERICA CORP.
