Ignition Switch & Column Lock: Installation

WARNING: This page is about a different car, the 1993 Suzuki Swift. However, it is still accessible from the selected car via links, so may be relevant.

Line up oblong hole of steering shaft with center of steering column hole. Turn ignition to ACC or ON position and install steering lock assembly onto column.
Turn ignition key to LOCK position and remove key. Align hub on lock with oblong hole of steering shaft and rotate shaft to ensure steering shaft is locked. SeeFig 1 and Fig 2 .
Install 2 NEW shear bolts. Tighten each bolt until head breaks off. Turn ignition key to ACC or ON position and rotate steering shaft, ensuring smooth movement. Check lock for proper operation.
Install steering wheel and steering column. See REMOVAL & INSTALLATION in STEERING COLUMN article in STEERING section.

Fig 1: Installing Column Lock With New Shear Bolts

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Aligning Column Lock & Steering Shaft

Courtesy of SUZUKI OF AMERICA CORP.

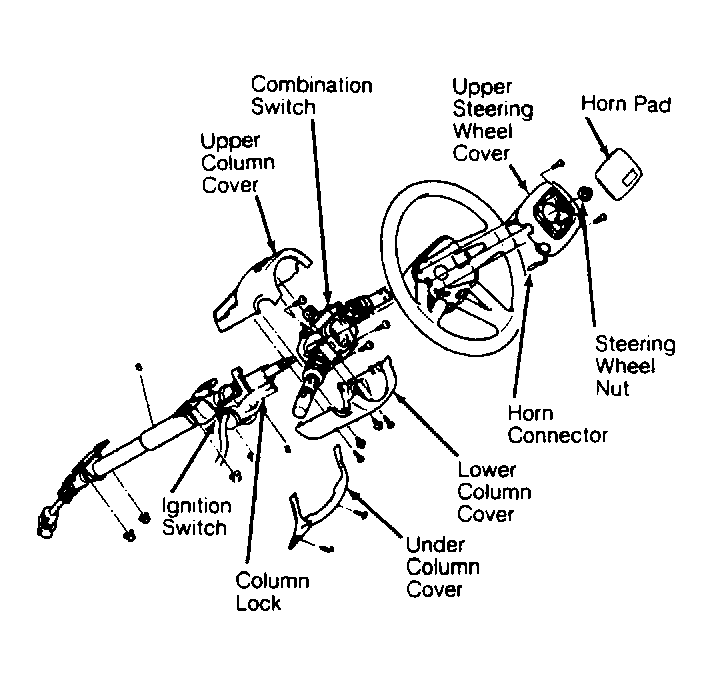

Fig 3: Exploded View Of Steering Column

Courtesy of SUZUKI OF AMERICA CORP.
