Wiring Diagrams

WARNING: This page is about a different car, the 1993 Suzuki Swift. However, it is still accessible from the selected car via links, so may be relevant.

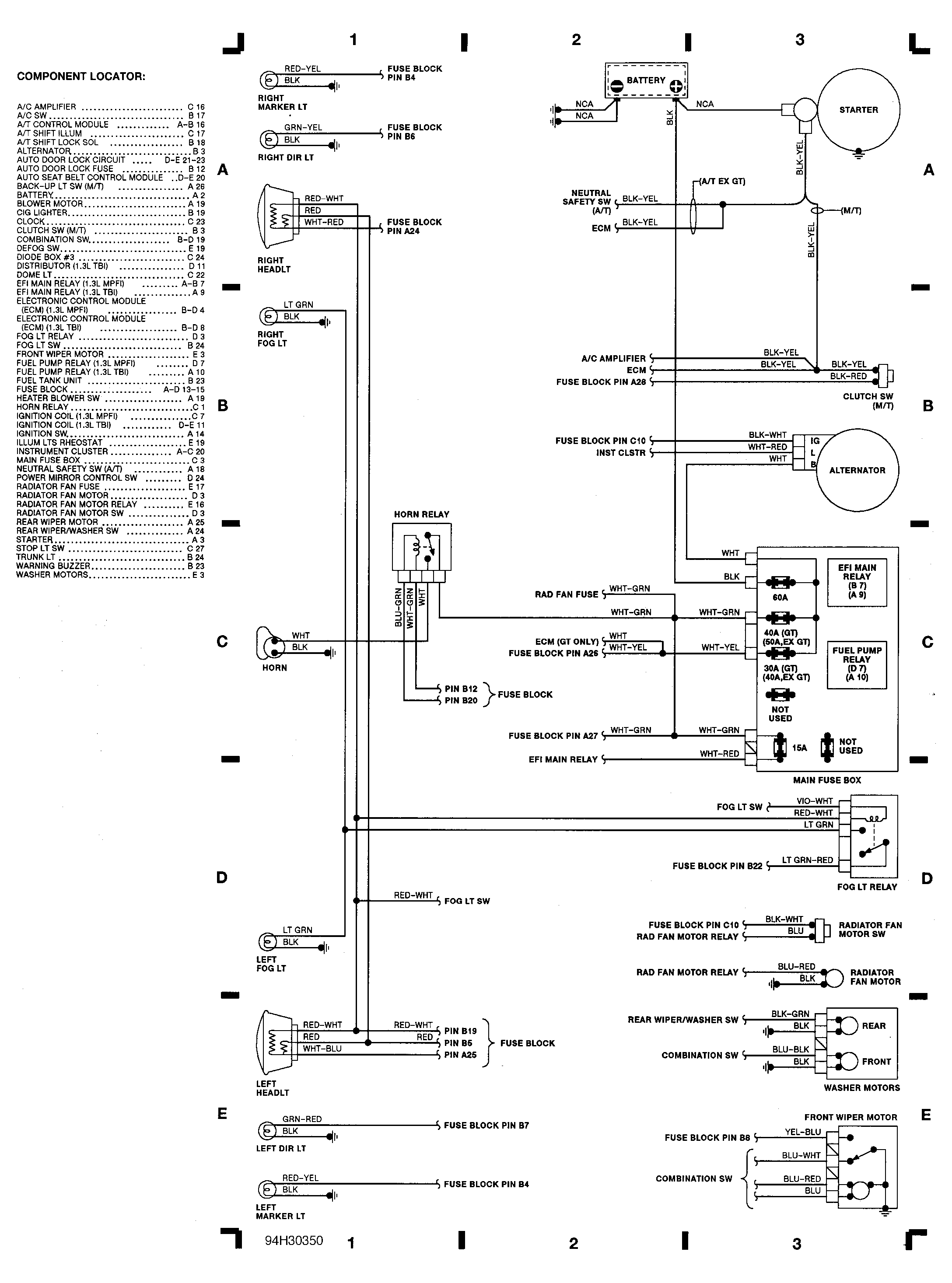

Fig 1: Headlights, Battery, Starter, Alternator (Grid 1-3)

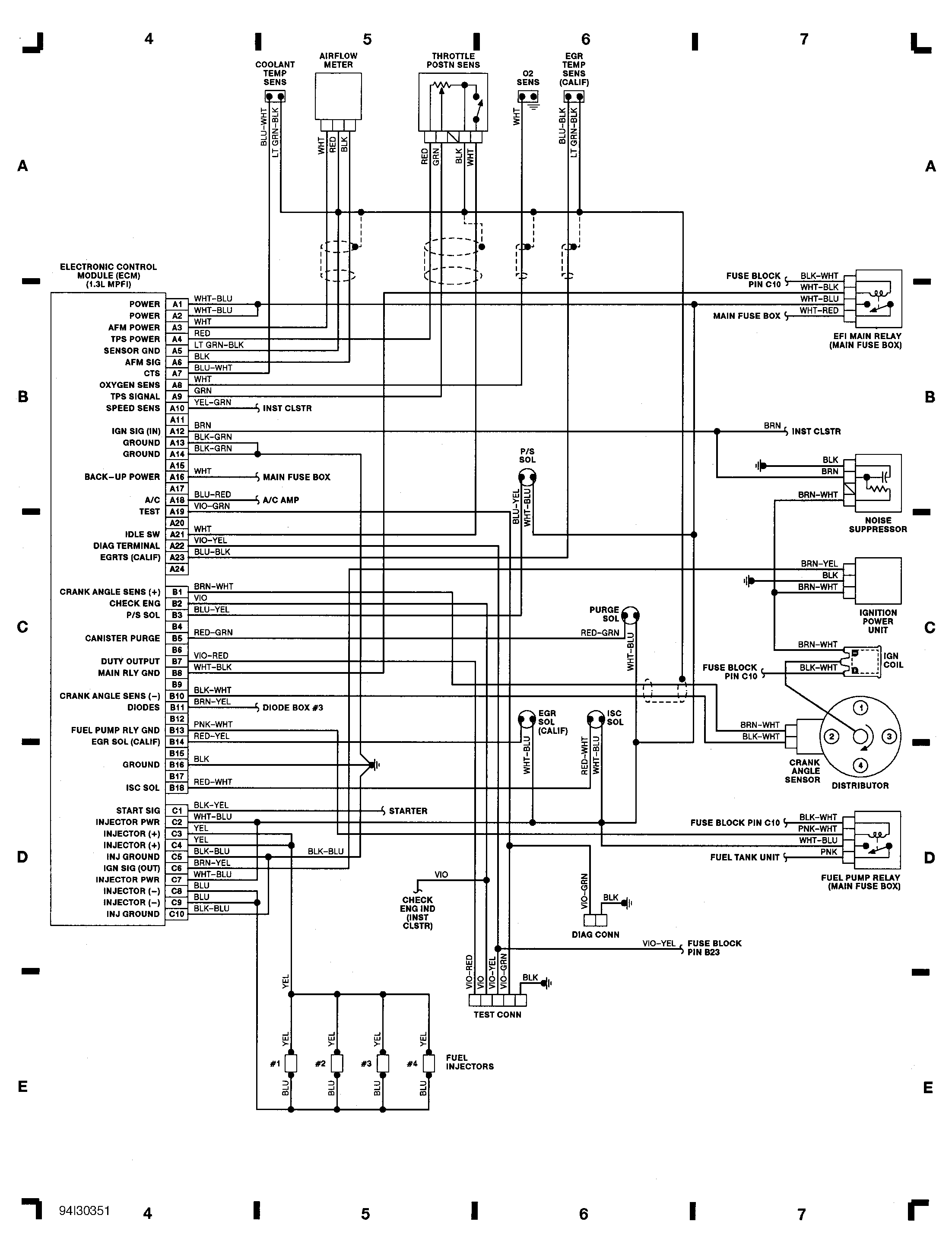

Fig 2: ECM (1.3L MPFI), Fuel Injectors, Airflow Meter (Grid 4-7)

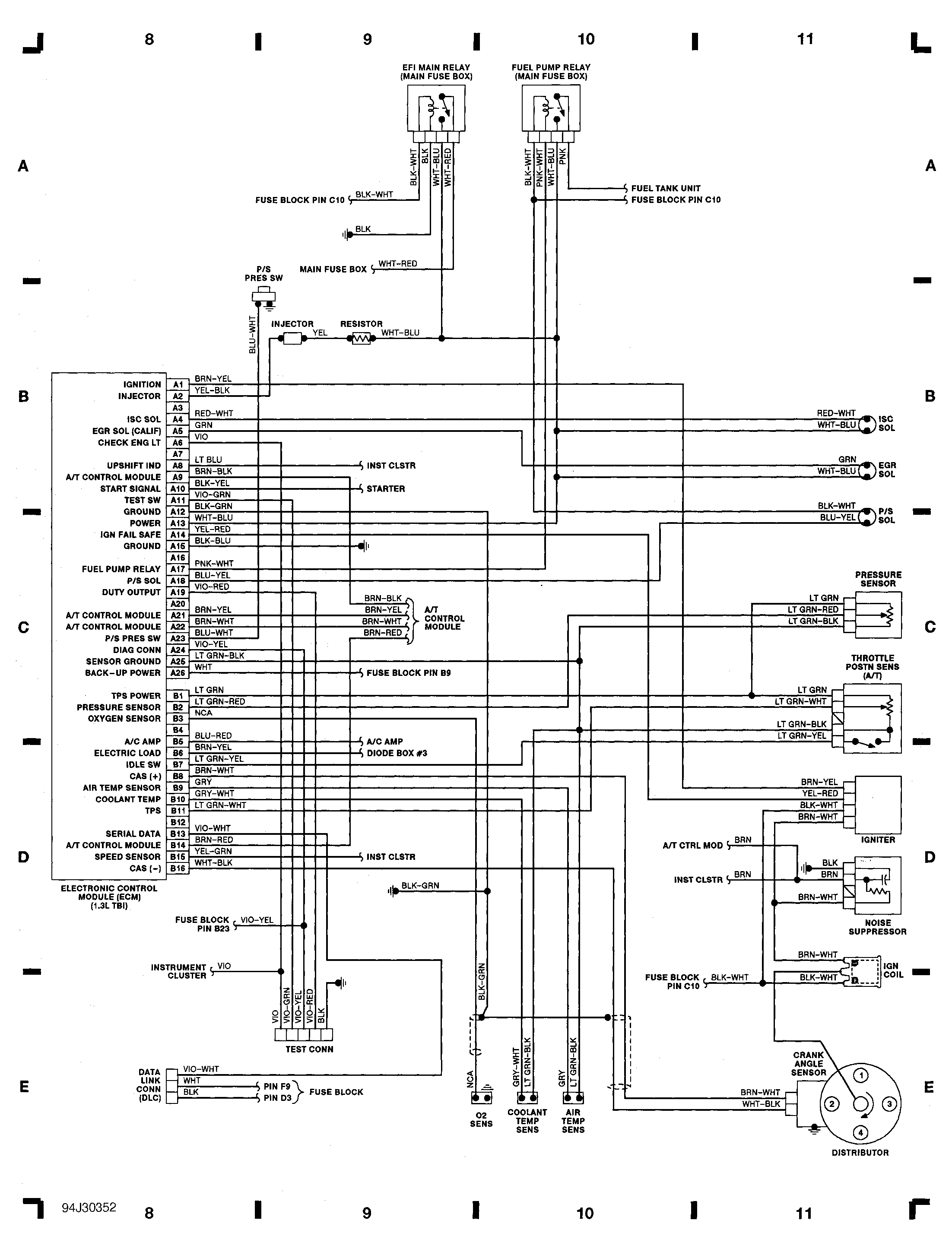

Fig 3: ECM (1.3L TBI), EFI Main Relay, Igniter (Grid 8-11)

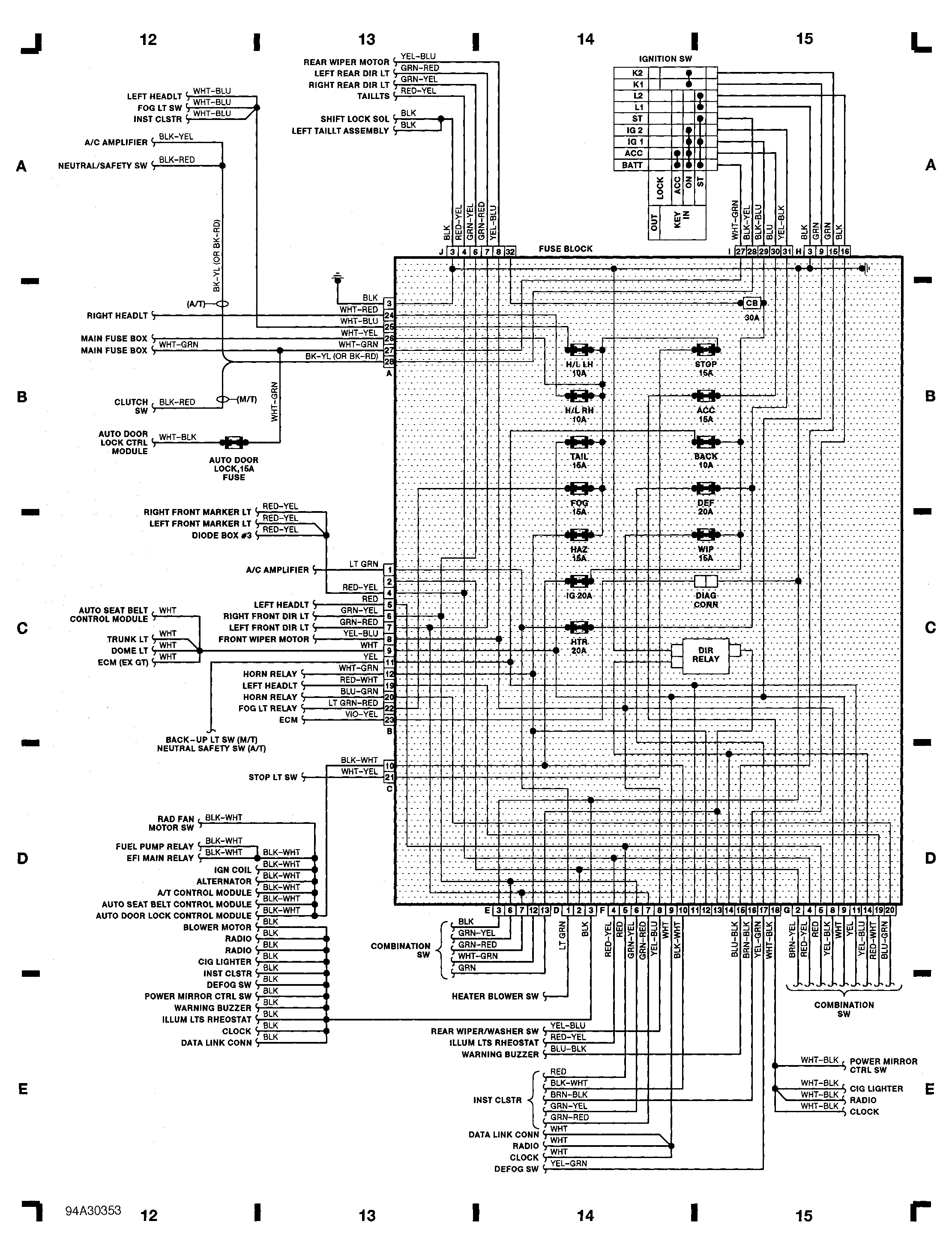

Fig 4: Fuse Block, Ignition Sw (Grid 12-15)

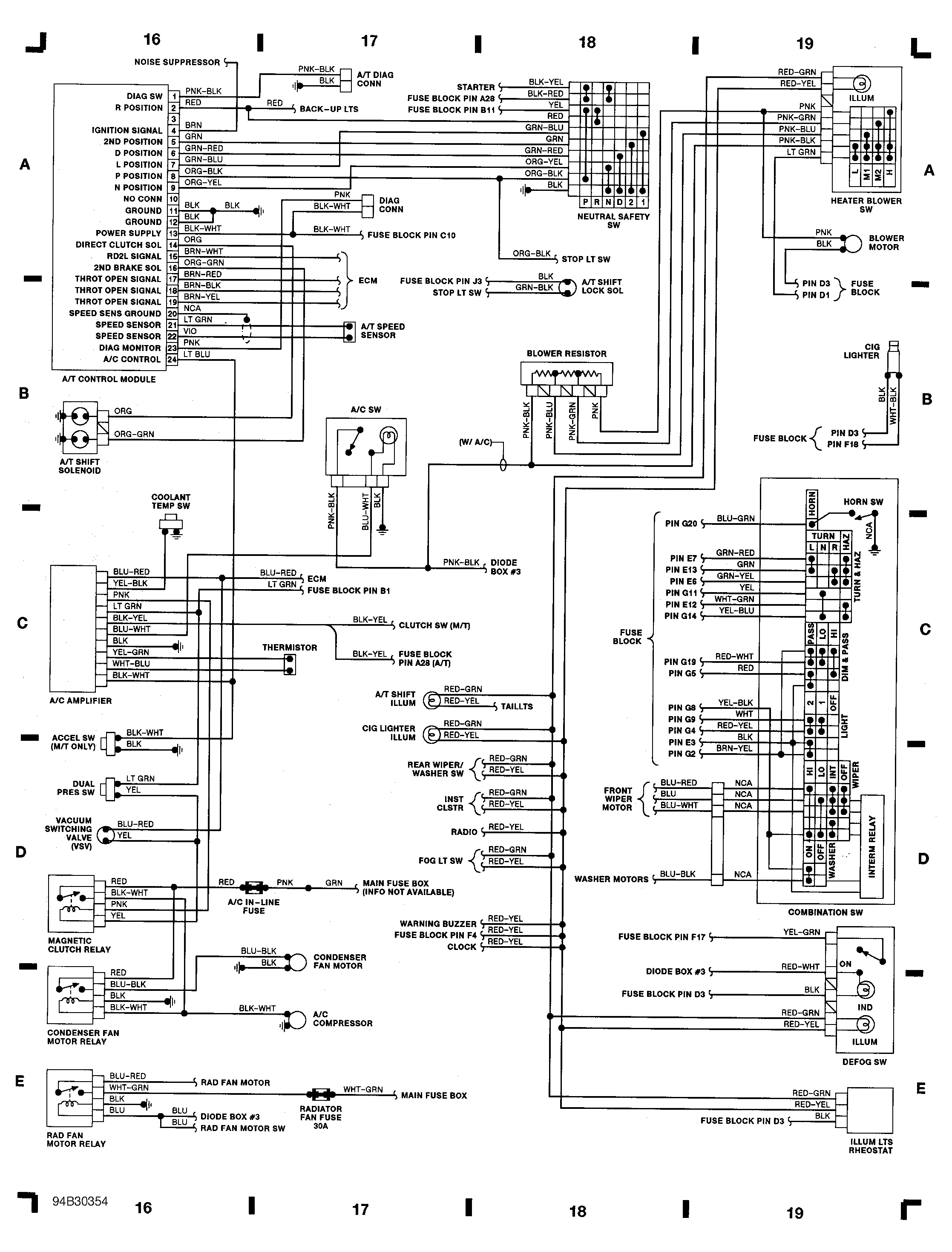

Fig 5: A/T Ctrl Mod, A/C Amp, Combo Sw, Heater/Blower (Grid 16-19)

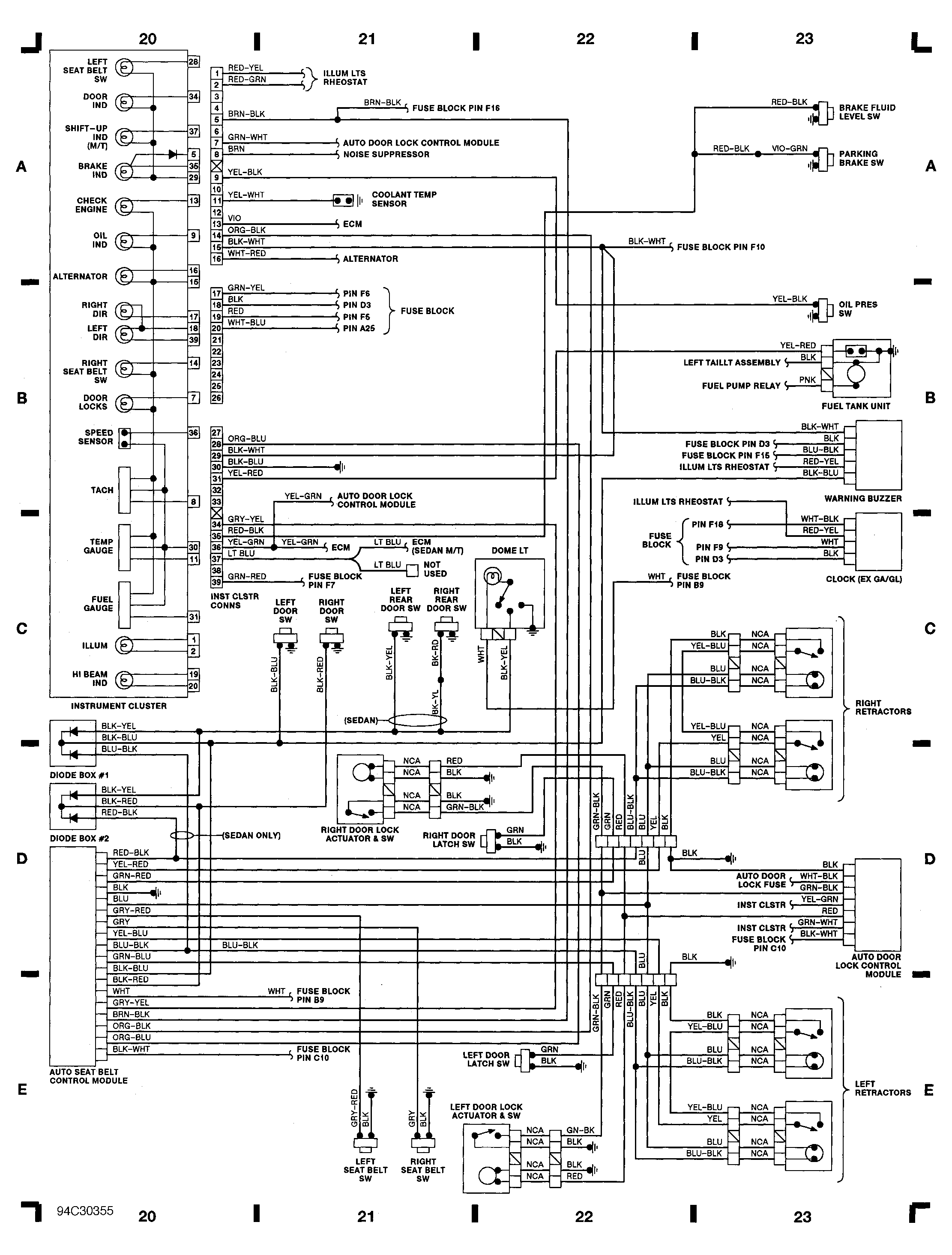

Fig 6: Instrument Clstr, Seat Belt Ctrl Mod, Clock (Grid 20-23)

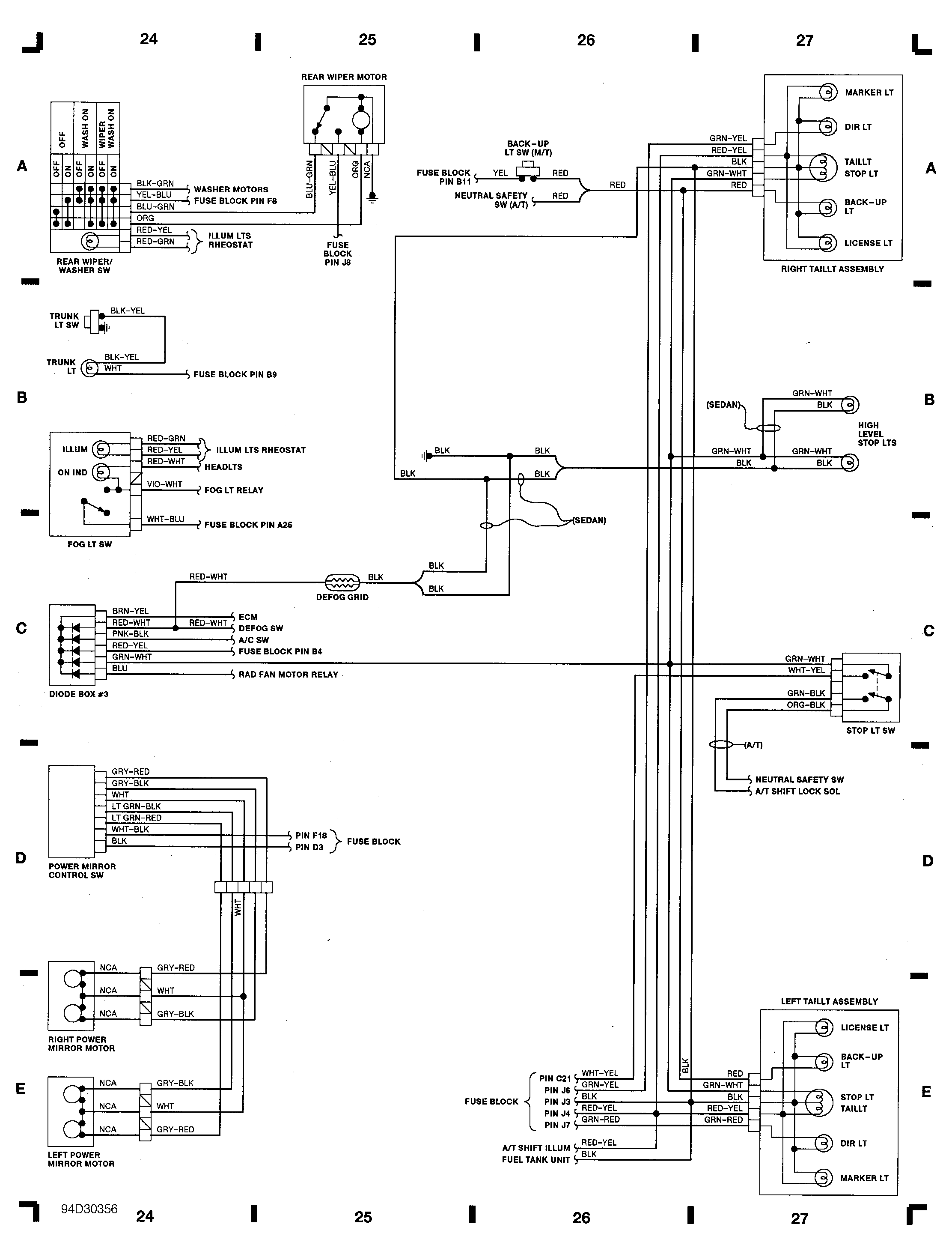

Fig 7: Taillights, Pwr Mirrors, Rear Wipers (Grid 24-27)
