Wiring Diagrams

WARNING: This page is about a different car, the 1993 Suzuki Samurai. However, it is still accessible from the selected car via links, so may be relevant.

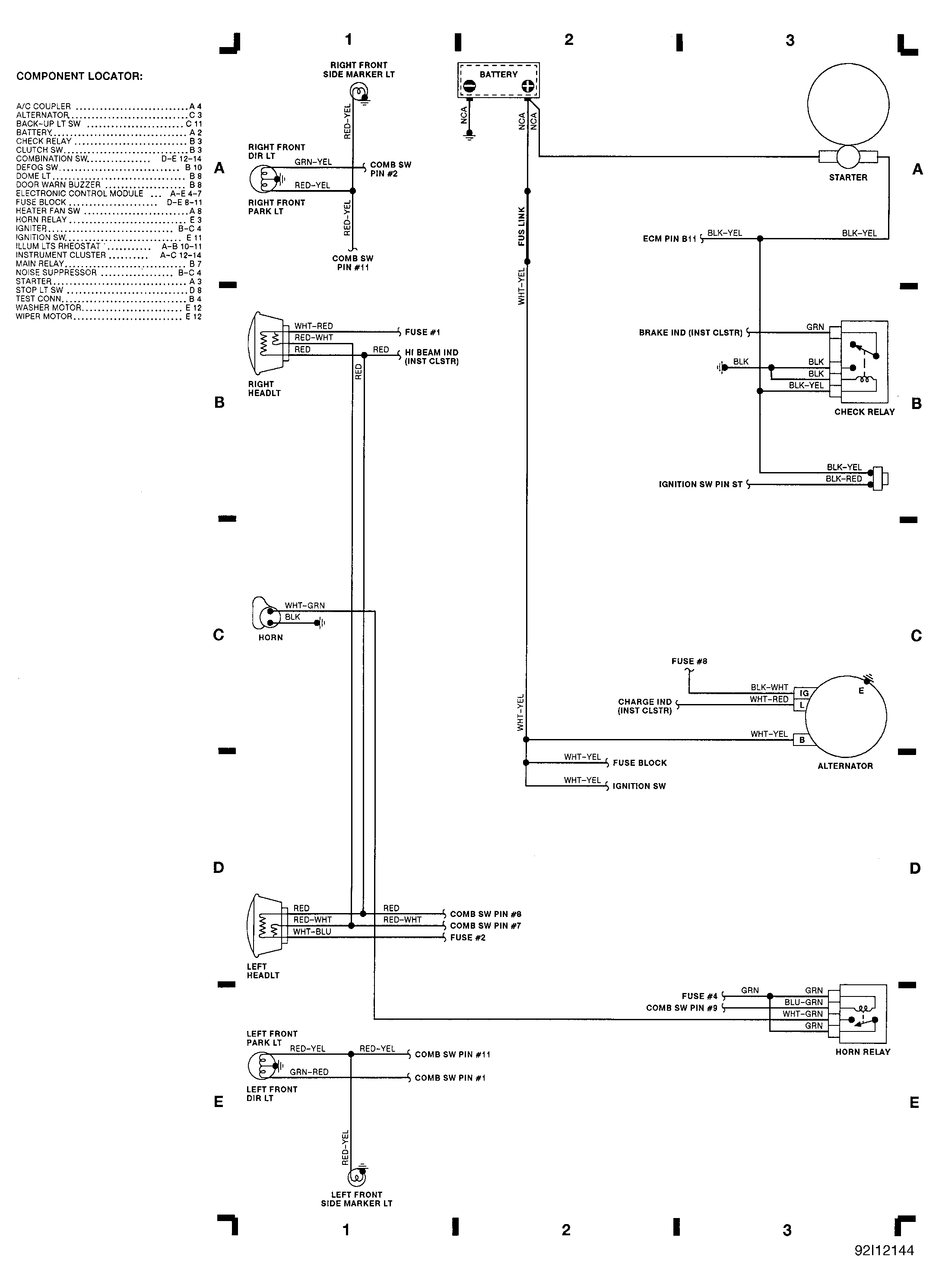

Fig 1: Engine Compartment & Headlights (Grid 1-3)

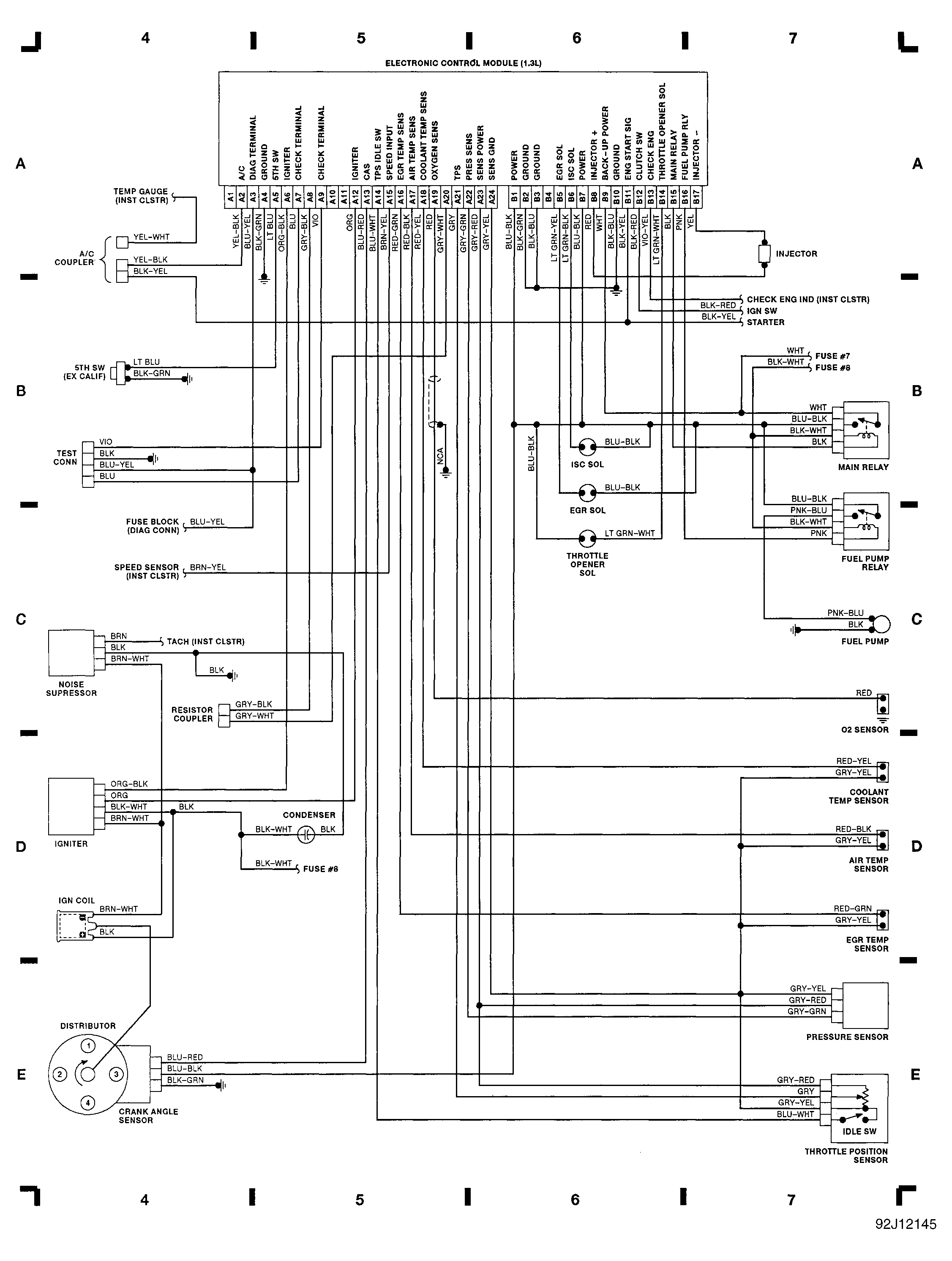

Fig 2: Computer Engine Control (Grid 4-7)

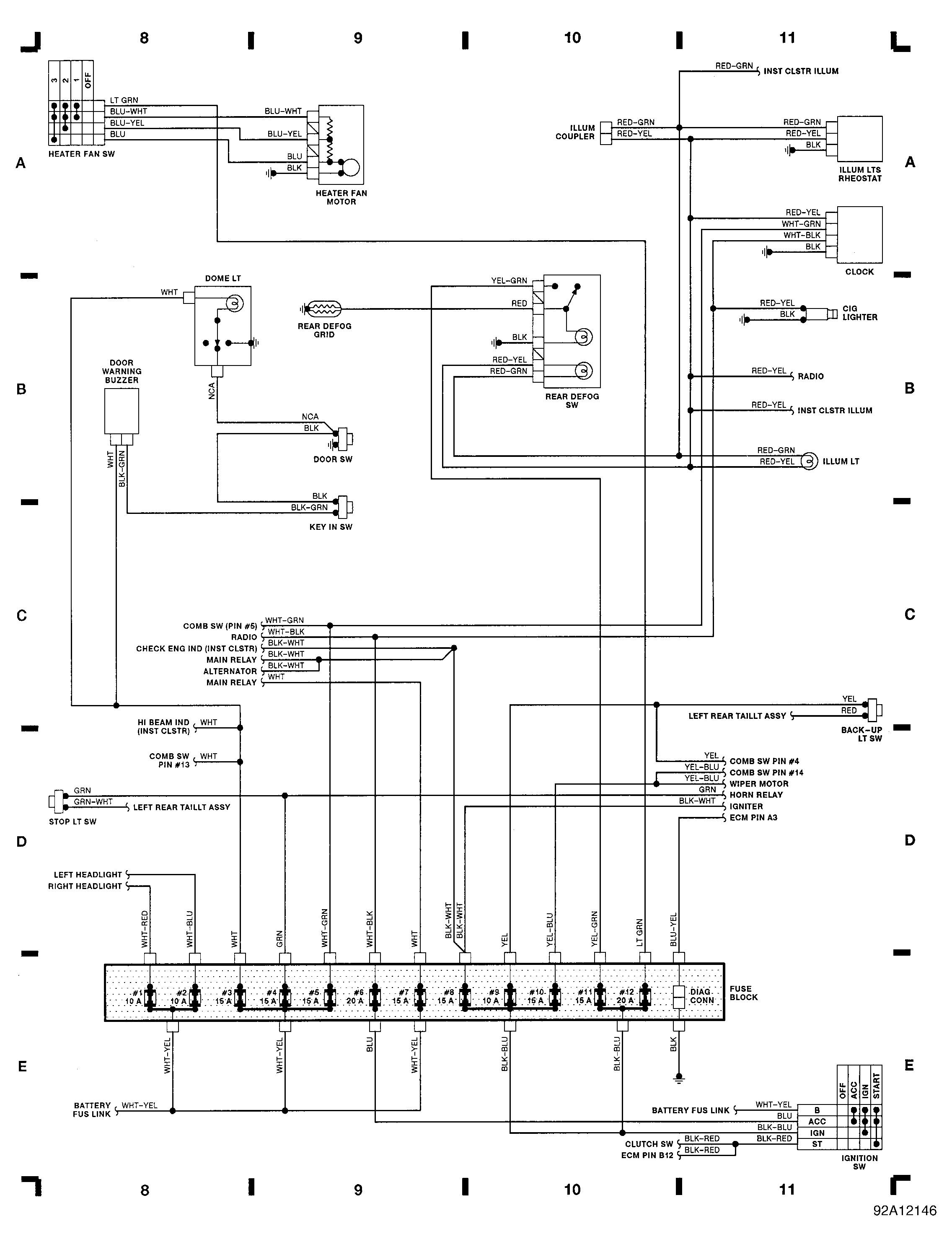

Fig 3: Fuse Block, Ign Sw (Grid 8-11)

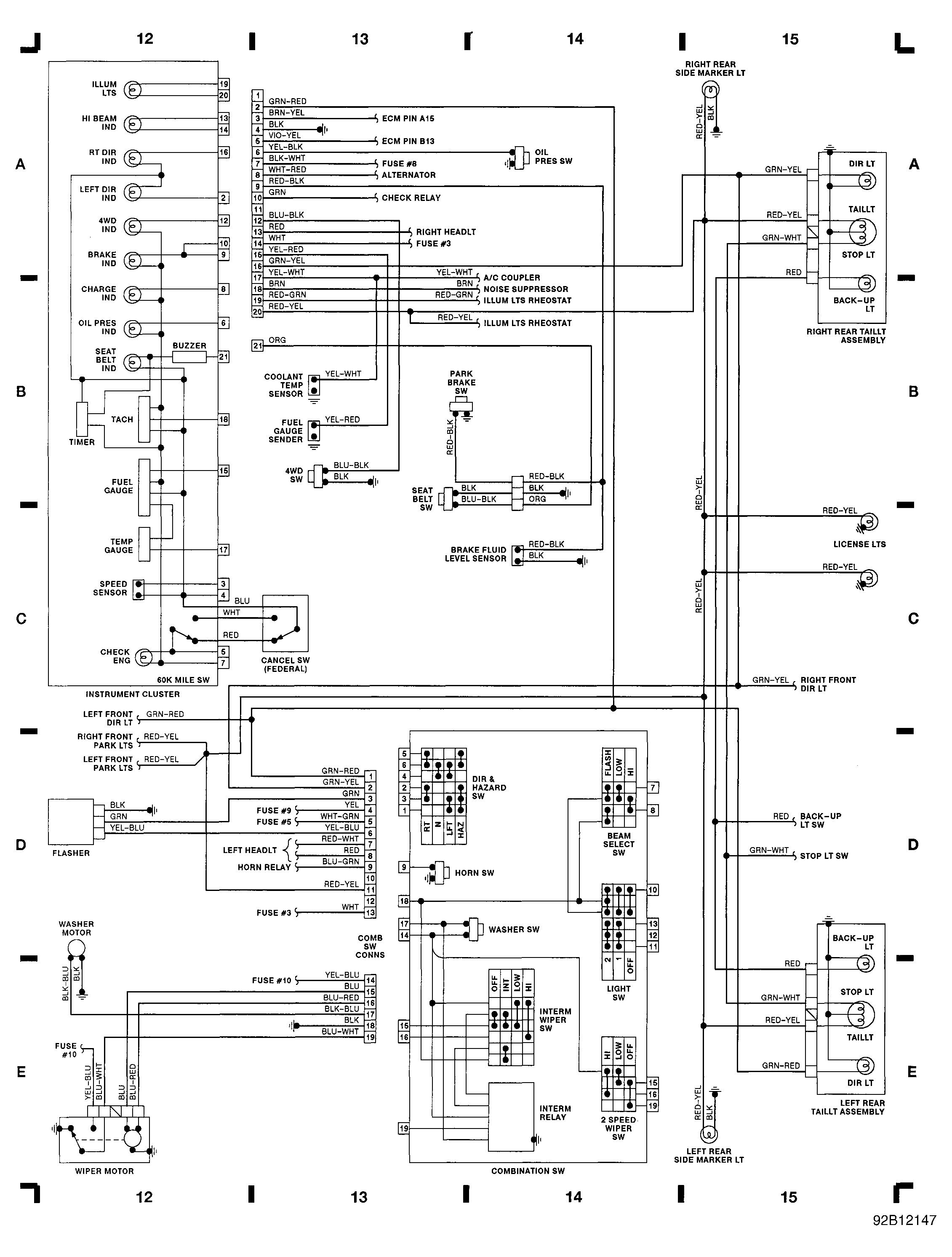

Fig 4: Instrument Cluster, Comb Switch, Taillights (Grid 12-15)
