Chart A-3 - Check Engine Light Stays On - Won't Flash

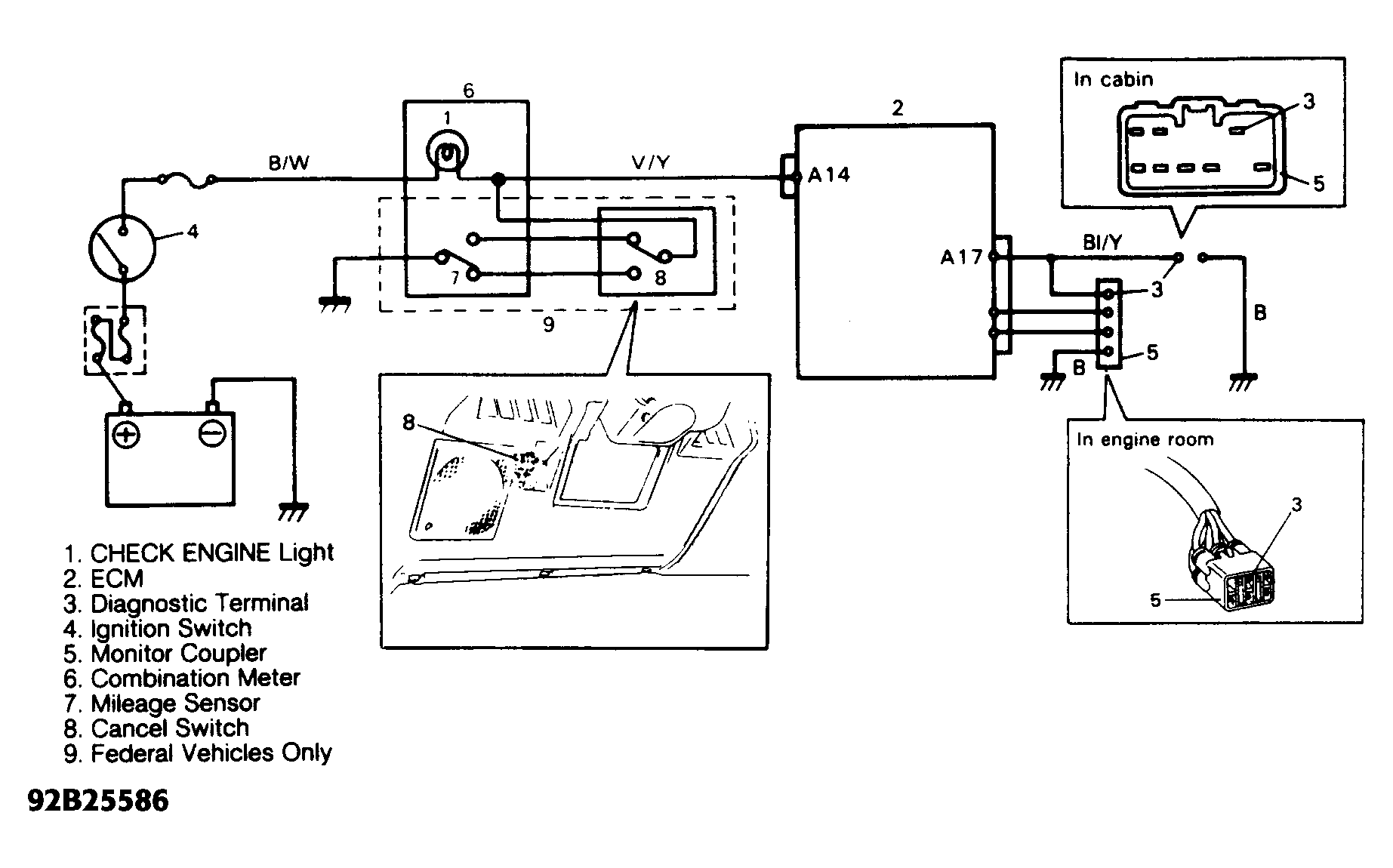

Fig 1: Chart A-3 - Schematic

Courtesy of SUZUKI OF AMERICA CORP.

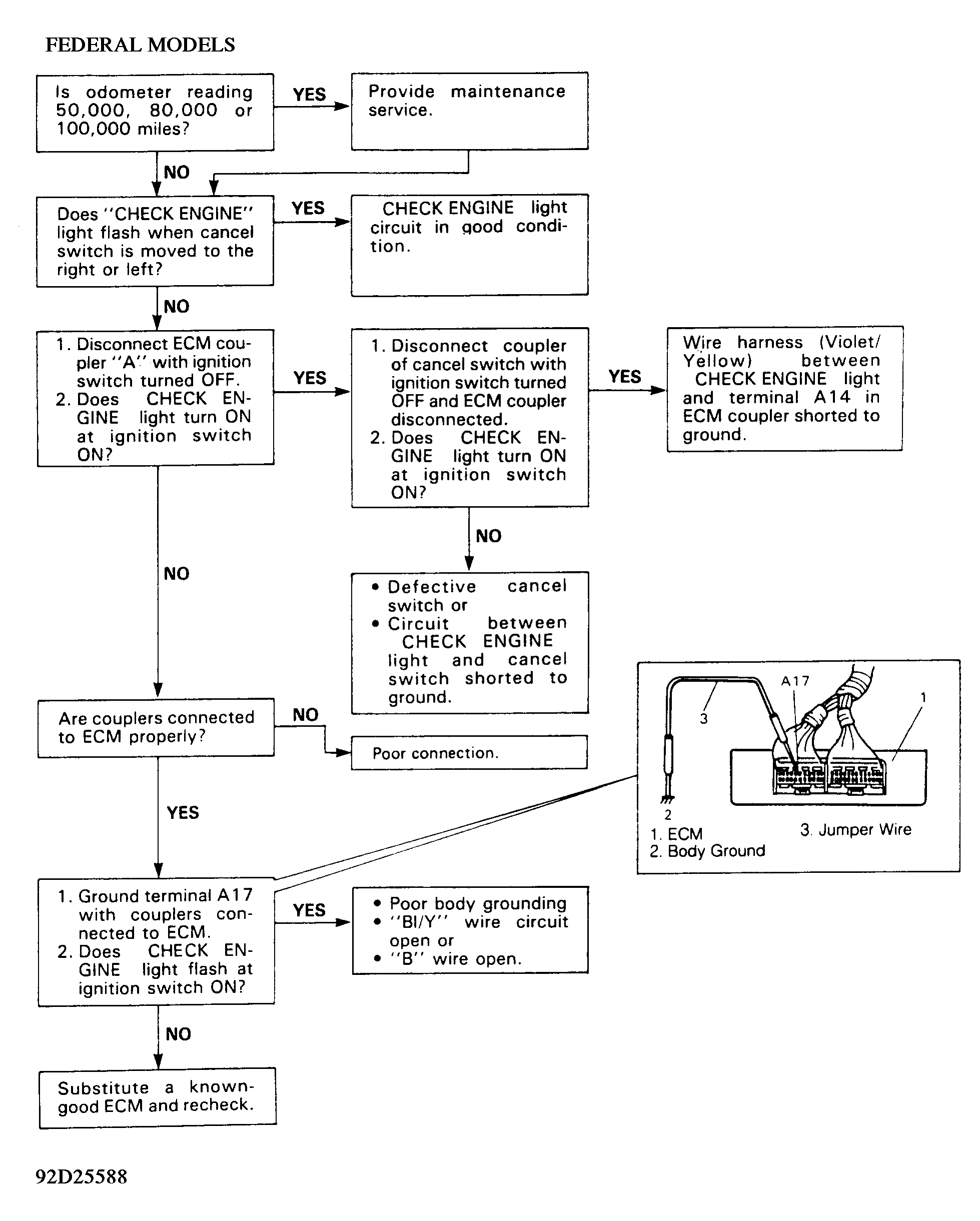

Fig 2: Chart A-3 - Diagnostic Flowchart (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

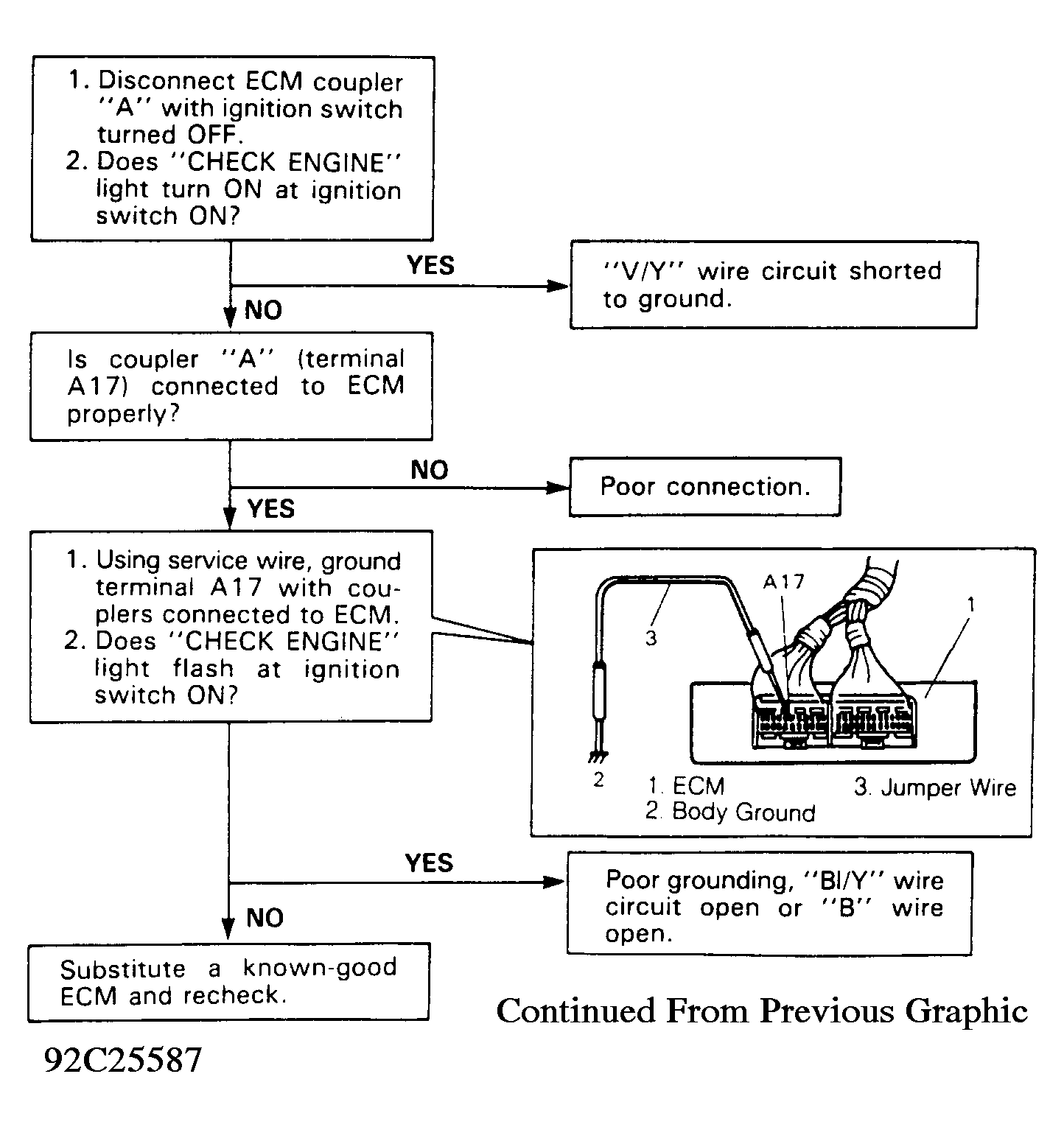

Fig 3: Chart A-3 - Diagnostic Flowchart (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
